Torque Specifications/Sequence

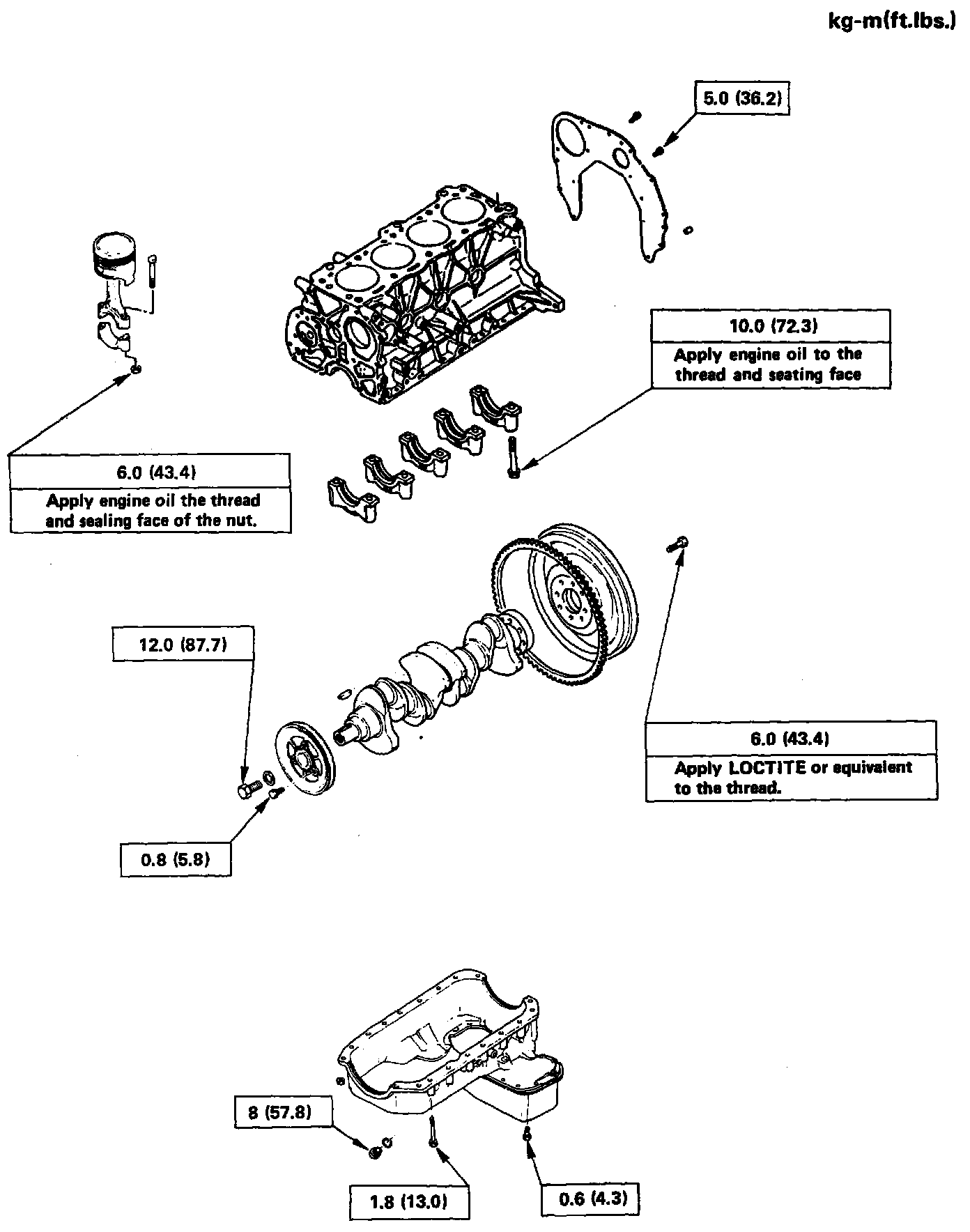

Torque Specifications:




Crankshaft Main Bearing Cap Bolts Removal Sequence:




Crankshaft Main Bearing Cap Bolts Torque Sequence:
