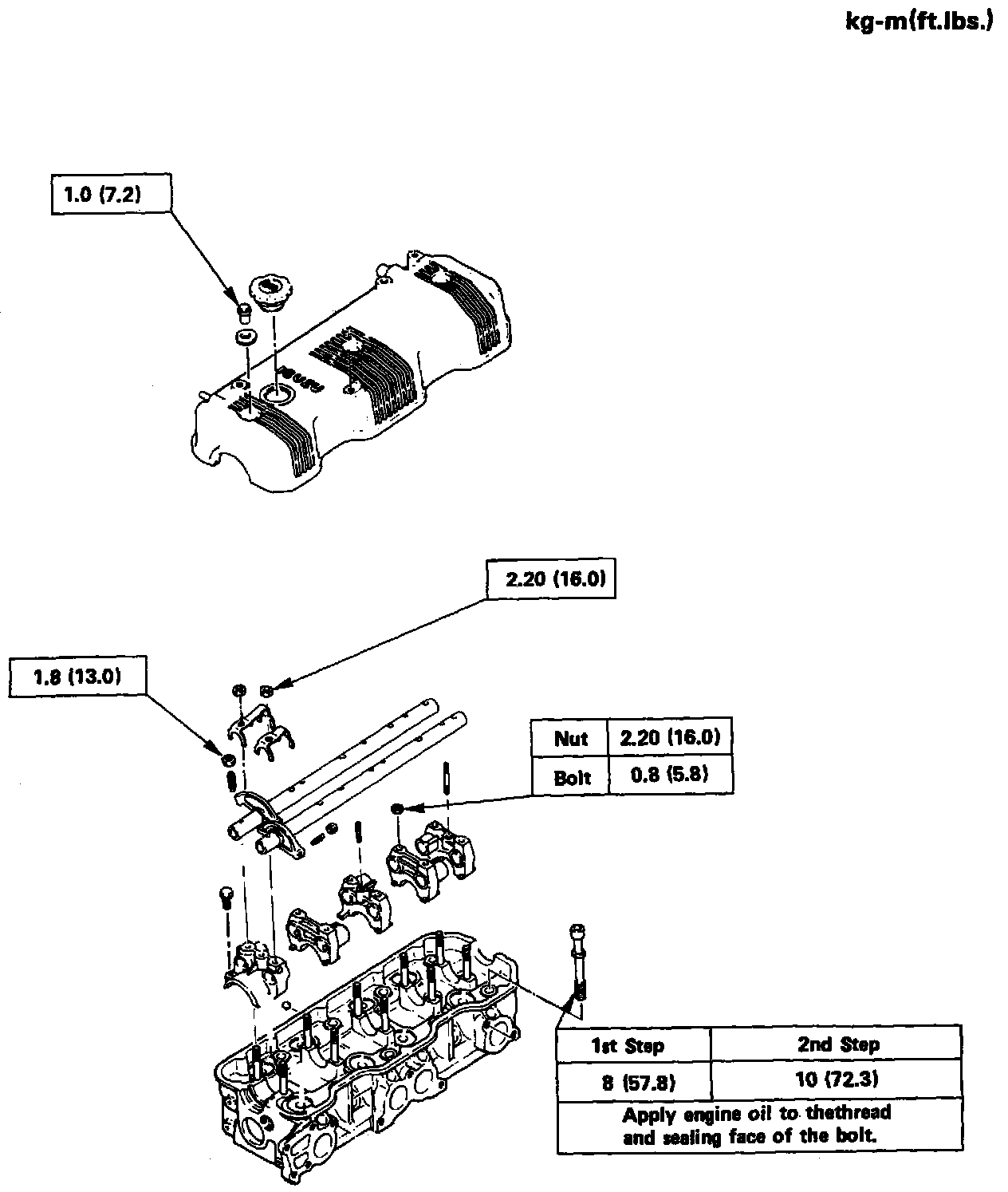

Torque Specifications










Fig. 10 Cylinder head tightening sequence:




Fig. 11 Rocker arm tightening sequence:
