Control Lever Position Sensor

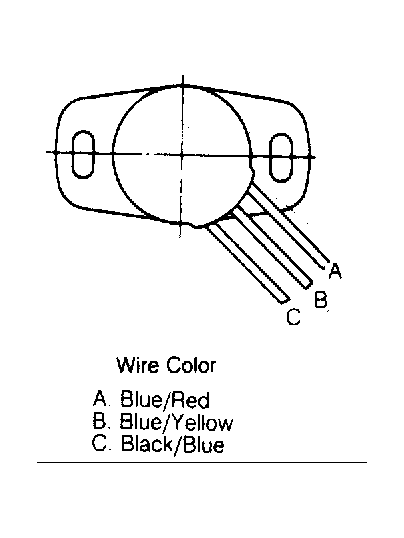

Connect voltmeter to Blue/Yellow (positive) and Blue/Red (negative) terminals. See Fig 1 . Do not disconnect control lever position sensor connector. Set clearance between control level and idle stopper bolt to .27" (7 mm). Start engine. Control lever position sensor is okay if voltage range is 3.3-4.4 volts.
