Cruise Control Module: Testing and Inspection

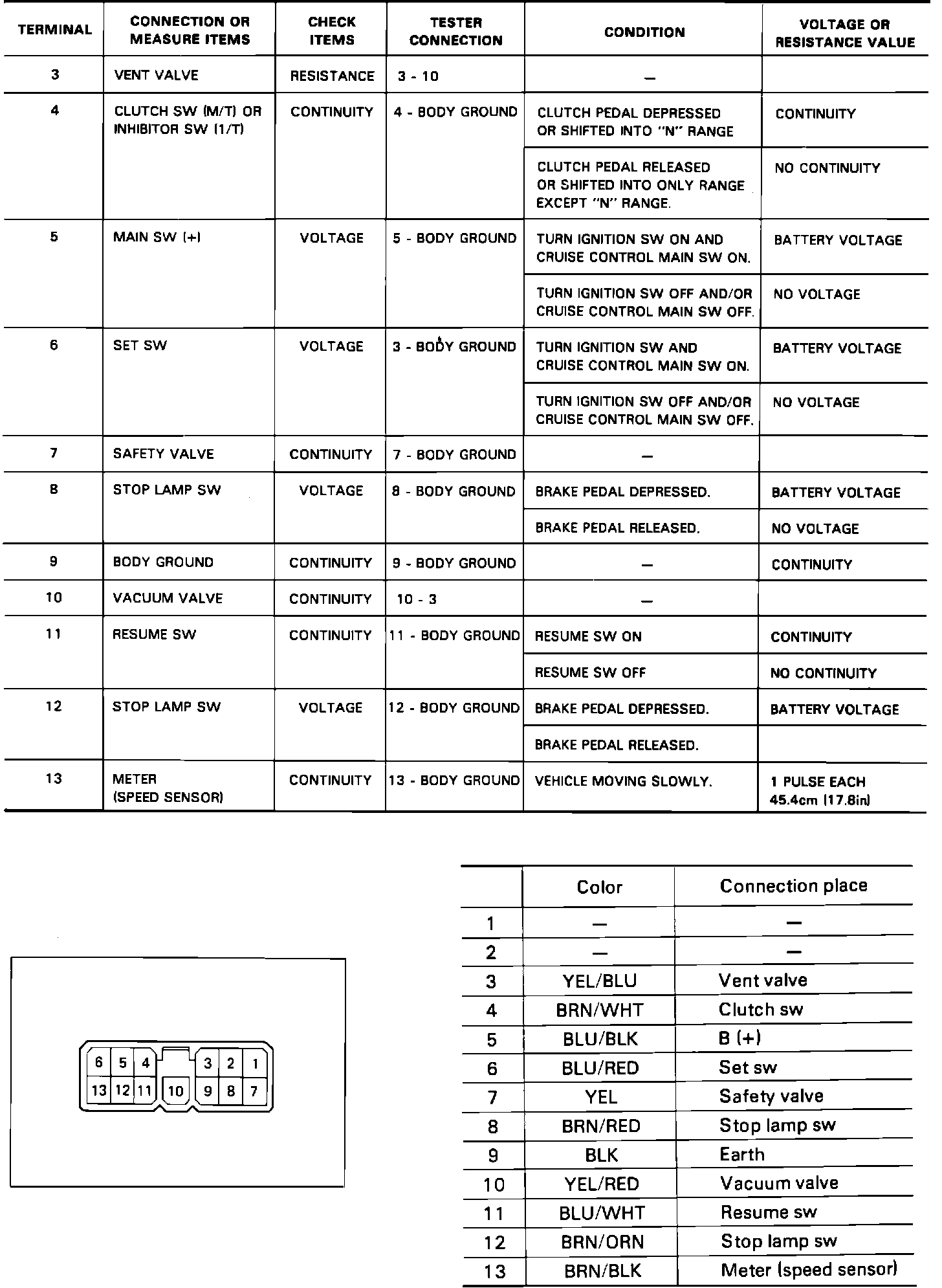

Fig. 1 Testing speed controller.:

1. Disconnect the cruise controller connector and inspect harness side connector.
2. Inspect with ignition switch and main cruise switch turned to the On position.
3. Check voltage and resistance between connectors as shown in Fig. 1.
