Speed Control Power Source Check

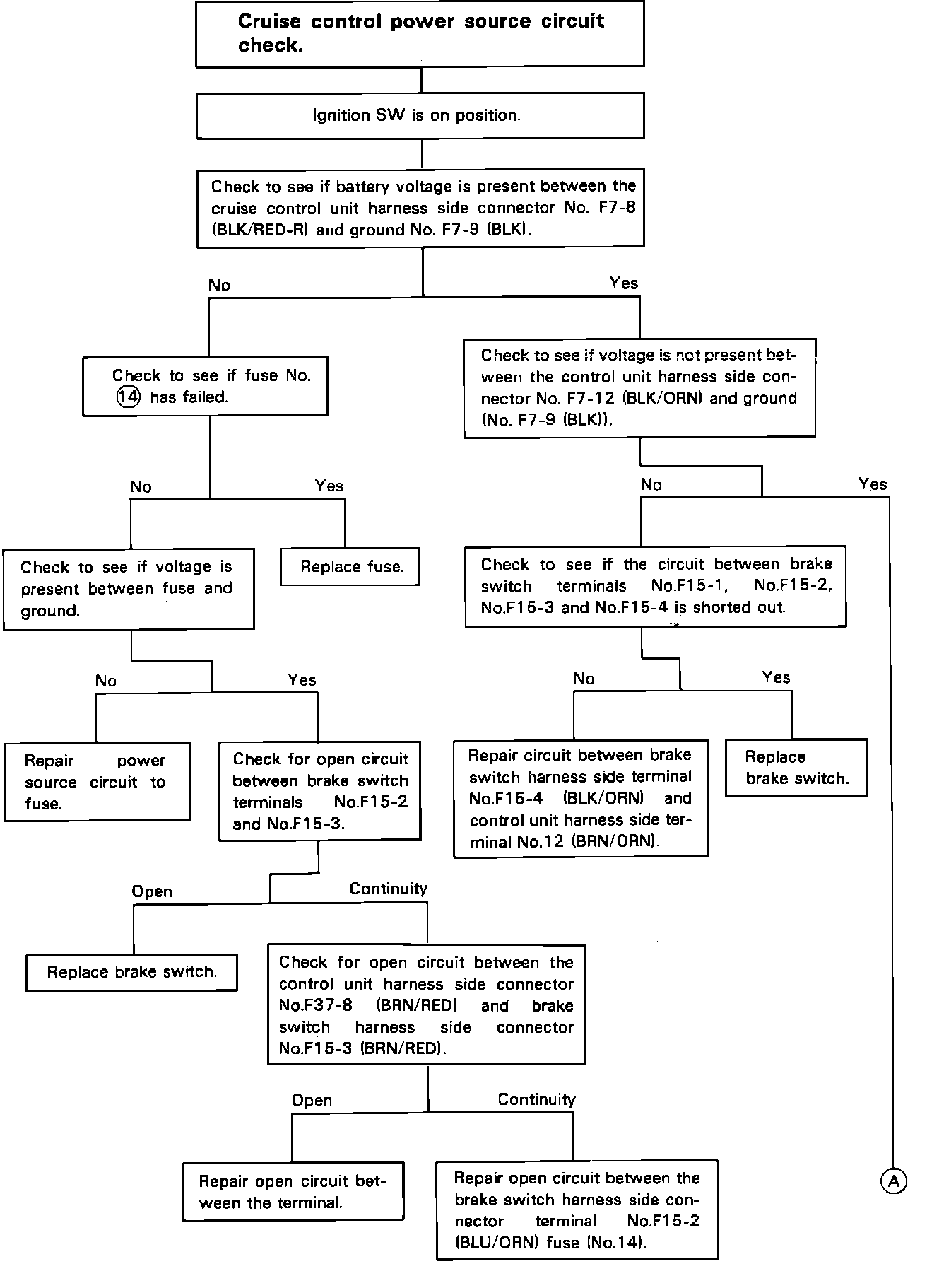

Fig. 19 Speed control power source check (Part 1 of 2).:

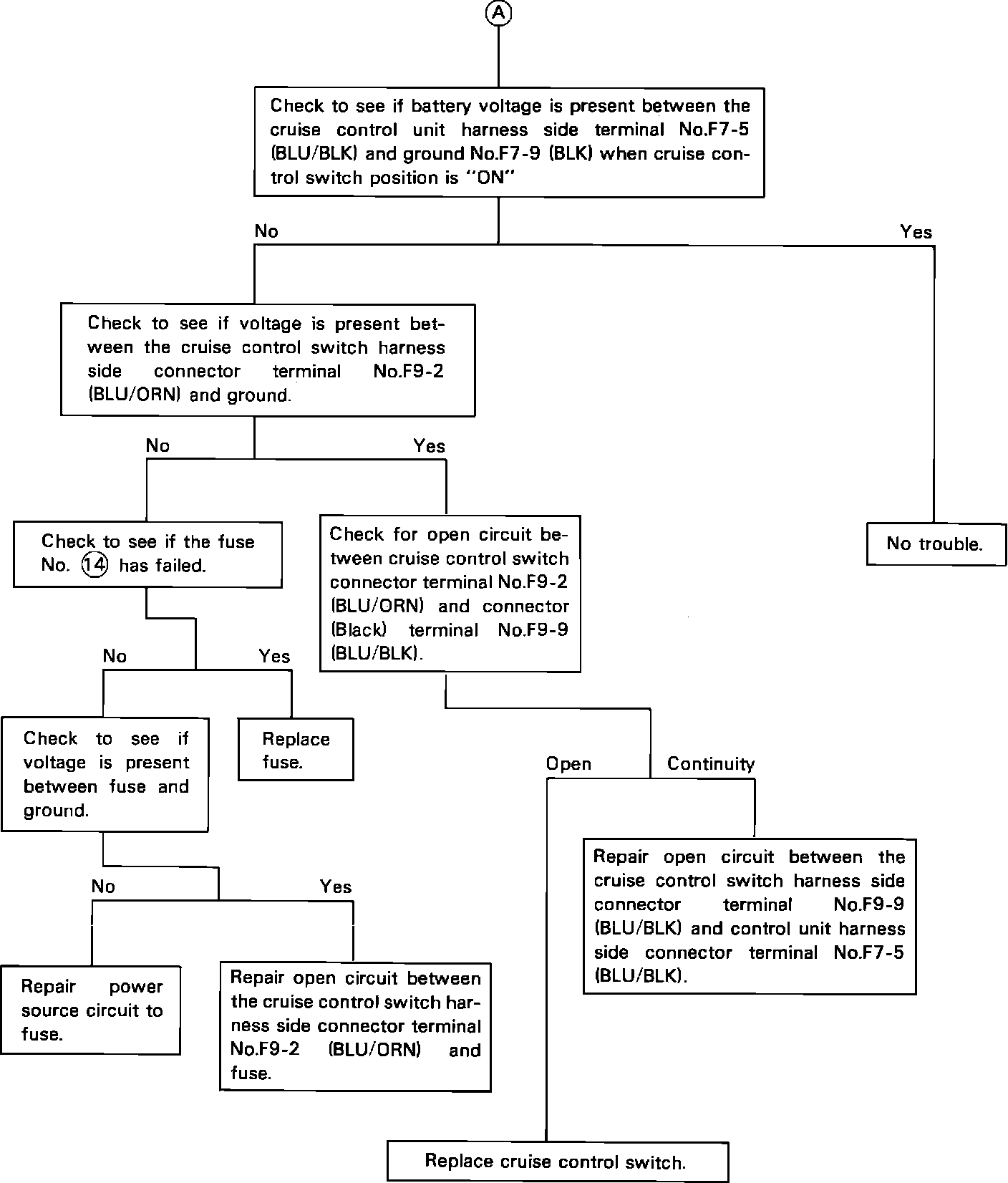

Fig. 19 Speed control power source check (Part 2 of 2).:
