Code 13 - Oxygen (O2) Sensor Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 13 - Oxygen (O2) Sensor Circuit

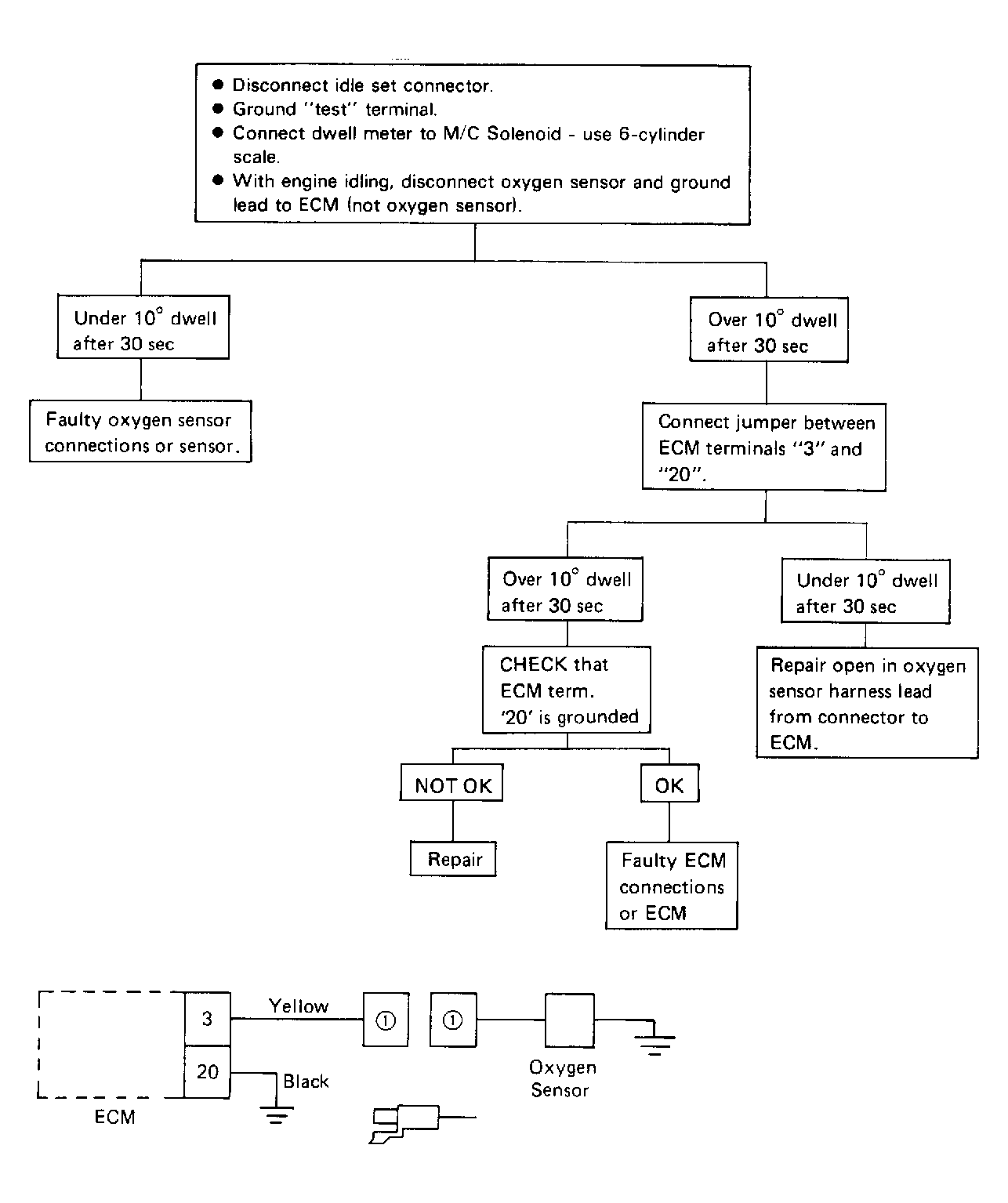

Fig 1: Flow Chart - Code 13, Oxygen Sensor Circuit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
