Code 35 - Power Transistor Circuit

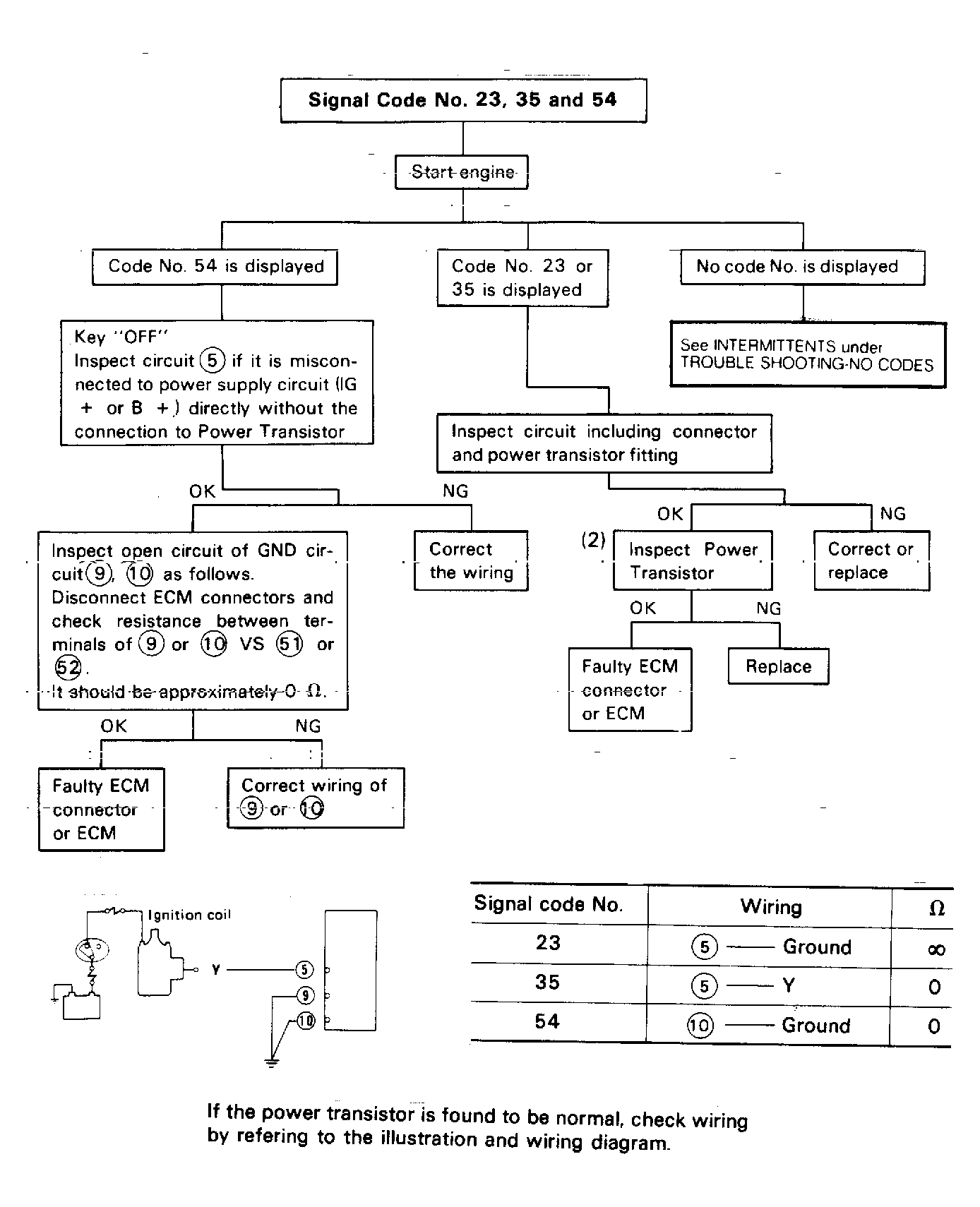

Fig 1: Flow Chart - Code 35, Power Transistor Circuit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
