Transaxle Reassembly: Notes

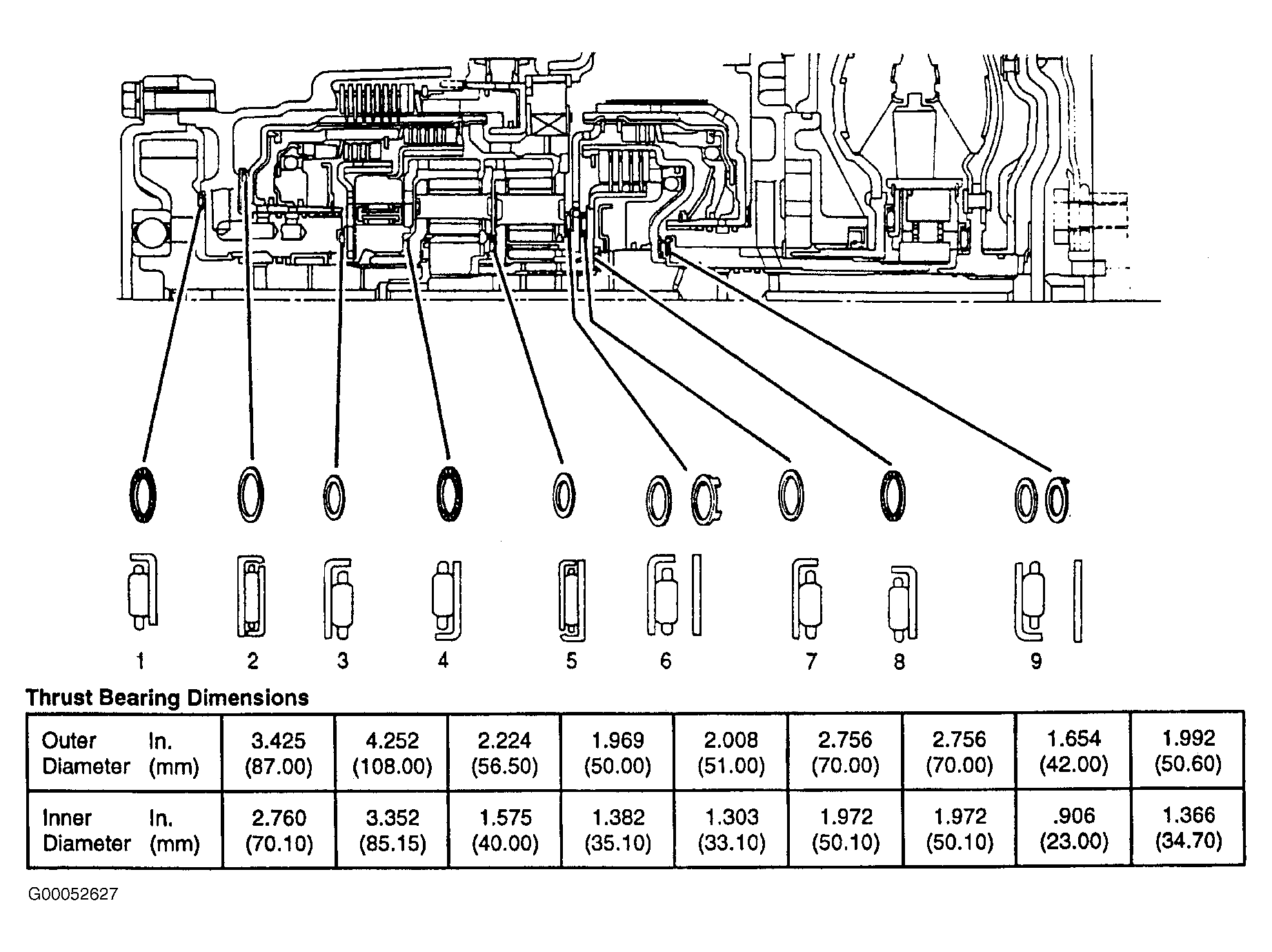

NOTE: When installing component parts and thrust bearings, note location. See Figure .
