Code 31 - Ignition Reference Signal

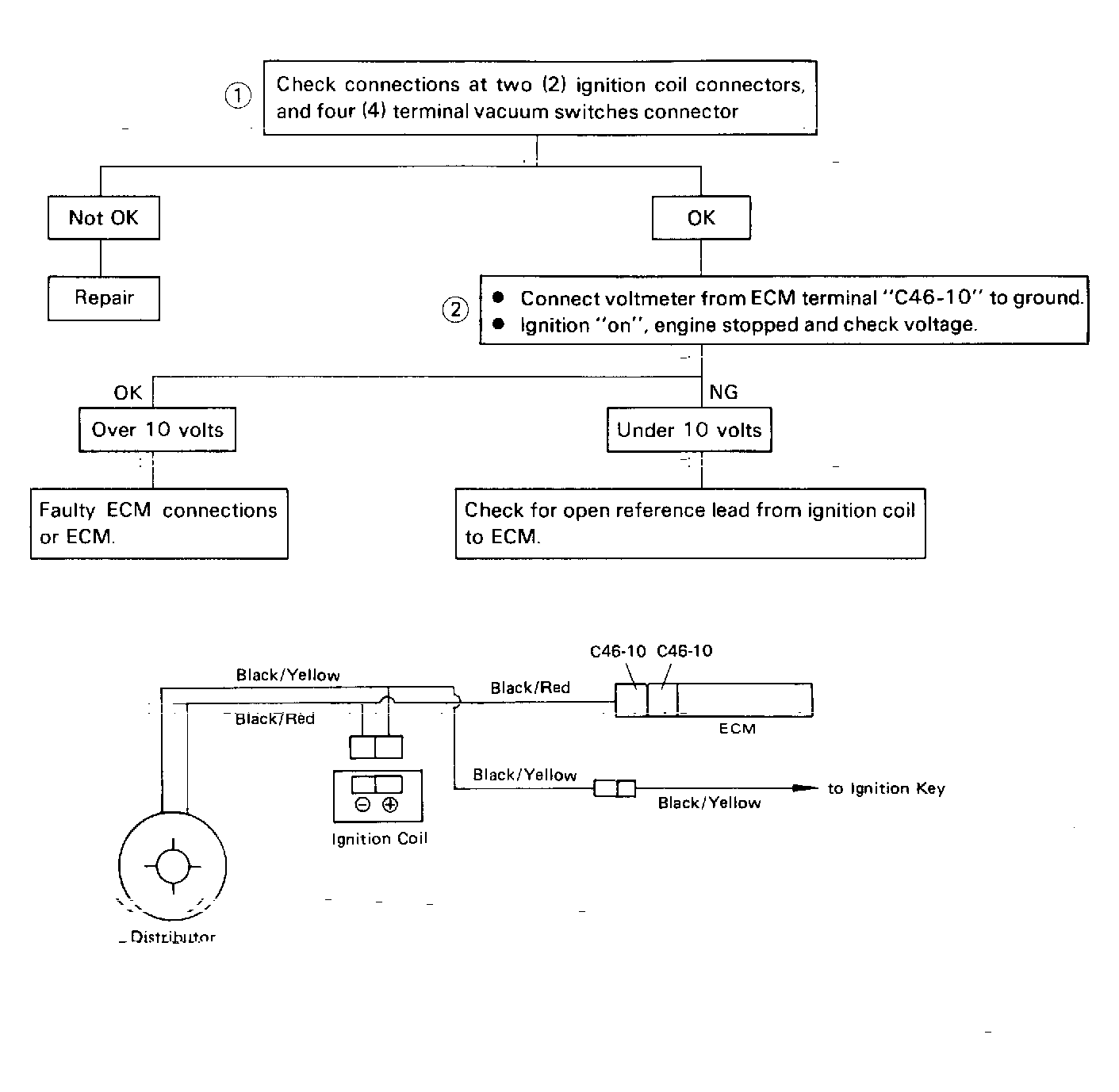

Fig 1: Flow Chart - Code 31, Ignition Reference Signal
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
