Code 44, 45 - Oxygen Sensor-Lean/Rich Fuel Mixture: Notes

Fig 1: Code No. 44, 45 Schematic, O2 Sensor-Lean/Rich Fuel Mixture

Courtesy of ISUZU MOTOR CO.

Fig 2: Code No. 44, 45 Schematic, O2 Sensor-Lean/Rich Fuel Mixture

Courtesy of ISUZU MOTOR CO.

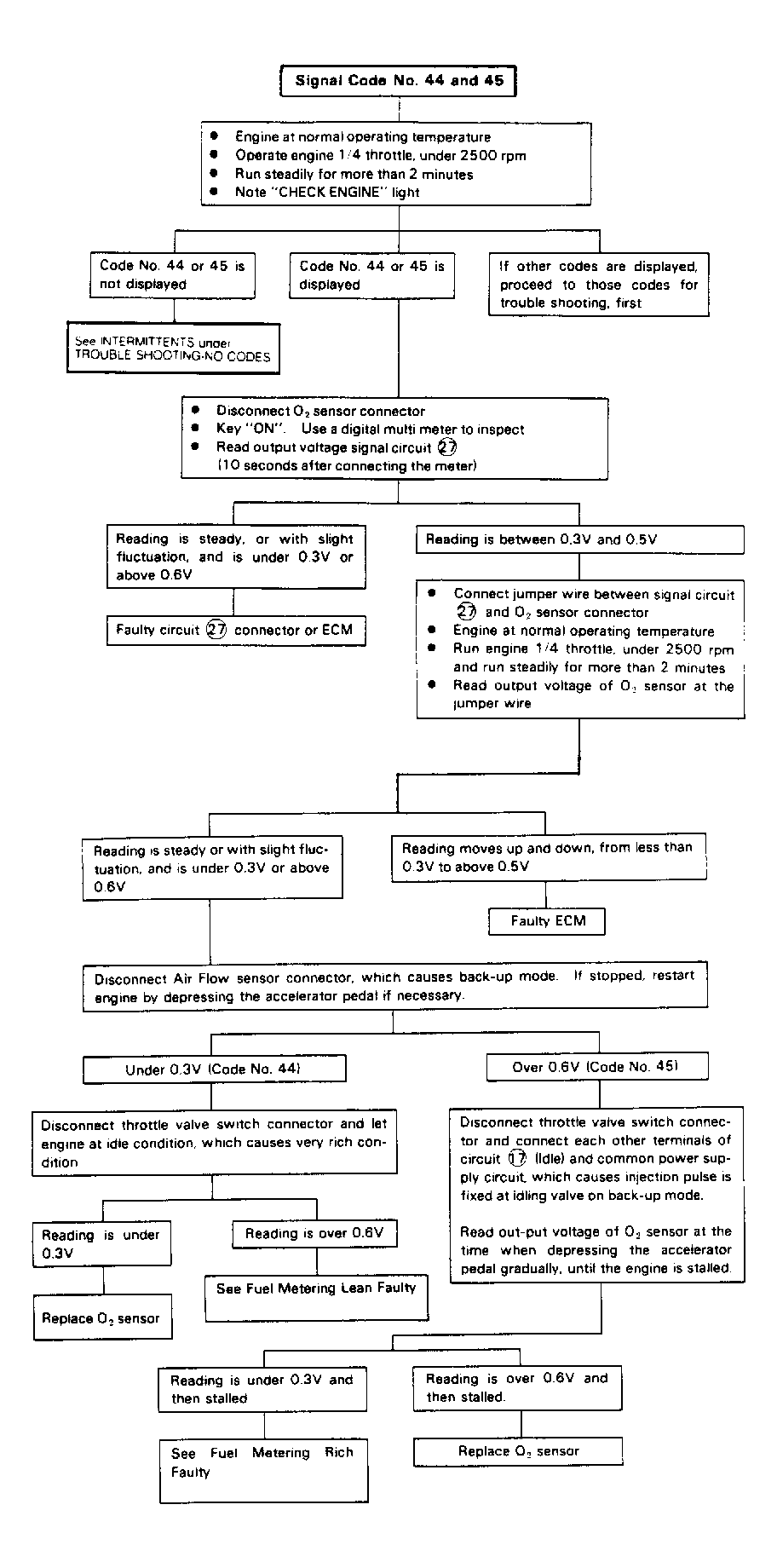

Fig 3: Code No. 44, 45 Flow Chart, O2 Sensor-Lean/Rich Fuel Mixture

Courtesy of ISUZU MOTOR CO.
