Test A: Cruise Control Power Source Circuit Checking

For test procedures, see Fig 1 and Fig 2 . Also, see CONNECTOR IDENTIFICATION  and WIRING DIAGRAMS  .

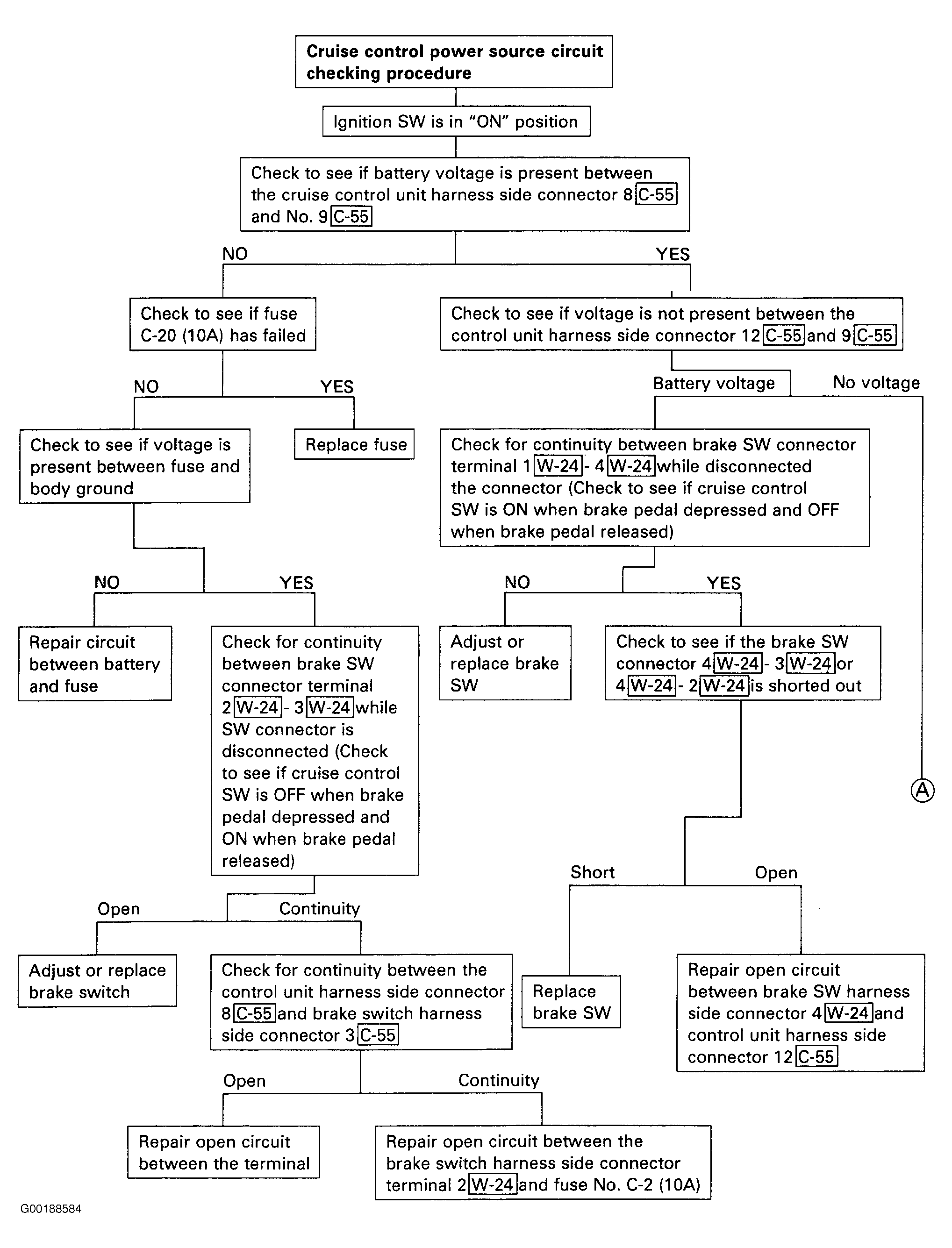

Fig 1: Test A: Cruise Control Power Source Circuit Checking (1 Of 2)

Courtesy of ISUZU MOTOR CO.

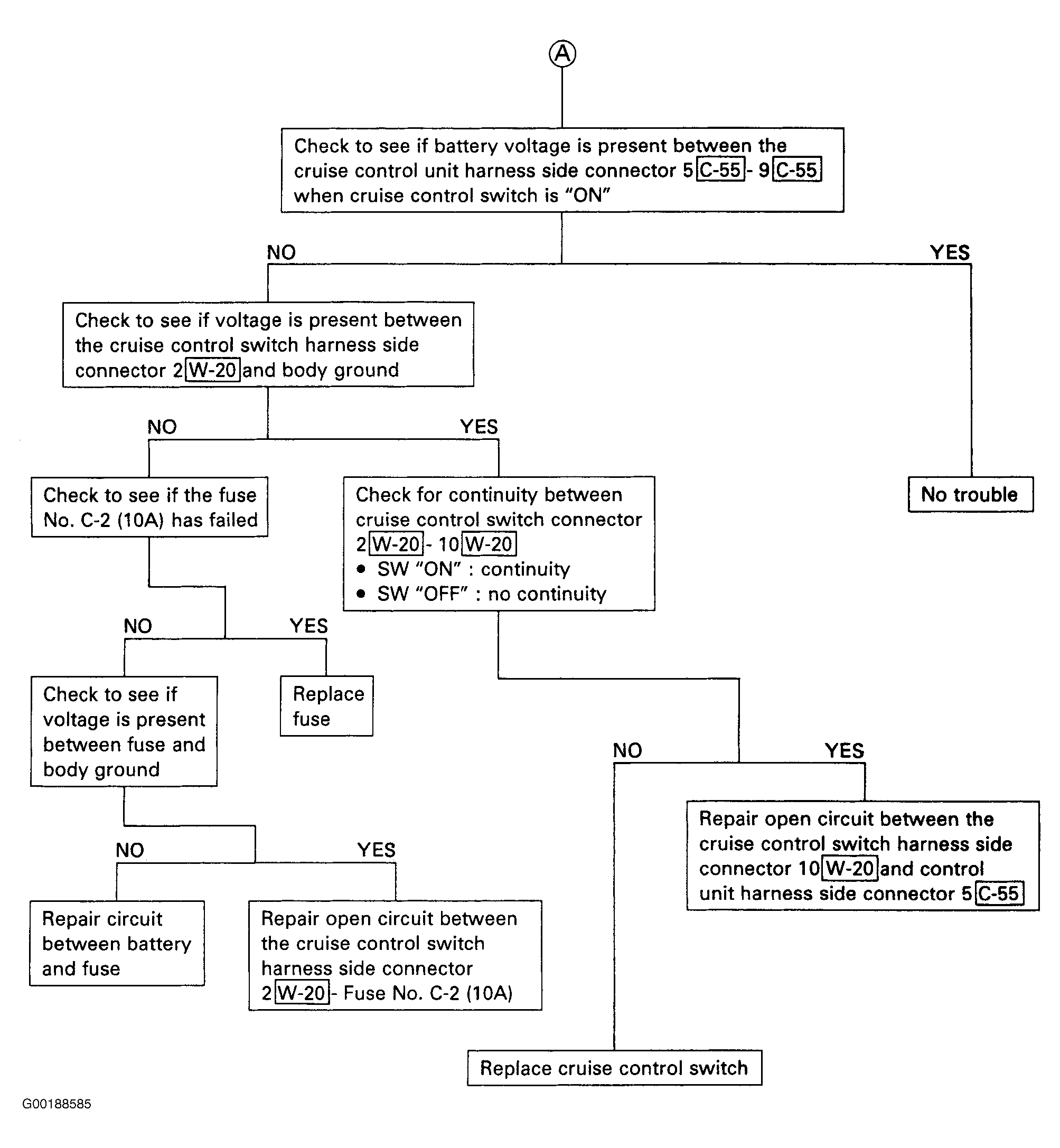

Fig 2: Test A: Cruise Control Power Source Circuit Checking (2 Of 2)

Courtesy of ISUZU MOTOR CO.
