Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Circuit Breaker | |||
| Power Windows/Sun Roof | In passenger compartment fuse/relay block. | ||
| Fuse/Relay Block | |||
| Engine Compartment | |||
| Impulse DOHC (Turbo) | On left side of engine compartment, near strut tower. See Figure . | ||
| Stylus SOHC | On left side of engine compartment, near strut tower. See Figure . | ||
| Passenger Compartment | |||
| Impulse DOHC (Turbo) | Behind left kick panel. See Figure . | ||

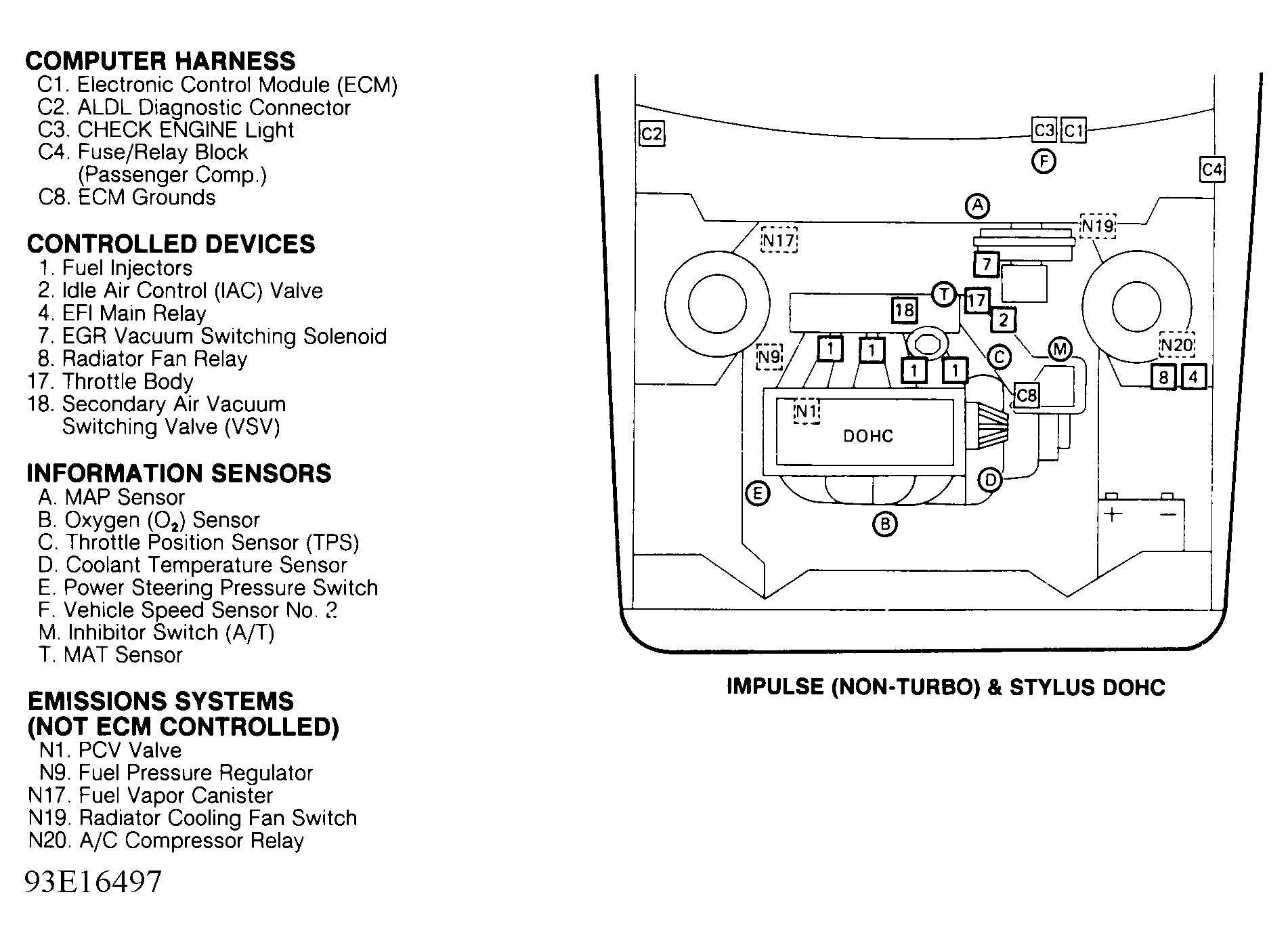

| Impulse (Non-Turbo) & Stylus DOHC | Behind left kick panel. See Figure . | ||
| Stylus SOHC | Behind left kick panel. See Figure . | ||
| Relay Block | On right side of engine compartment, near strut tower. | ||
