Removal & Installation (3.2L - DIS)

  1. Remove negative battery cable. Remove right side exhaust shield. Disconnect front drive shaft yoke. Remove crank angle sensor wiring connector located on right side of block, behind motor mount. See Fig 1. Remove sensor mounting nut and sensor.
  2. To install, reverse removal procedure. Tighten nut and bolts to specification. See TORQUE SPECIFICATIONS  at end of article.

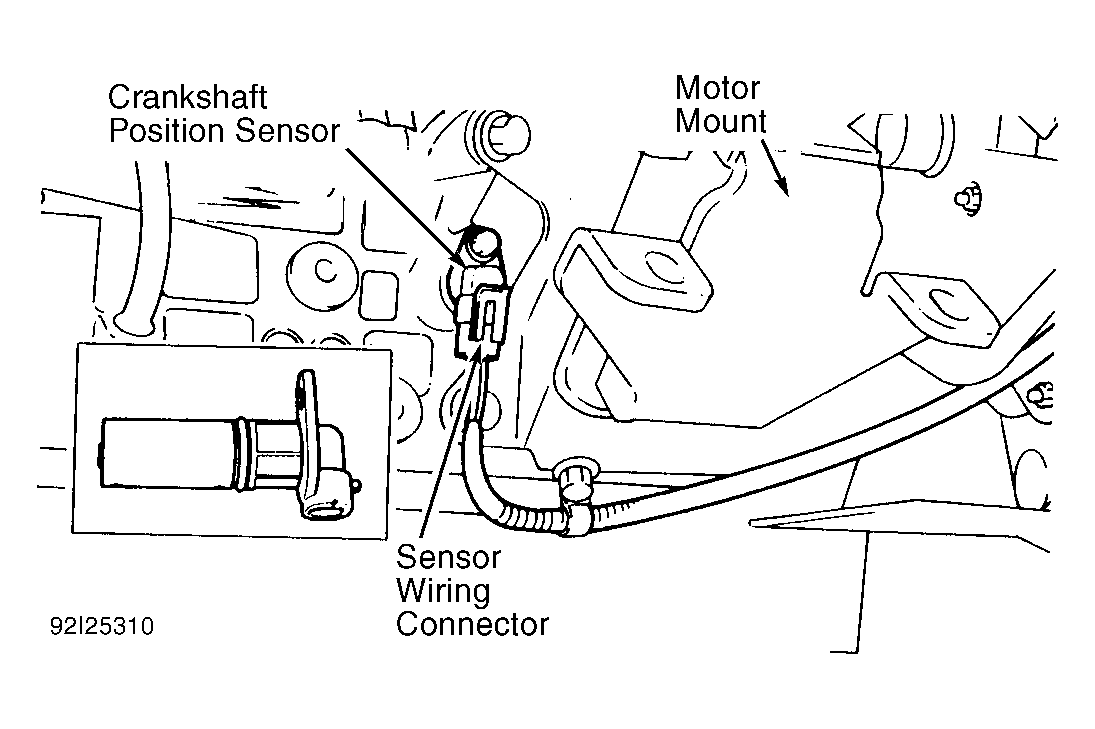

Fig 1: Removing Crank Angle Sensor (3.2L)
G92I25310Courtesy of ISUZU MOTOR CO.
