Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

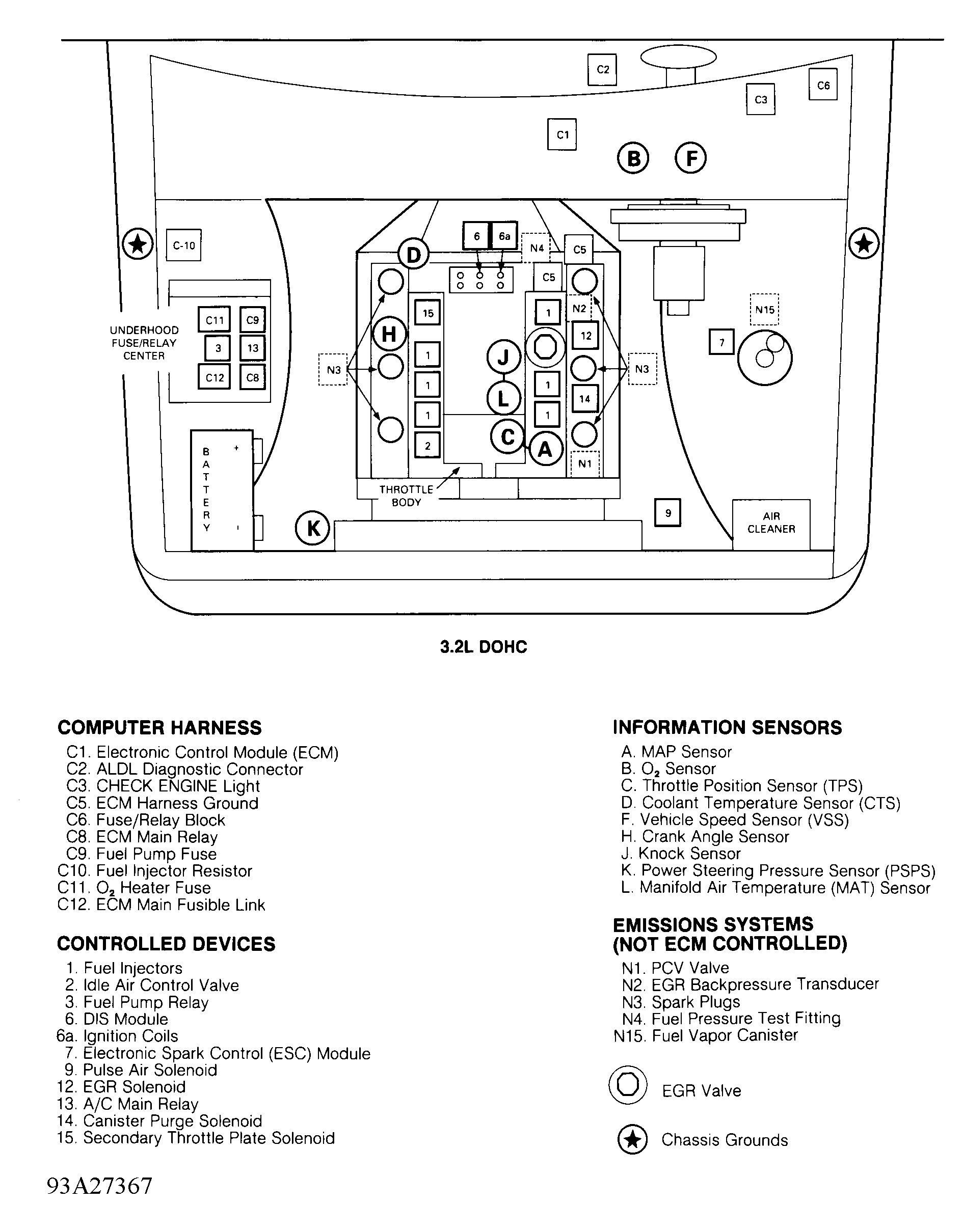

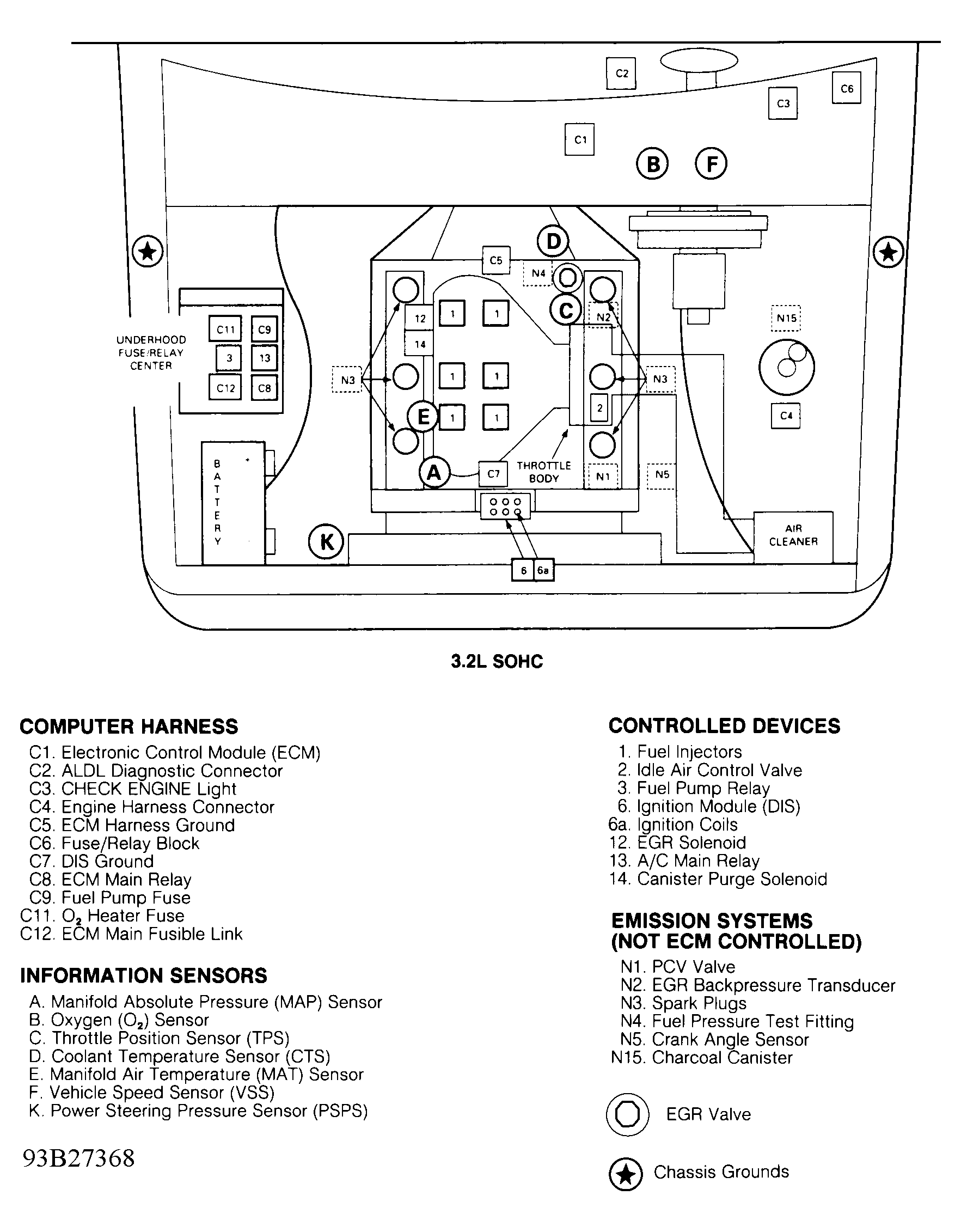

ECM Main Fusible Link (3.2L DOHC) In underhood fuse/relay block. See Figure & Figure .
Fuel Pump Fuse (3.2L DOHC) In underhood fuse/relay block. See Figure & Figure .
Fuse/Relay Block
Passenger Compartment (3.2L DOHC) Behind left side of dash. See Figure & Figure .
Underhood (3.2L DOHC) On right inner fender panel. See Figure & Figure .
Fusible Links In underhood fuse/relay block.
Oxygen (O2) Heater Fuse (3.2L DOHC) In underhood fuse/relay block. See Figure & Figure .
Power Window Circuit Breaker In passenger compartment fuse/relay block.
