Power Mirror Switch

Remove control switch from vehicle. Using an ohmmeter, check continuity between specified terminals while operating switch in each position. SeeFig 1 and Fig 2 . If control switch does not test as described, replace switch.

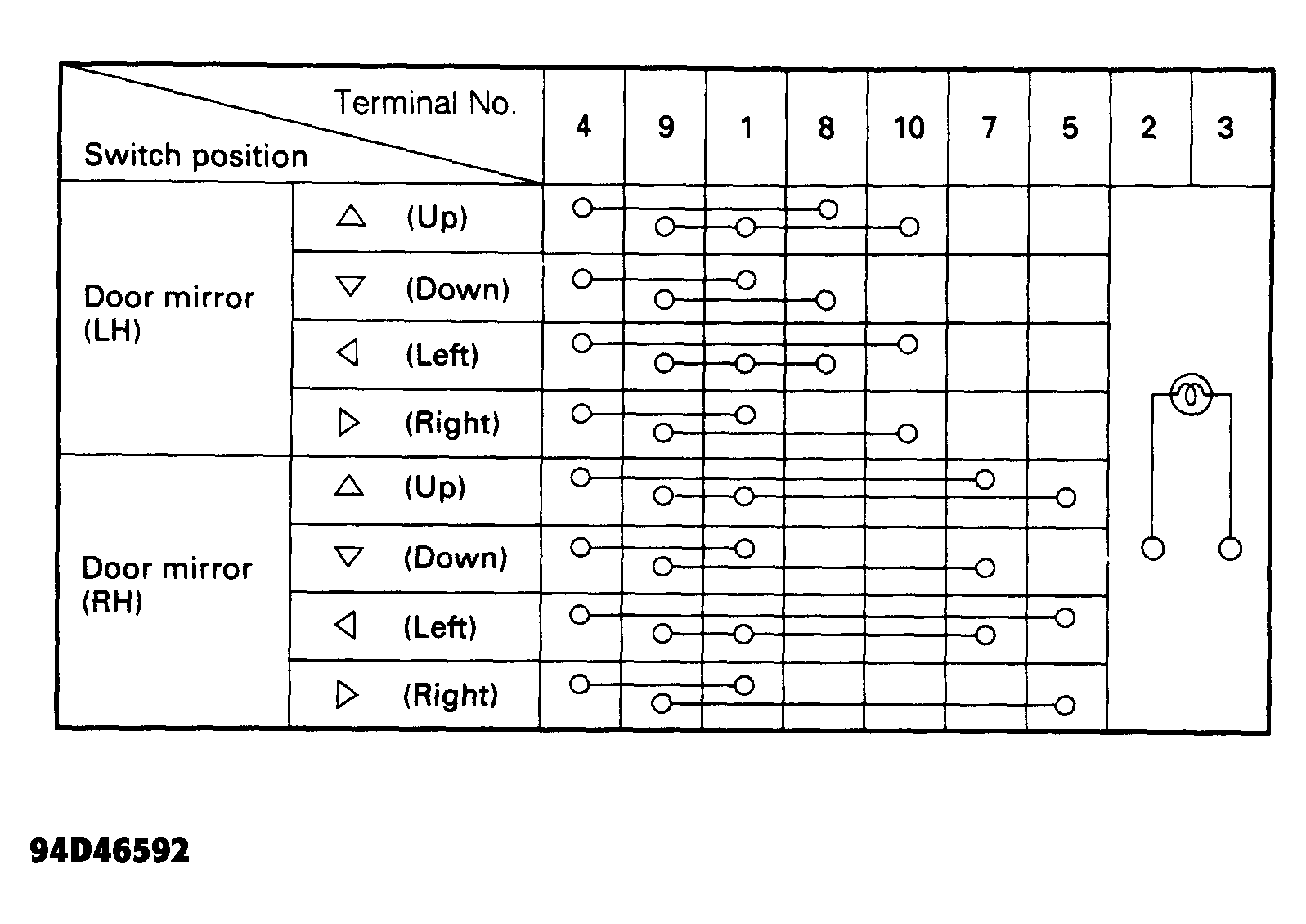

Fig 1: Testing Power Mirror Switch (Rodeo - 1 Of 2)

Courtesy of ISUZU MOTOR CO.

Fig 2: Testing Power Mirror Switch (Rodeo - 2 Of 2)

Courtesy of ISUZU MOTOR CO.
