Code 6 - Erratic Speed Sensor Signal

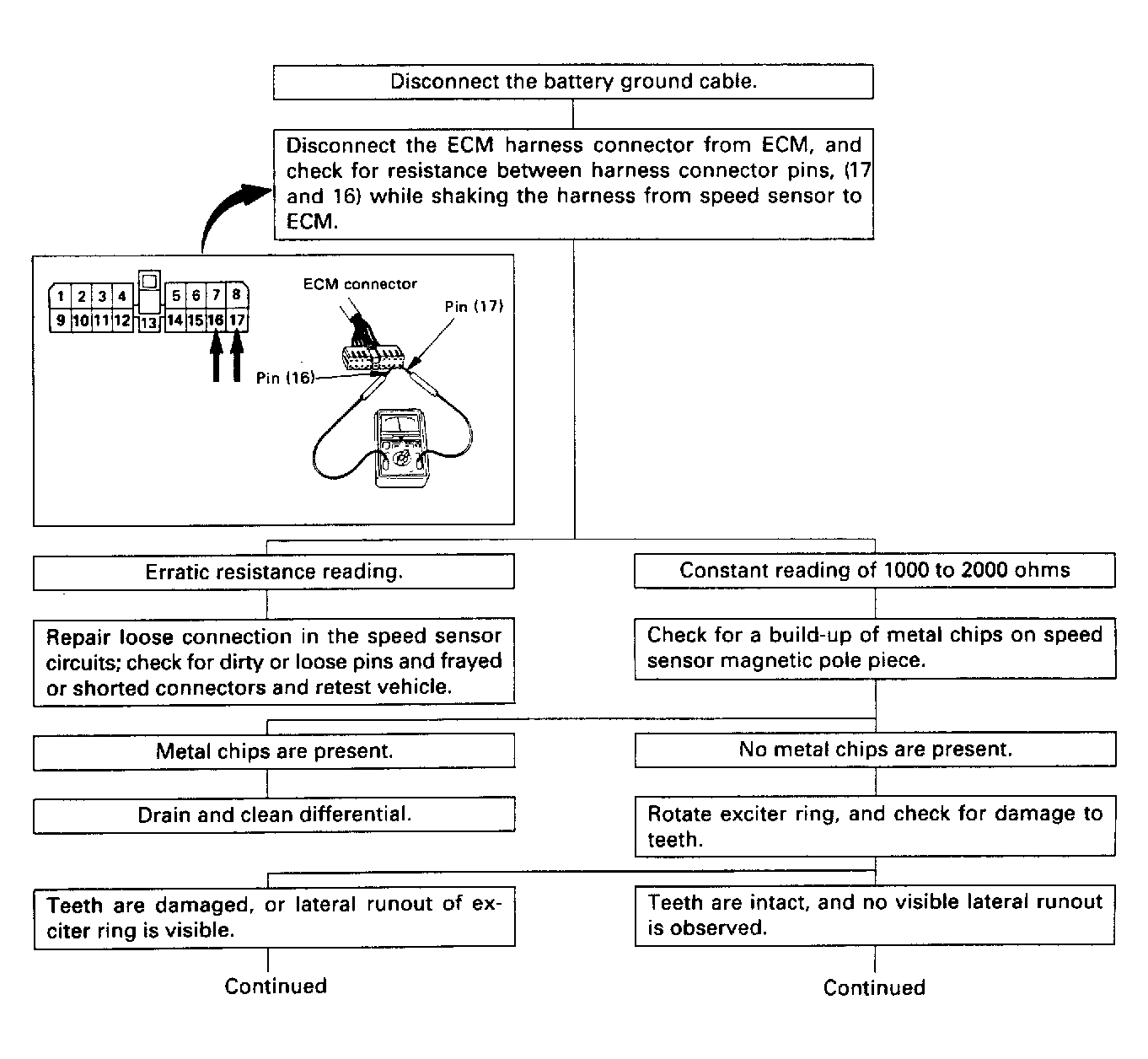

Fig 1: Code 6 - Erratic Speed Sensor Signal (1 Of 3)

Courtesy of ISUZU MOTOR CO.

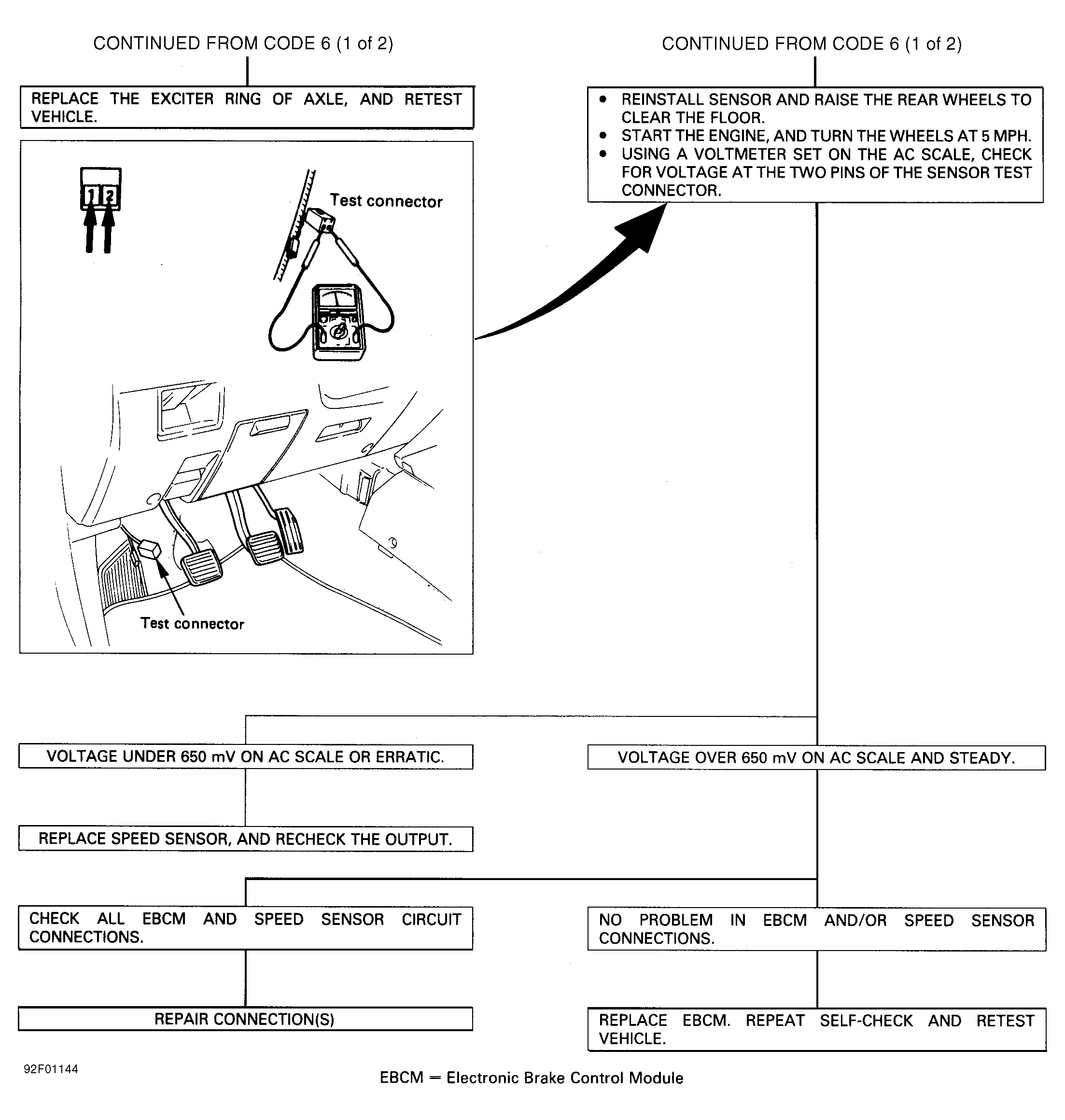

Fig 2: Code 6 - Erratic Speed Sensor Signal (2 Of 3)

Courtesy of ISUZU MOTOR CO.

Fig 3: Code 6 - Erratic Speed Sensor Signal (3 Of 3)

Courtesy of ISUZU MOTOR CO.
