Speed Sensor

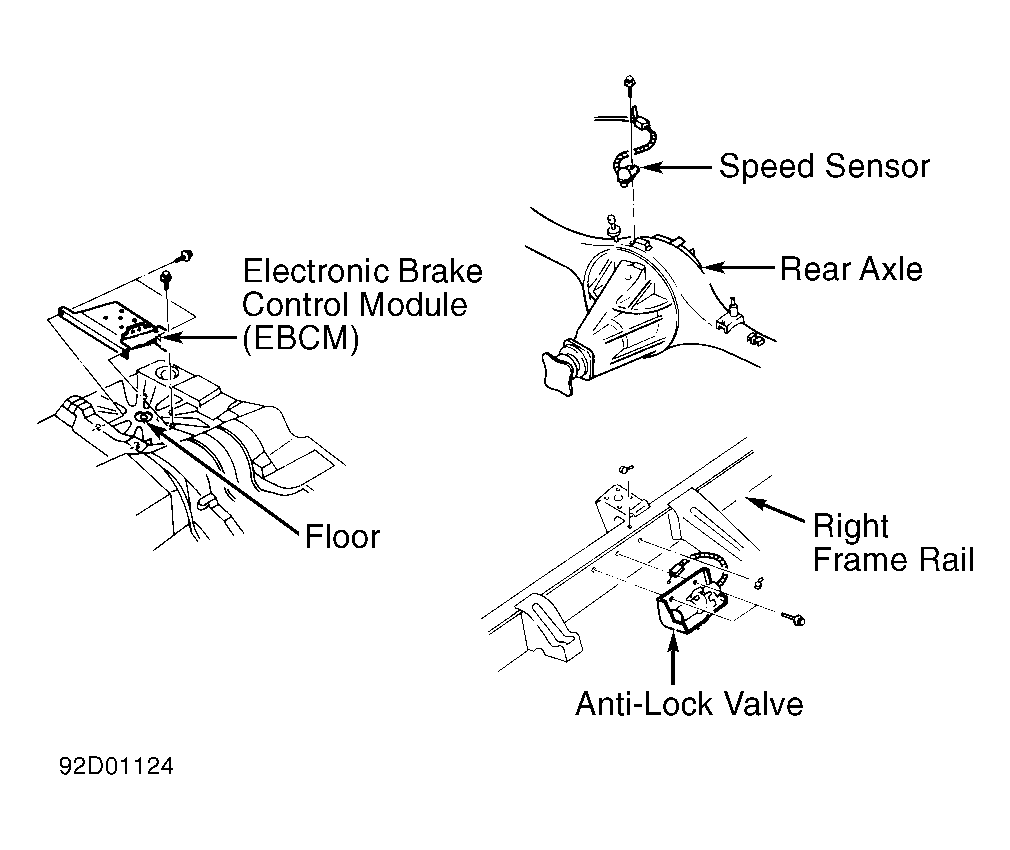

Pick-up type speed sensor is mounted on top of rear axle. See Figure . An exciter ring, mounted near ring gear, provides a signal to speed sensor. Speed sensor then sends a signal to ECM, indicating average rear wheel speed. ECM uses speed sensor signal to determine rear wheel speed and prevent wheel lock-up.
