Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under passenger's seat. |
| Cruise Control Unit (3.2L) | Behind right kick panel. |

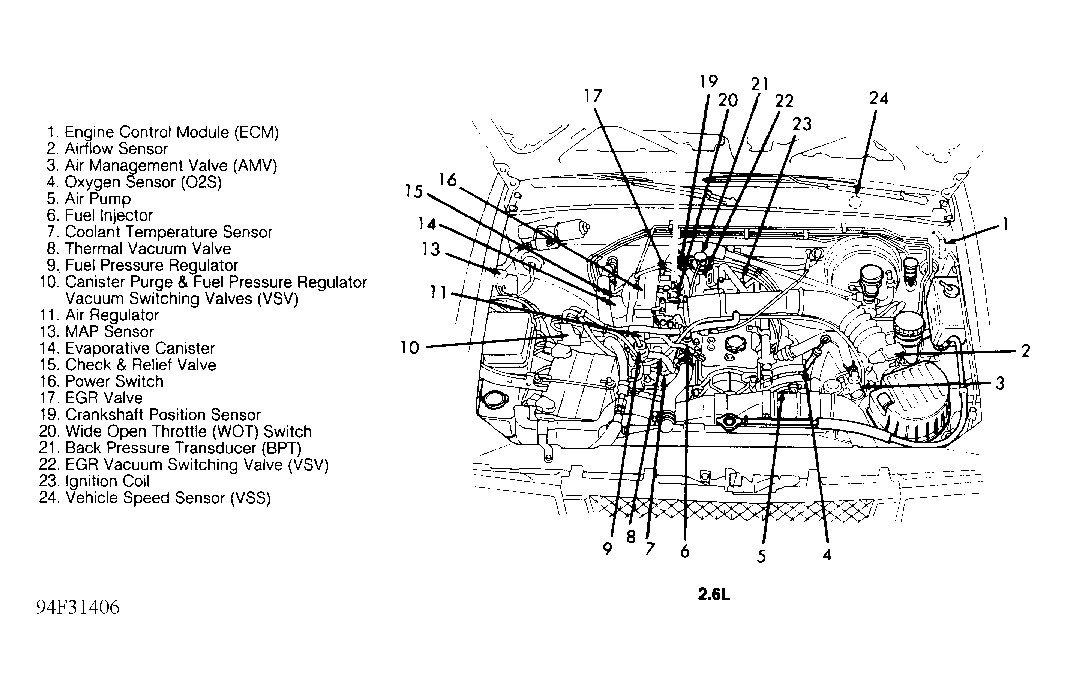

| Engine Control Module (ECM) (2.6L) | Behind left kick panel. See Figure . |
| Engine Control Module (ECM) (3.2L) | Behind left kick panel. See Figure . |
| Ignition Control Module (3.2L) | On center front of engine. See Figure . |
| Shift Lock Control Unit | Under center console, at base of gear selector. |
| Transmission Control Module (3.2L) | Behind left side of dash. |
| Warning Buzzer Control Unit | Behind right side dash, above kick panel. |
