Fuel Metering Lean Faulty Inspection Procedure

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

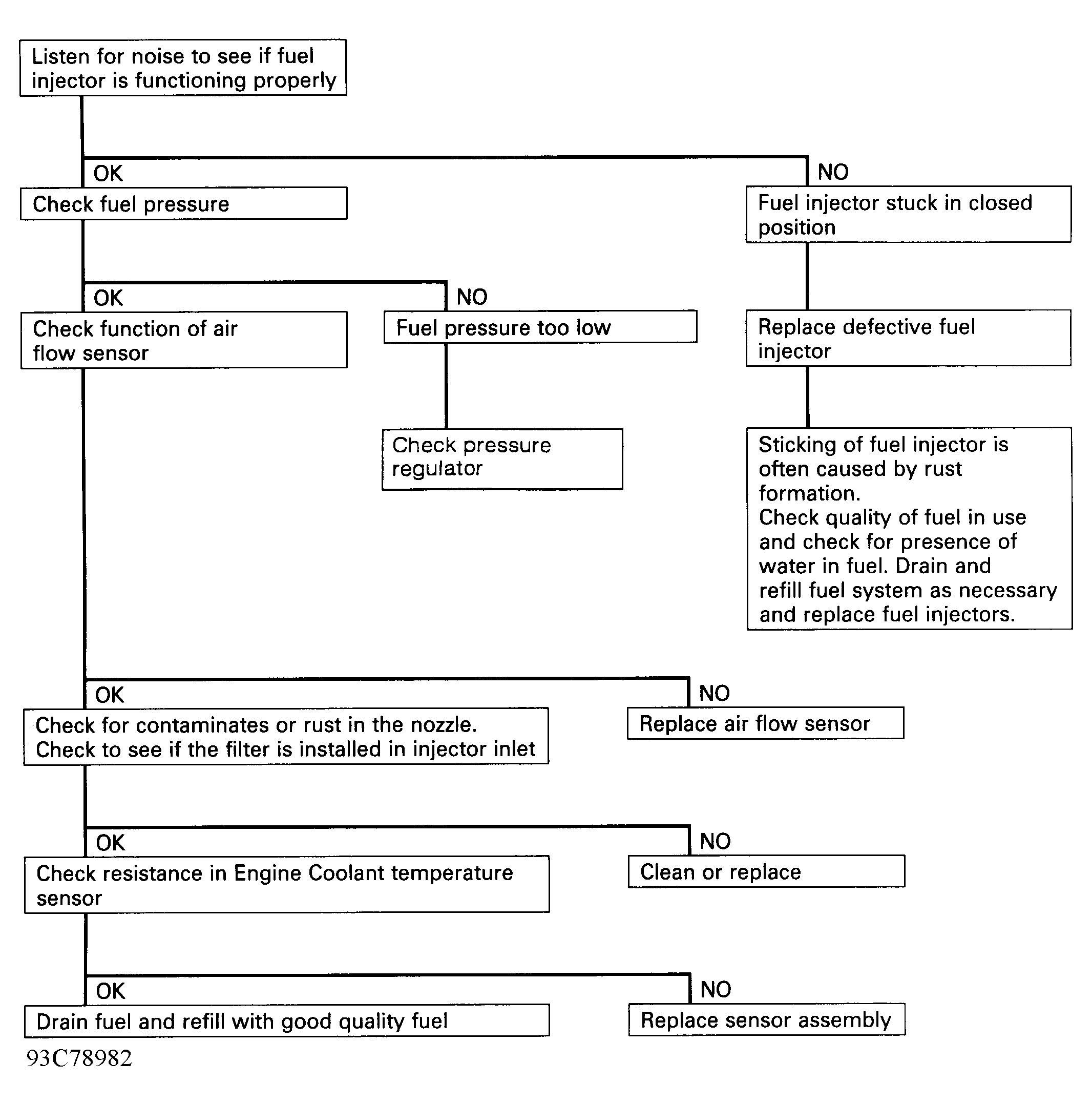

Fig 1: Fuel Metering Lean - Diagnostic Flowchart
G93C78982Courtesy of ISUZU MOTOR CO.
