Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

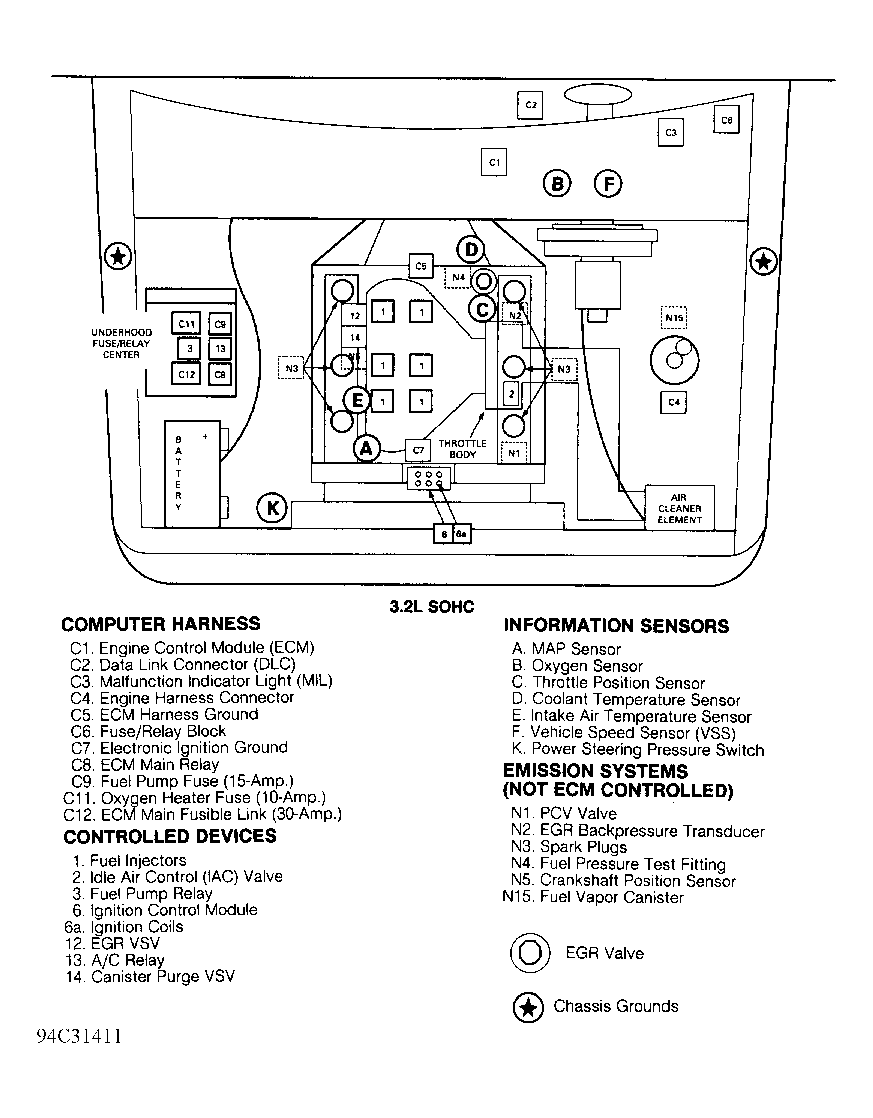

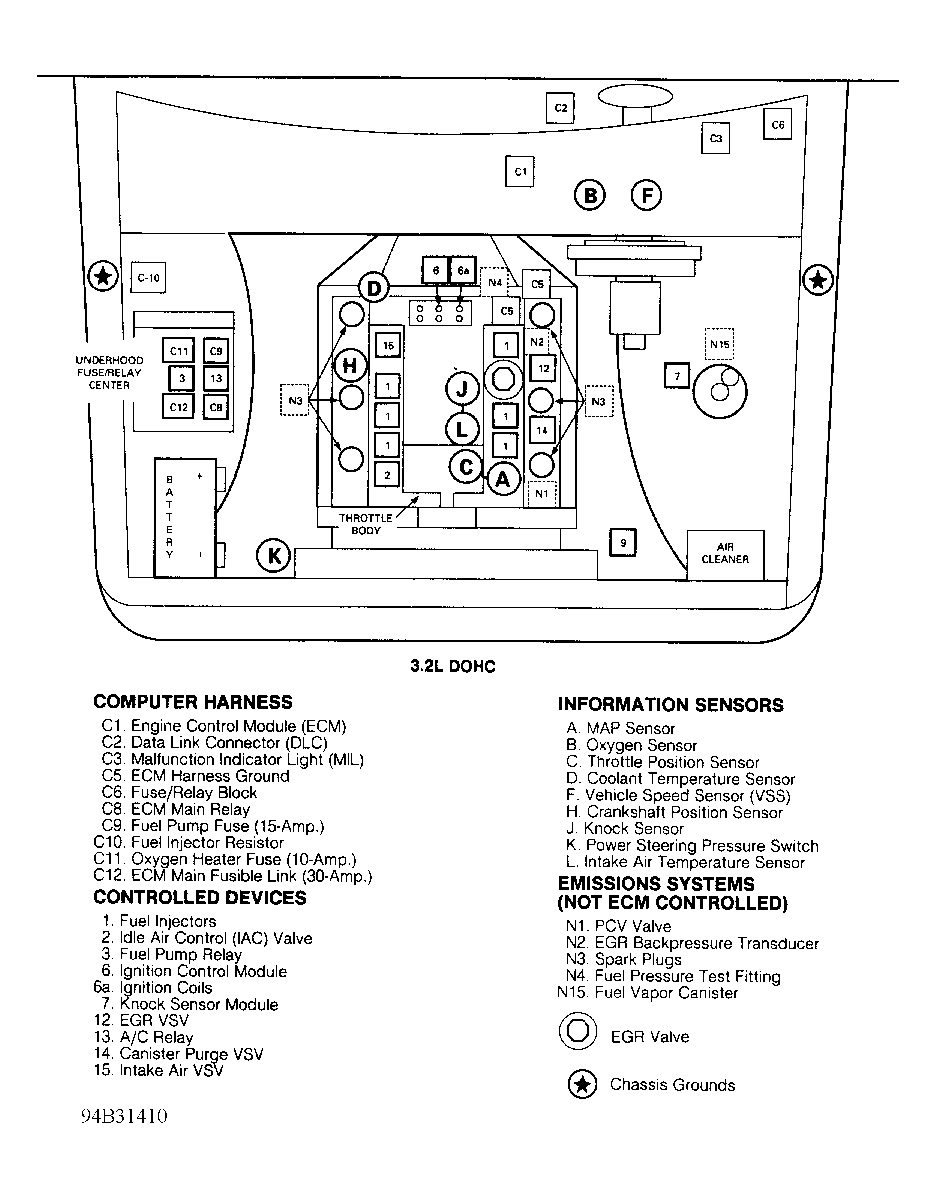

ECM Main Fusible Link (3.2L DOHC) (30-Amp) In underhood fuse/relay block. See Figure .
ECM Main Fusible Link (3.2L SOHC) (30-Amp) In underhood fuse/relay block. See Figure .
Passenger Compartment Fuse/Relay Block (3.2L DOHC) Behind left side of dash. See Figure .
Passenger Compartment Fuse/Relay Block (3.2L SOHC) Behind left side of dash. See Figure .
Underhood Fuse/Relay Block (3.2L DOHC) On right inner fender panel. See Figure .
Underhood Fuse/Relay Block (3.2L SOHC) On right inner fender panel. See Figure .
Power Window/Power Sunroof Circuit Breaker In passenger compartment fuse/relay block.
