Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

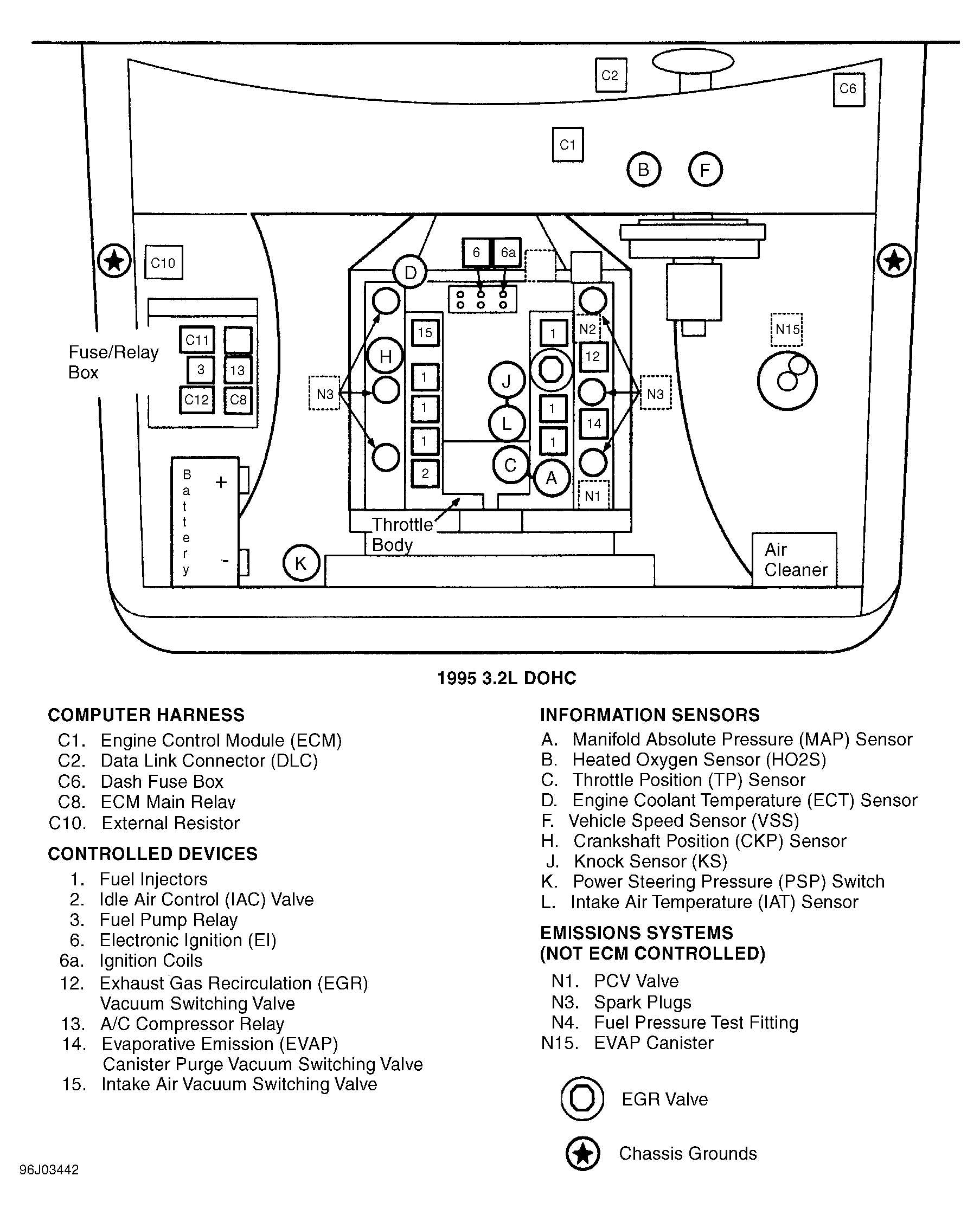

Fig 1: Engine Compartment (1995 3.2L DOHC)

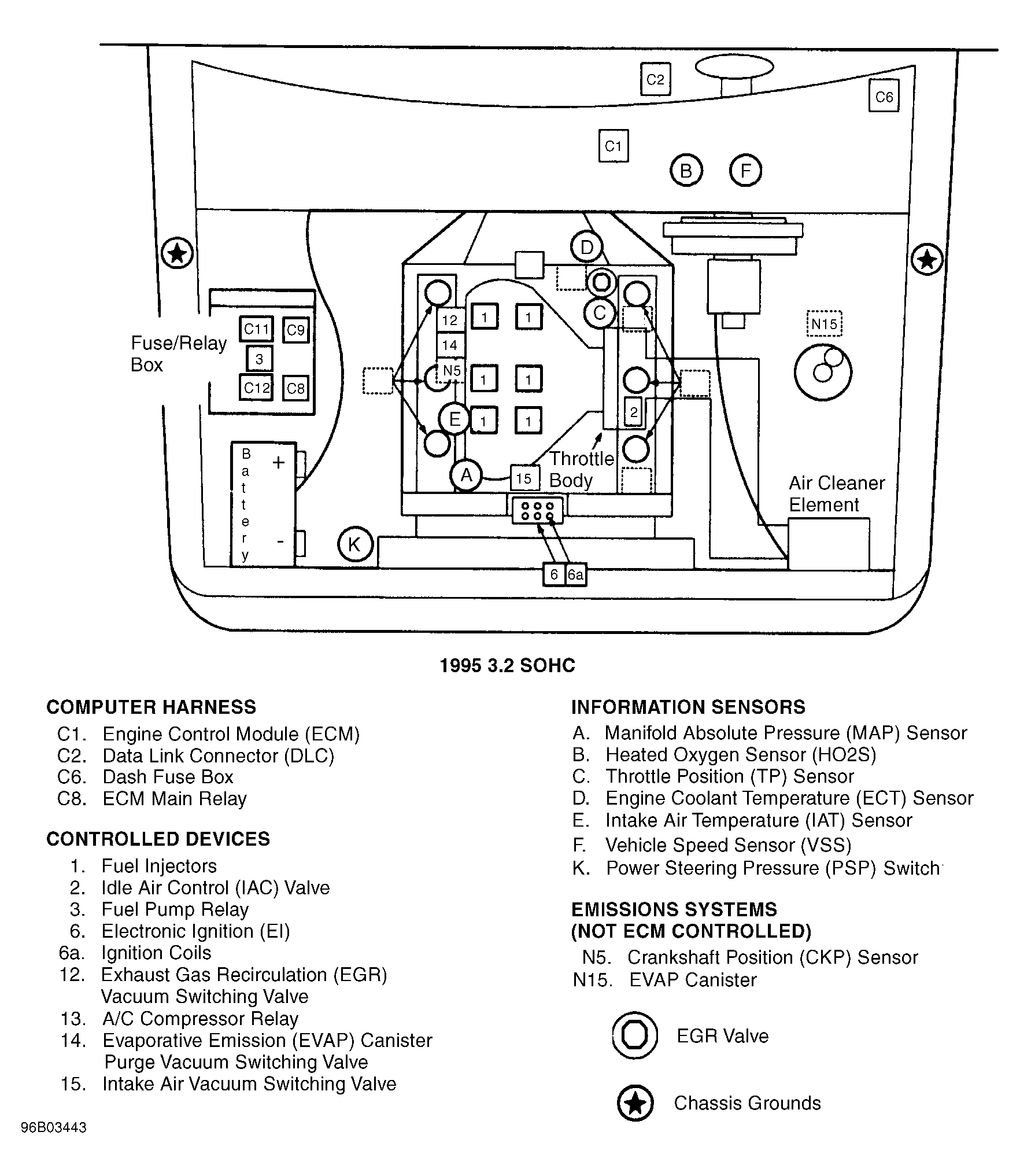

Fig 2: Engine Compartment (1995 3.2L SOHC)

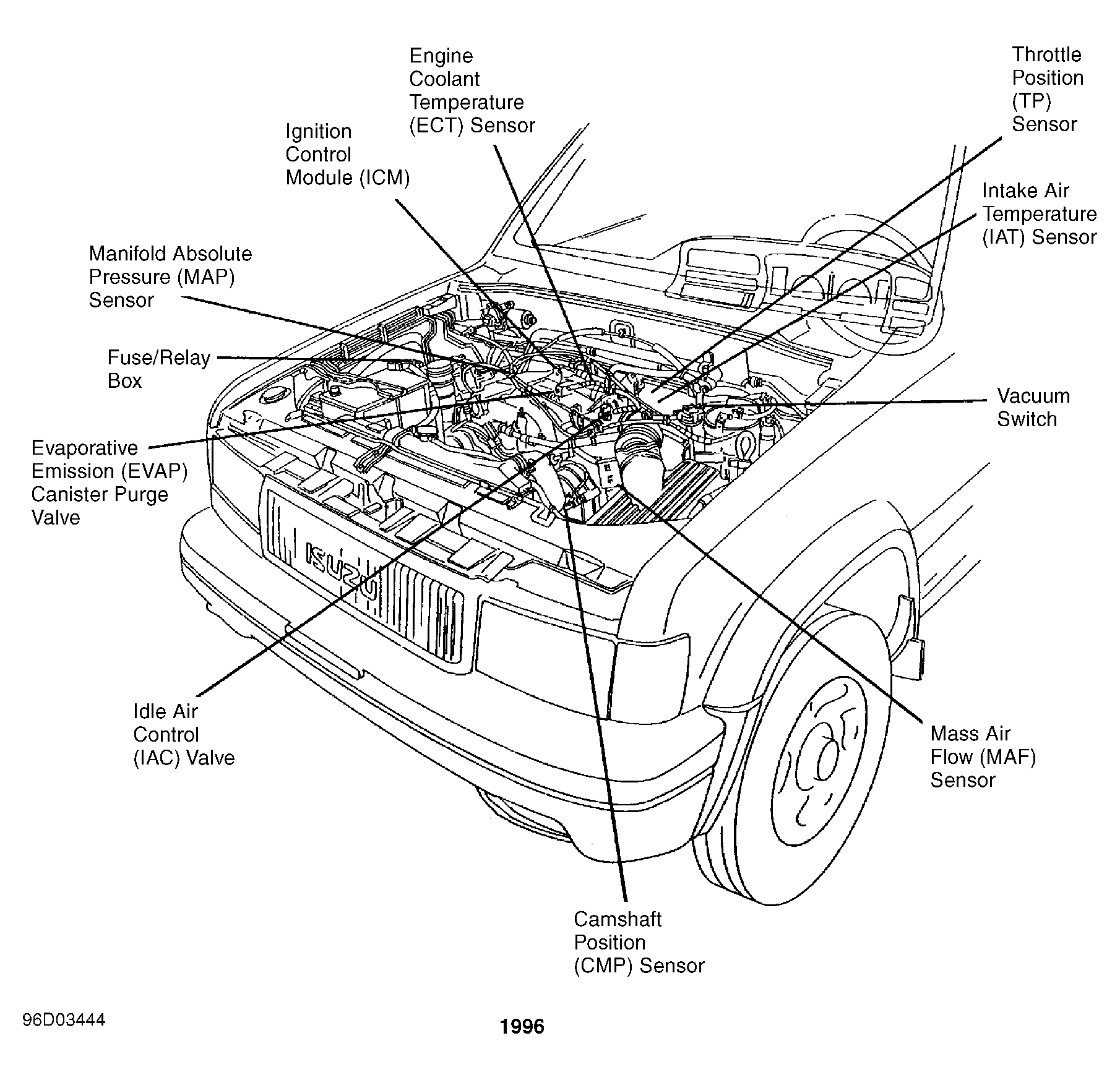

Fig 3: Engine Compartment (1996)

Fig 4: Transmission

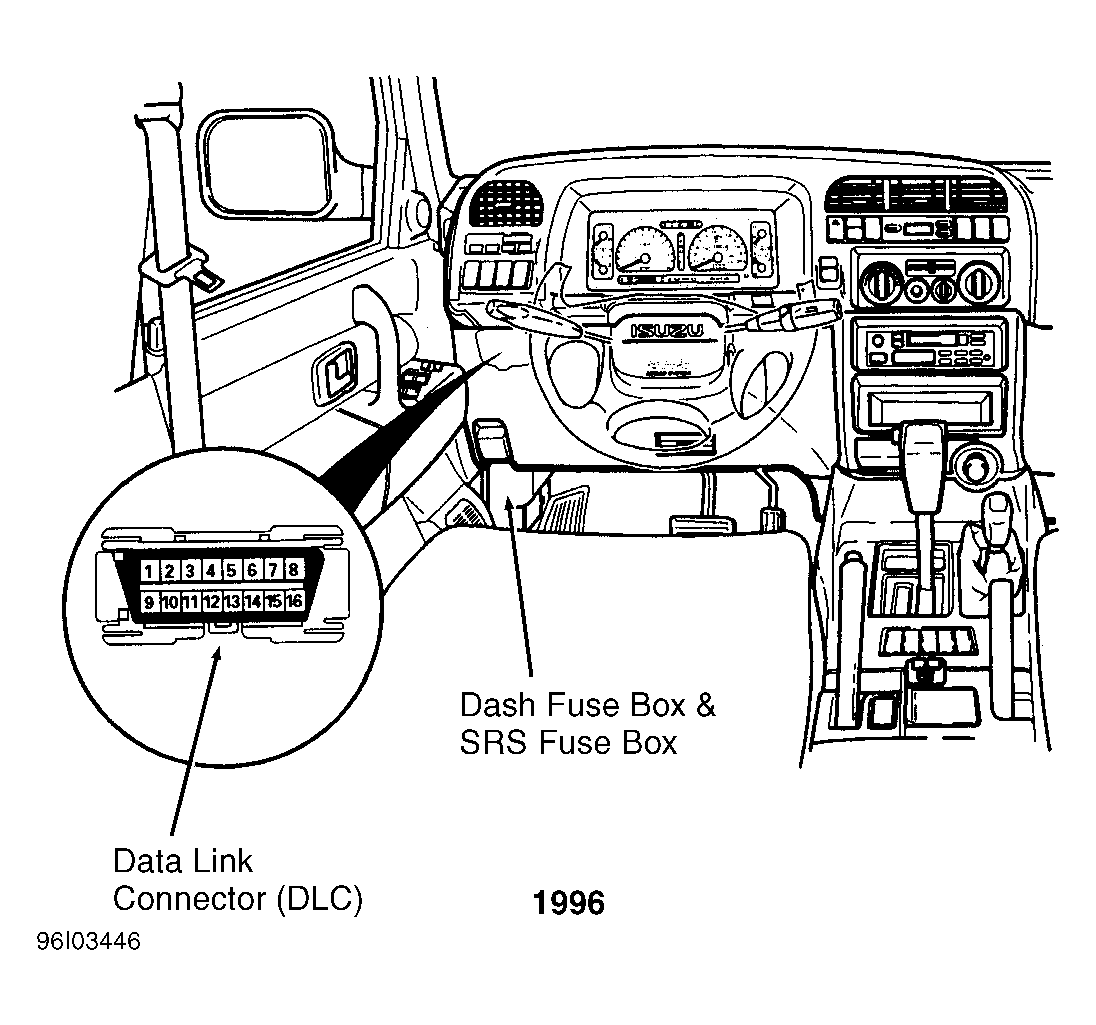

Fig 5: Left Side Of Dash (1996)
