Fuel Filter: Service and Repair

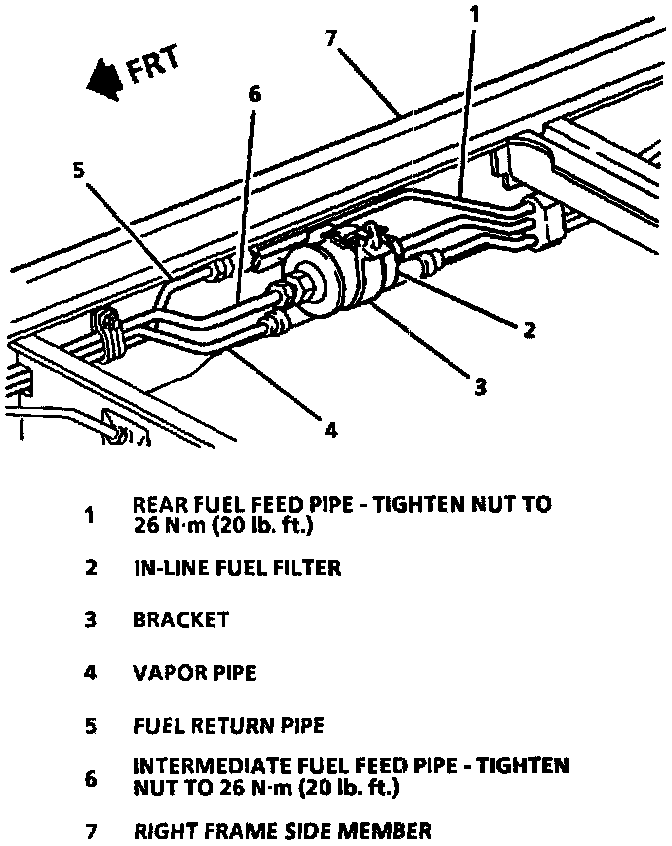

Figure 4E-3 In-Line Filter Replacement:

REMOVE OR DISCONNECT:
1. Relieve fuel pressure.
2. Fuel filler cap.
3. Fuel feed nuts.
4. Clamp bolt.
5. Filter and clamp from fuel lines.
6. Clamp from filter.

INSTALL OR CONNECT:
1. Clamp to filter.
2. Filter and clamp to fuel lines.
3. Clamp bolt.
4. Fuel feed nuts.
5. Fuel filler cap.
6. Check for leaks.
