Component Locations

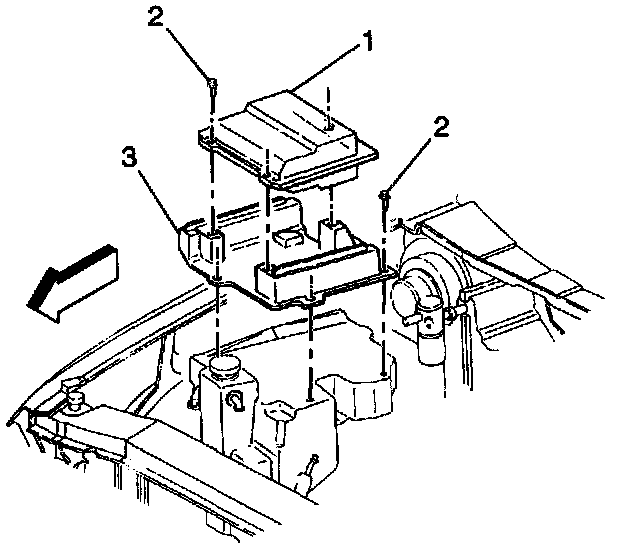

Figure 1-2 - Powertrain Control Module:




Legend:
1. Powertrain Control Module (PCM)
2. PCM Retaining Bolt
3. PCM Retaining Bracket
