Ignition Control Module: Service and Repair

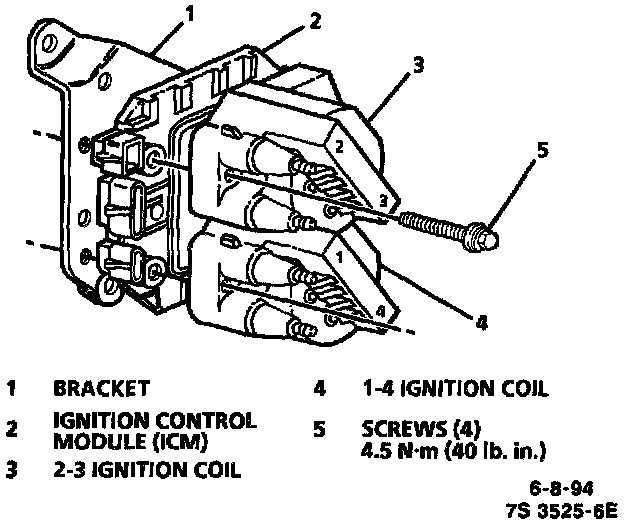

Figure 6B-3 Ignition Control Module (1CM):

REMOVE OR DISCONNECT
1. Negative battery cable
2. Raise vehicle and suitably support
3. Ignition coils from module
4. Module from assembly plate

INSTALL OR CONNECT
1. Module to assembly plate
2. Ignition coils
3. Lower vehicle
4. Negative battery cable
