Power Mirror Switch

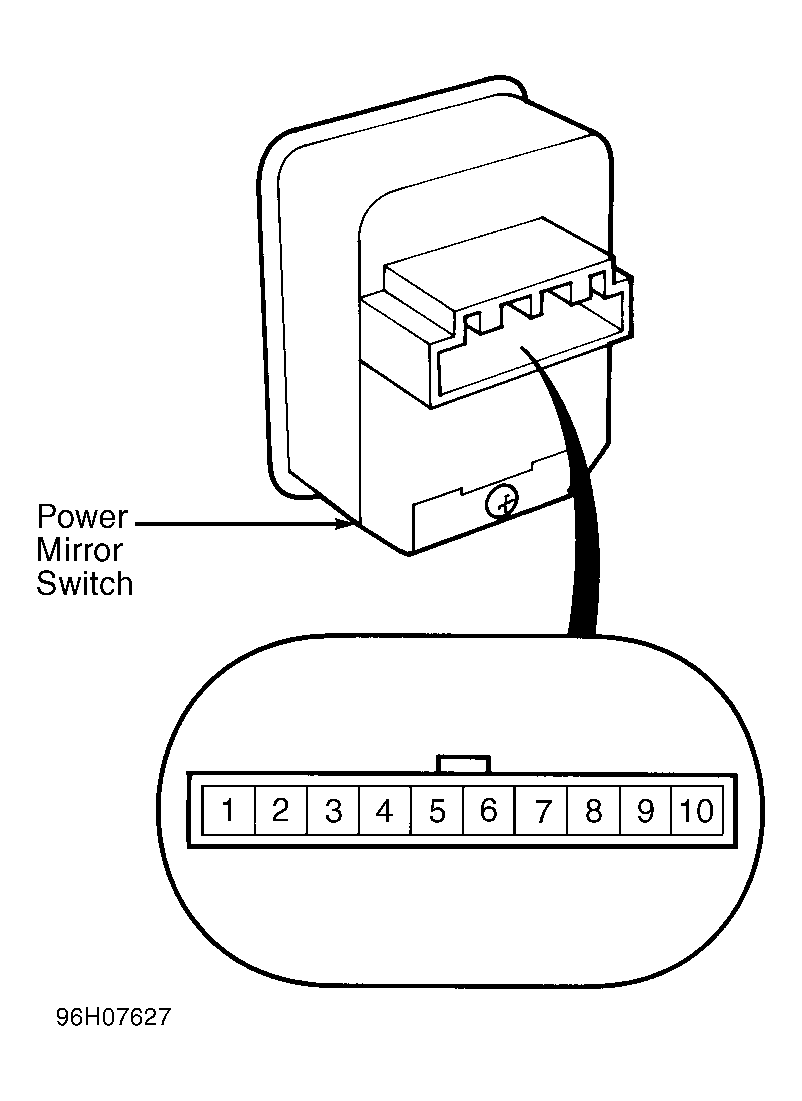

Turn ignition off. Remove power mirror switch. See POWER MIRROR SWITCH R & I under REMOVAL & INSTALLATION. Using an ohmmeter, check for continuity between specified switch terminals while operating switch. See POWER MIRROR SWITCH CONTINUITY . SeeFig 1 . If continuity is not as specified, replace power mirror switch.
POWER MIRROR SWITCH CONTINUITY
| Switch Position | Between Terminals No. | |
|---|---|---|
| Left Mirror | ||
| Off | 4, 5, 7 & 10 | |
| Up | 4, 7 & 10; 5 & 9 | |
| Down | 4, 7 & 9; 5 & 10 | |
| Left | 5 & 9; 7 & 9 | |
| Right | 5, 6 & 10; 4 & 9 | |
| Right Mirror | ||
| Off | 3, 5, 6 & 10 | |
| Up | 3, 6 & 10; 5 & 9 | |
| Down | 3, 6 & 9; 5 & 10 | |
| Left | 5, 6 & 9; 3 & 10 | |
| Right | 5, 6 & 10; 3 & 9 | |
