Power Window Motor

Gain access to power window motor terminals. Apply battery voltage and ground to terminals No. 1 and 2. SeeFig 1 . Motor should operate unless already at maximum travel. Reverse test leads. Motor should operate in opposite direction. If motor does not operate as described, replace window motor.

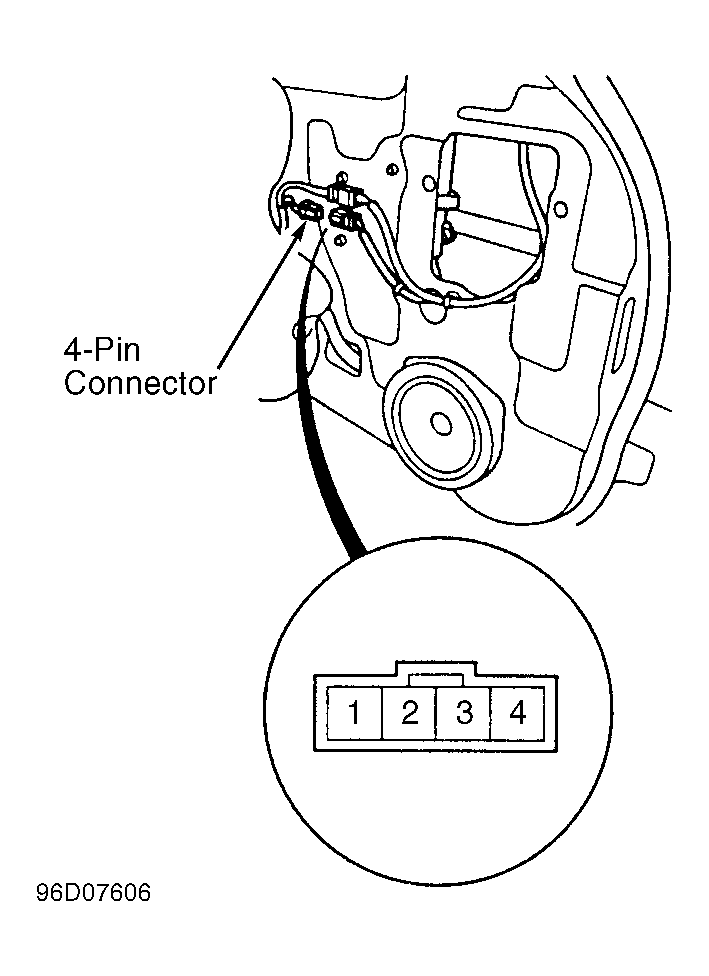

Fig 1: Identifying Power Window Motor Terminals
G96D07606Courtesy of ISUZU MOTOR CO.
