Component Testing: Switch
- Turn ignition off. Remove driver's seat side cover. Disconnect 5-pin harness connector from power seat up-down switch. Remove power seat switch.

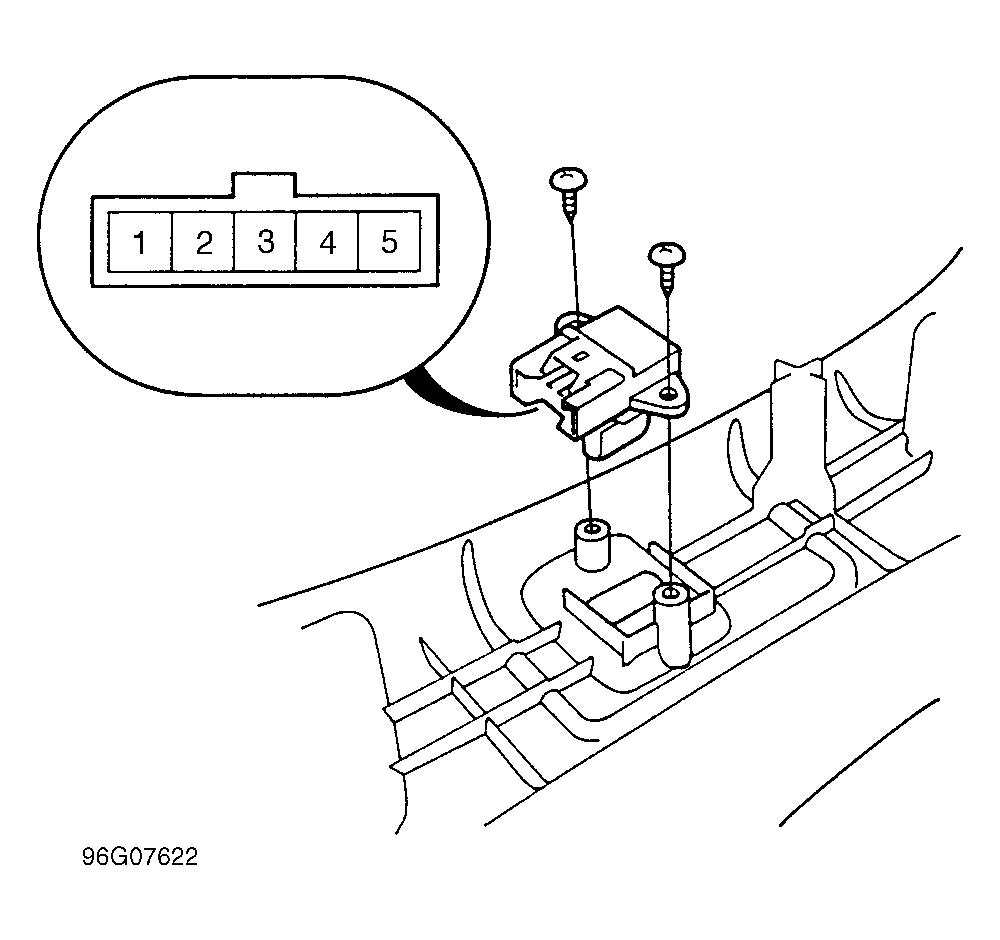

- Using an ohmmeter, check for continuity between specified switch terminals while operating switch. See POWER SEAT SWITCH CONTINUITY table. SeeFig 1 . Replace power seat switch if continuity is not as specified.
POWER SEAT SWITCH CONTINUITY
| Function | Between Terminals No. |
|---|---|
| UP | 1 & 2; 4 & 5 |
| DOWN | 1 & 4; 2 & 3 |
