Mode Switch

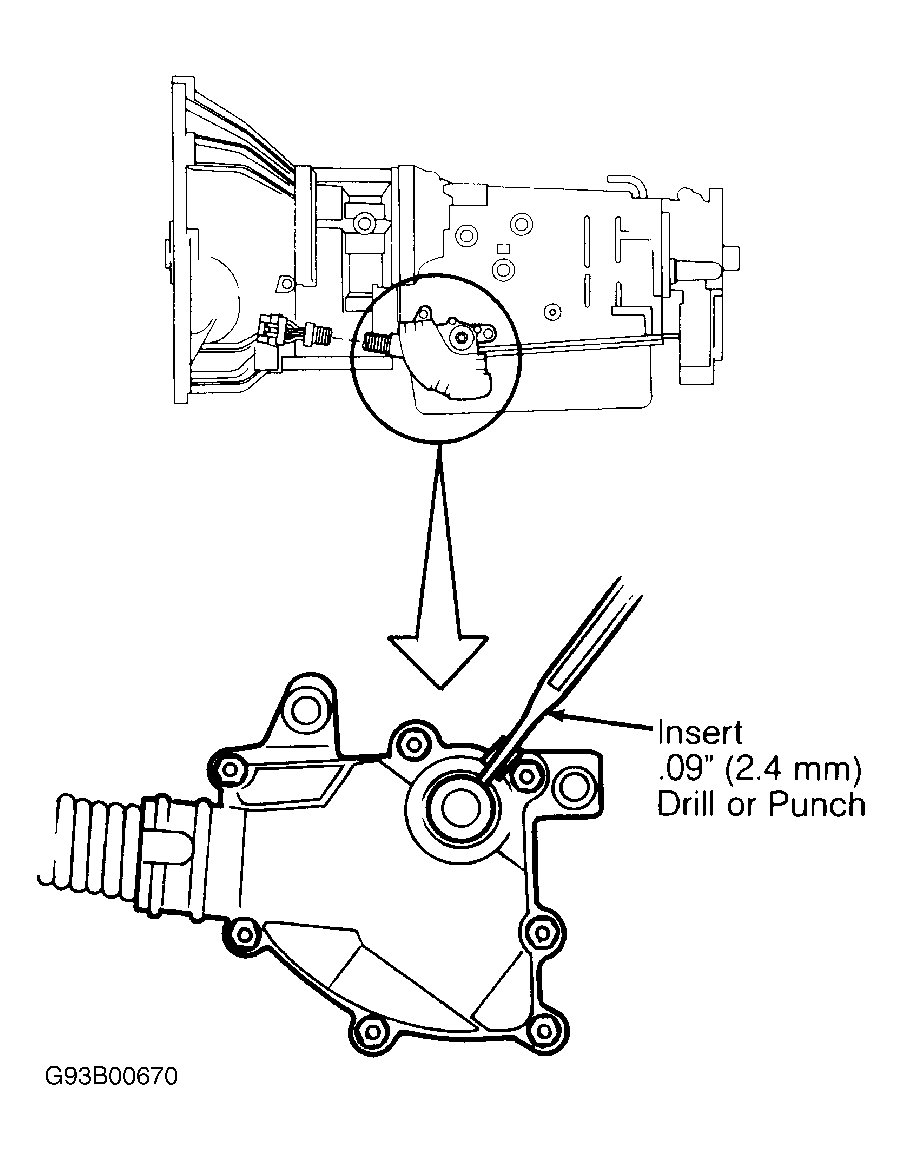

- Place gear selector lever in "N" position. Remove cover from mode switch. Disconnect gear selector lever from mode switch. Loosen switch mounting bolts. Align slot in switch housing with slot in selector shaft bushing. See Fig 1.
- Insert a 3/32" diameter alignment pin into both ports and rotate switch body to feel for proper alignment. Torque switch mounting bolts to specification. See TORQUE SPECIFICATIONS table. Remove alignment pins before moving gear selector lever.
Courtesy of ISUZU MOTOR CO.
