Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

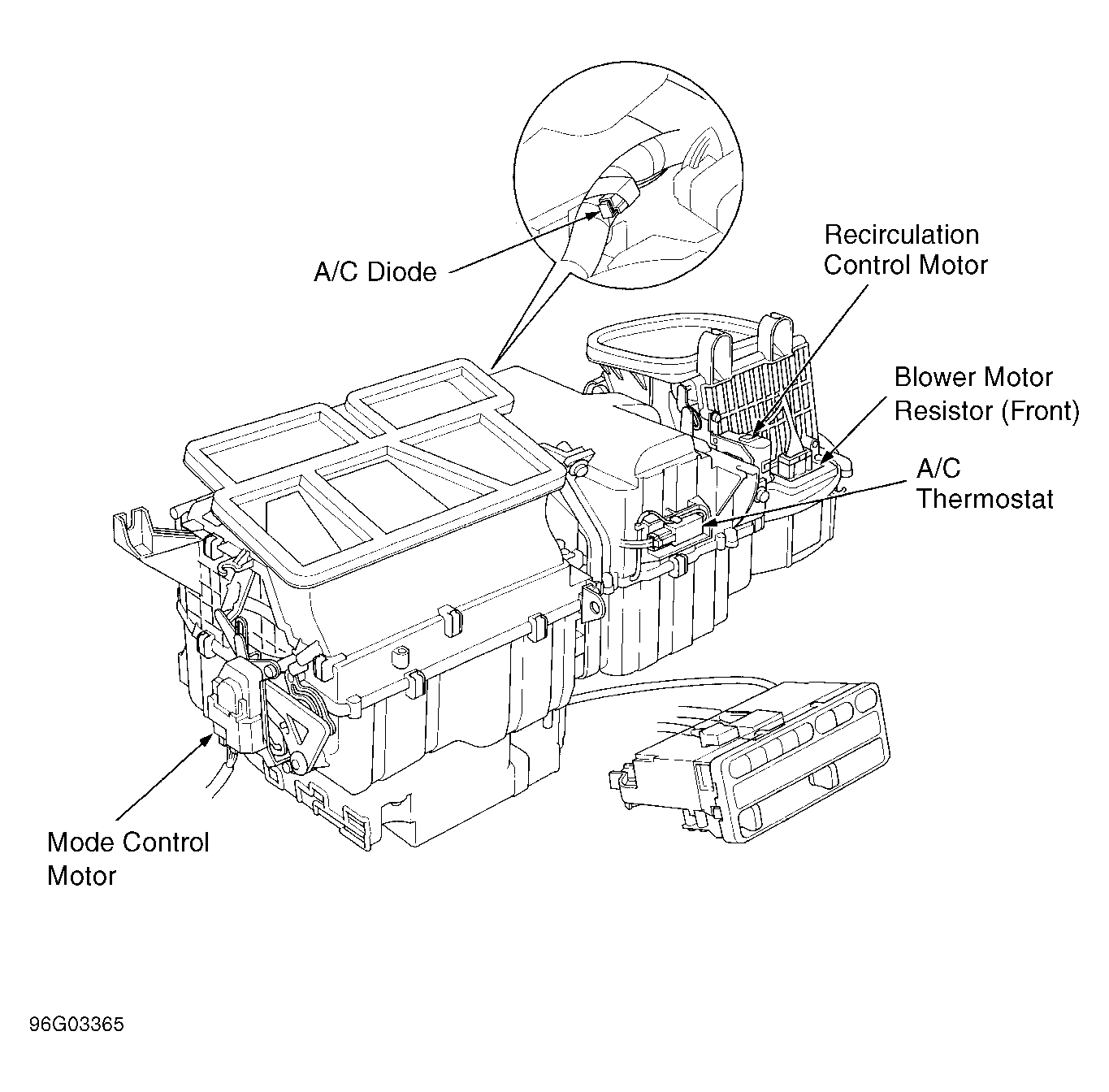

A/C Diode Behind glove box, taped to harness. See Figure .
A/T Reverse Diode Behind dash, right of steering column, taped to harness.
Fog Lamp In-Line Fuse On right front of engine compartment, on battery bracket.
Rear Blower Motor In-Line Fuse On underside of ceiling, right side of rear A/C unit.
Security In-Line Fuse Holder At left kick panel, taped to harness.

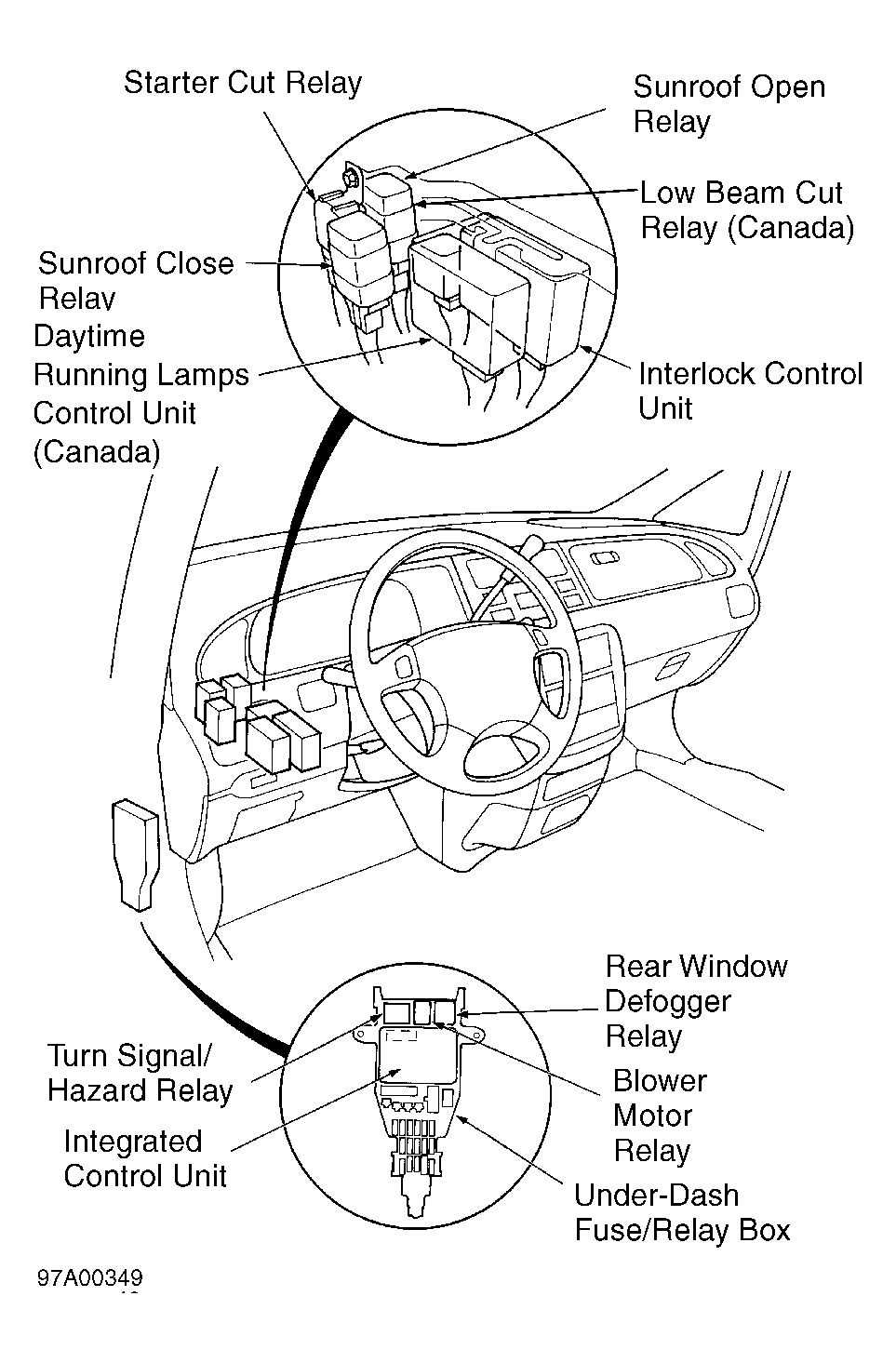

Underdash Fuse/Relay Box At left kick panel. See Figure .
Underhood ABS Fuse/Relay Box On right rear of engine compartment. See Figure .

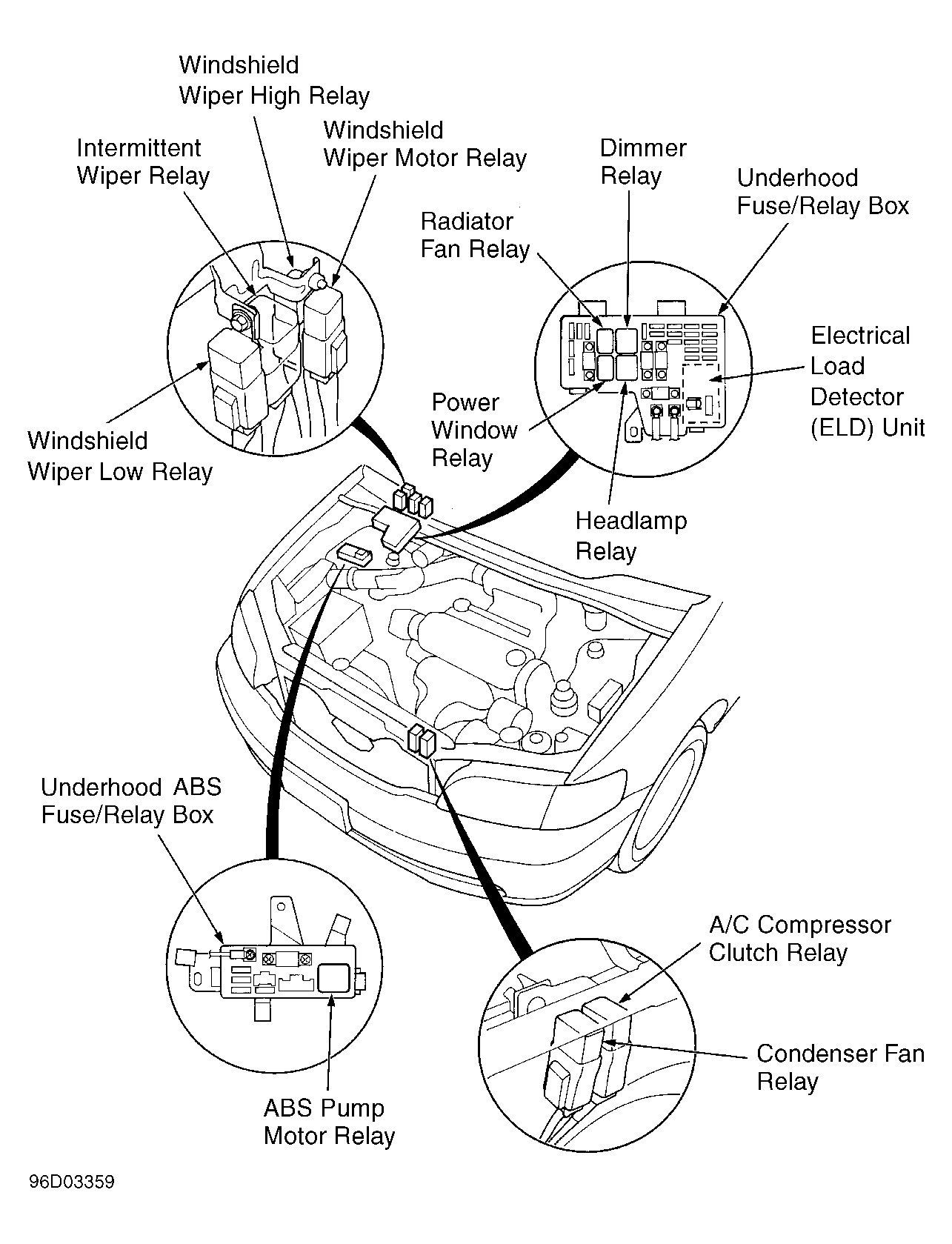

Underhood Fuse/Relay Box On right rear corner of engine compartment. See Figure .
