Ignition Switch Test

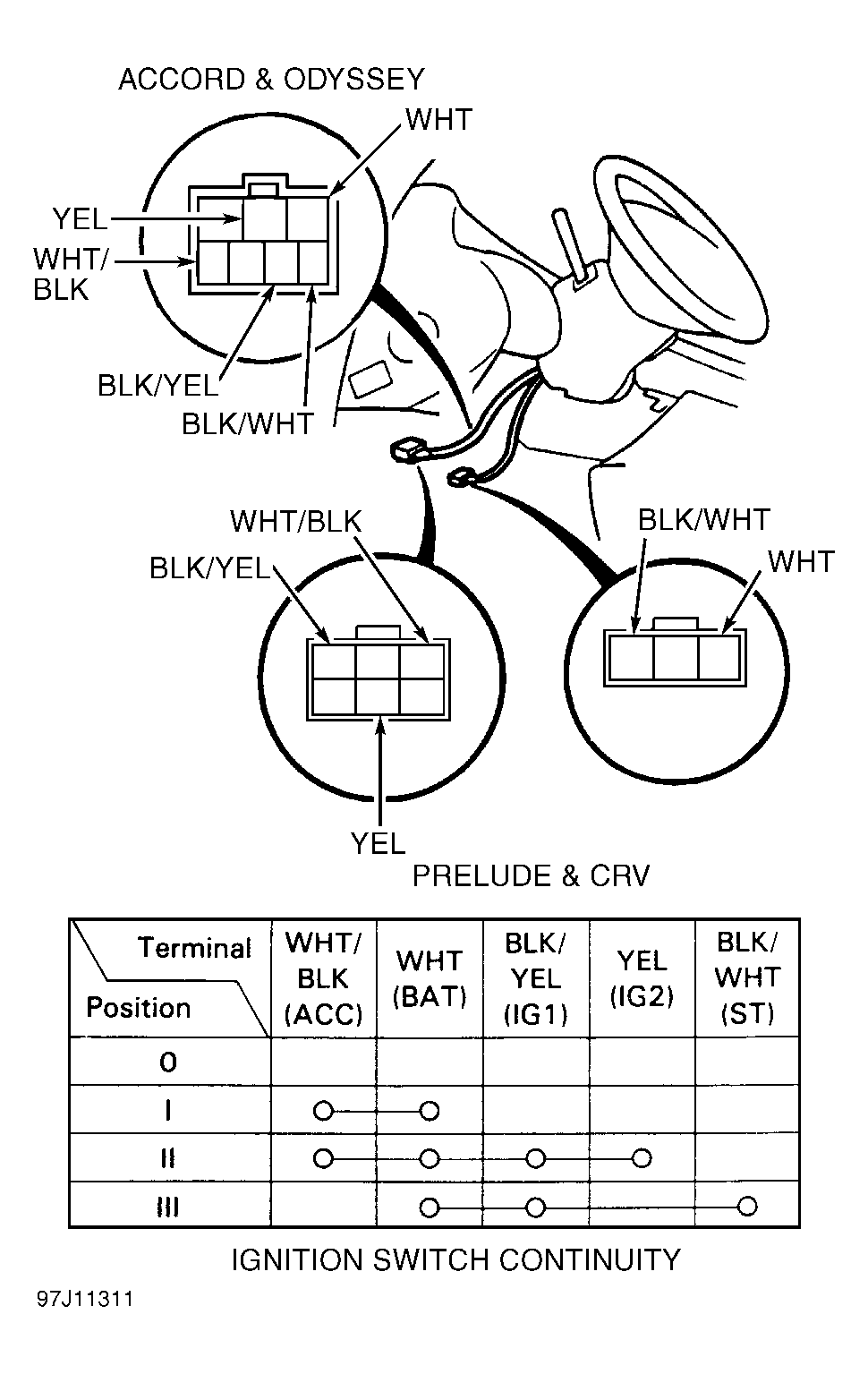

  1. Remove lower instrument panel cover and driver's side knee bolster. Disconnect 7-pin connector from steering column harness. See Figure .
  2. Using a DVOM, check continuity between specified connector terminals, with ignition switch in appropriate position. If continuity is not as specified, replace ignition switch.
Fig 1: Testing Starter Field Winding (Typical)
G97J11311Courtesy of AMERICAN HONDA MOTOR CO., INC.
