Keyless Entry/Security Transmitter Programming (SB97-13-L001)

Publication date: 1997-02-01
Reference number: SB97-13-L001

KEYLESS ENTRY/SECURITY TRANSMITTER PROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): SB97-13-L001

1996-97 OASIS (VO) ISUZU KEYLESS ENTRY SYSTEM/SECURITY SYSTEM TRANSMITTER PROGRAMMING

Model(s): 1996-97 Isuzu Oasis (VO)

Group: Accessories

Bulletin No.: SB97-13-L001

Date: February, 1997

VEHICLES AFFECTED

1996-97 Oasis (VO) models equipped with the Isuzu Keyless Entry System or optional Isuzu Security System.

SERVICE INFORMATION

This Service Bulletin provides an illustrated, easy-to-use reference for programming the Isuzu Keyless Entry System or Isuzu Security System transmitters. Refer to Fig 1 when programming transmitters for vehicles equipped with the Isuzu Keyless Entry System only. Refer to Fig 2 when programming transmitters for vehicles equipped with the optional Isuzu Security System.

The Isuzu Keyless Entry System features remote control of the vehicle power door locks only. The Isuzu Security System features the power door lock remote control and a fully functional alarm system.

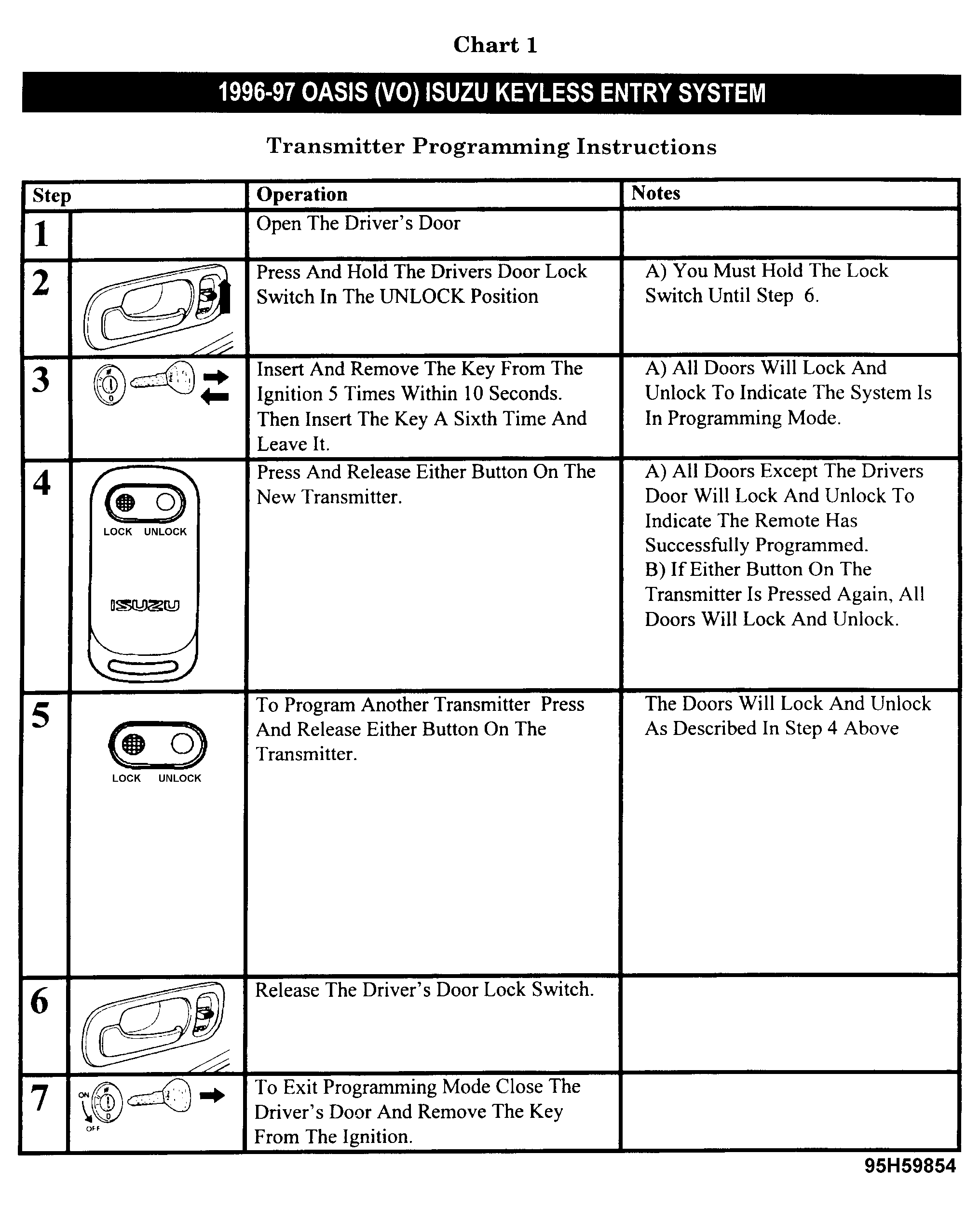

Fig 1: 1996-97 Oasis Isuzu Keyless Entry System - Chart

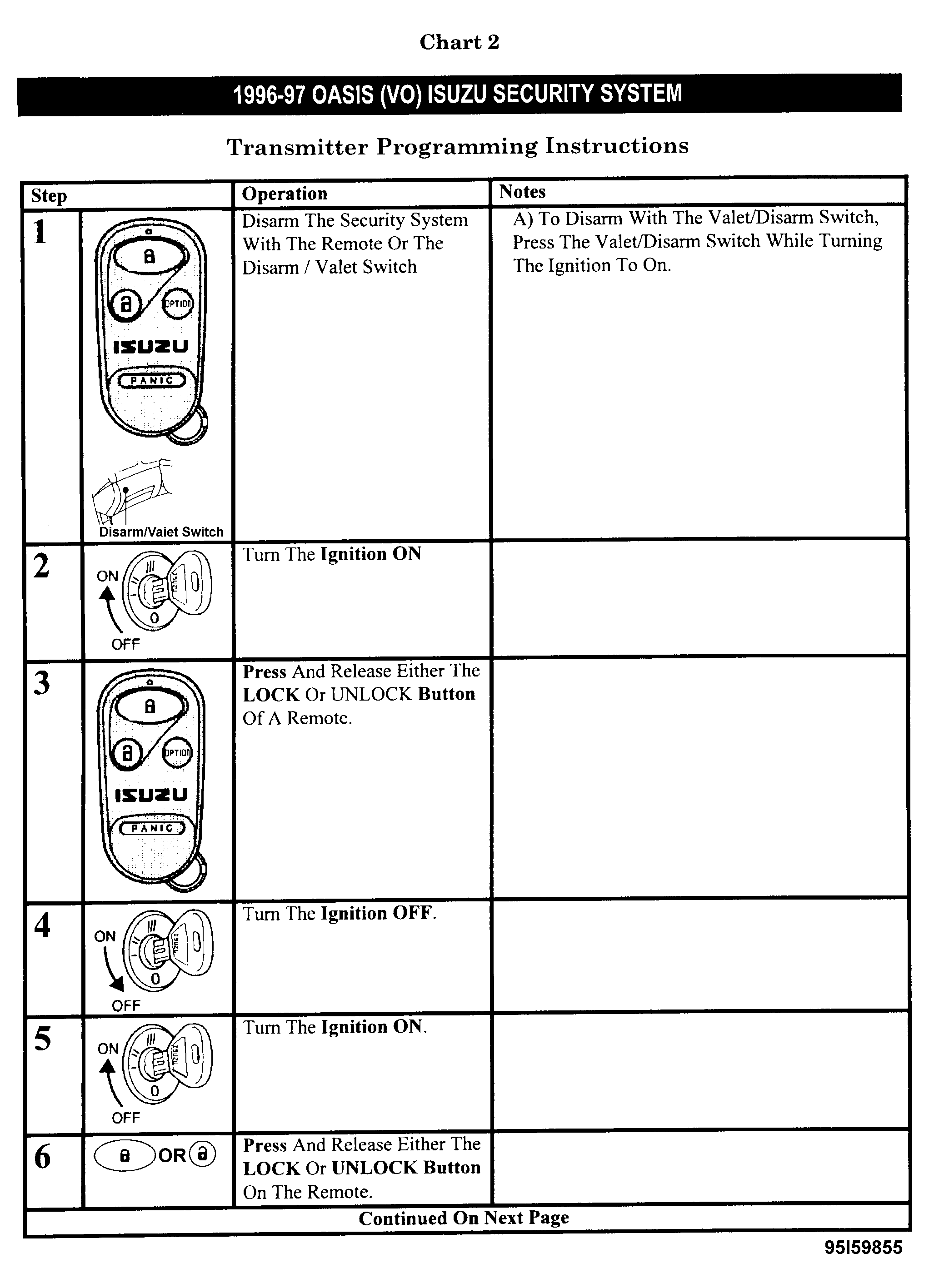

Fig 2: 1996-97 Oasis Isuzu Security System - Chart, (1 of 2)

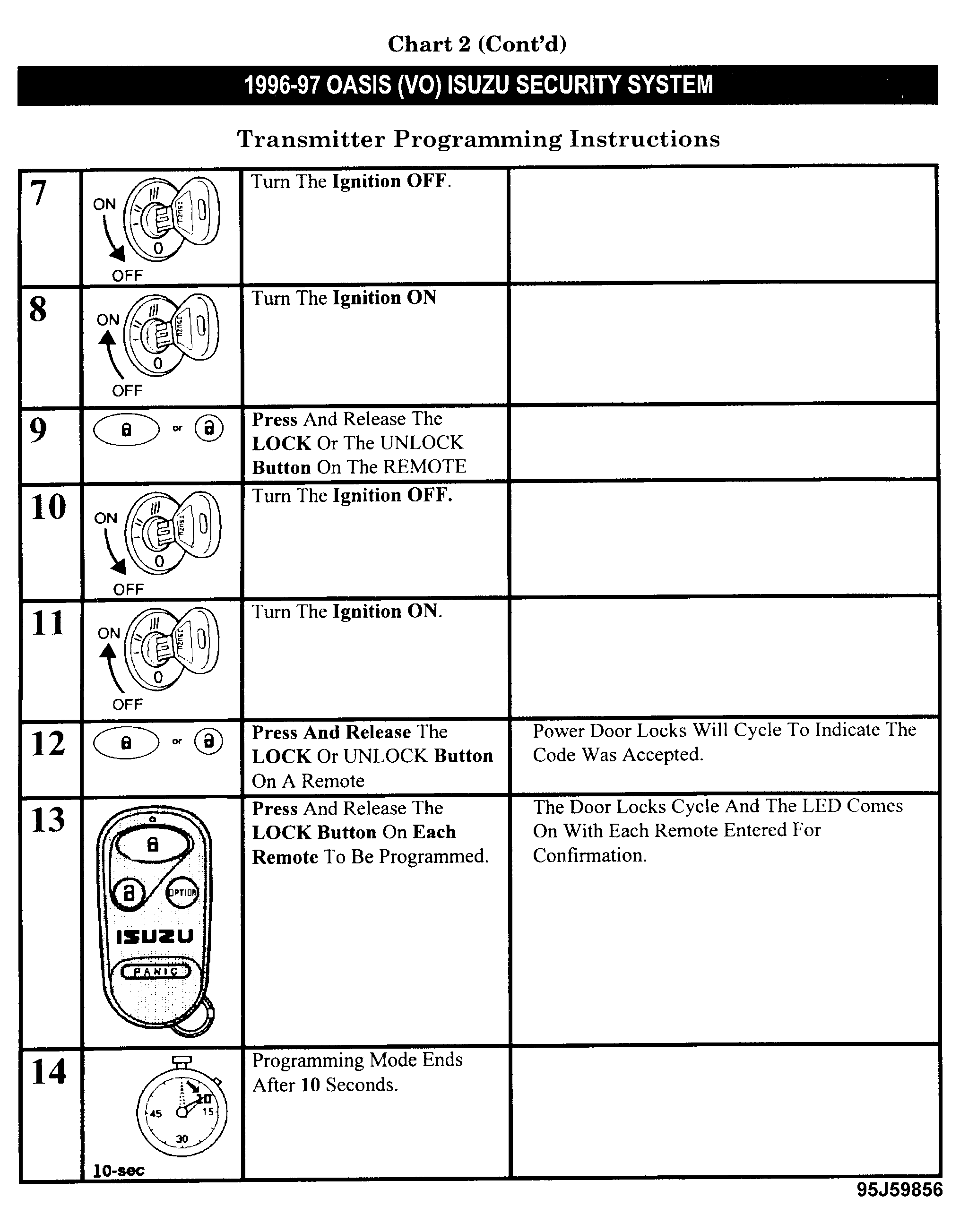

Fig 3: 1996-97 Oasis Isuzu Security System - Chart, (2 of 2)
