Anti-Theft Indicator

Remove anti-theft indicator. See ANTI-THEFT INDICATOR R & I  . Connect negative battery lead to indicator terminal No. 9 and positive lead to terminal No. 10. SeeFig 1 . Ensure indicator lights up. Replace indicator if necessary.

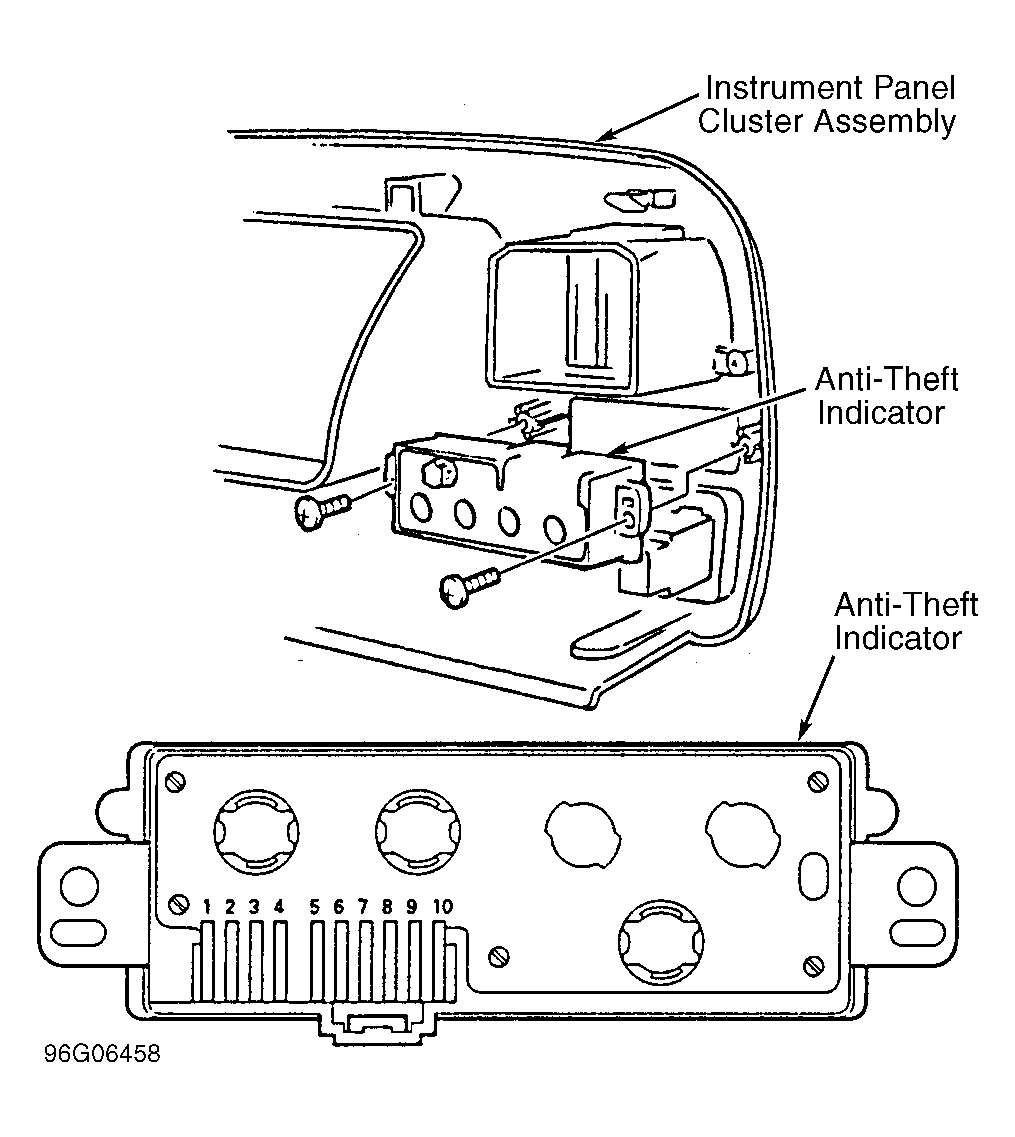

Fig 1: Testing Anti-Theft Indicator

Courtesy of ISUZU MOTOR CO.
