Component Testing: Diode

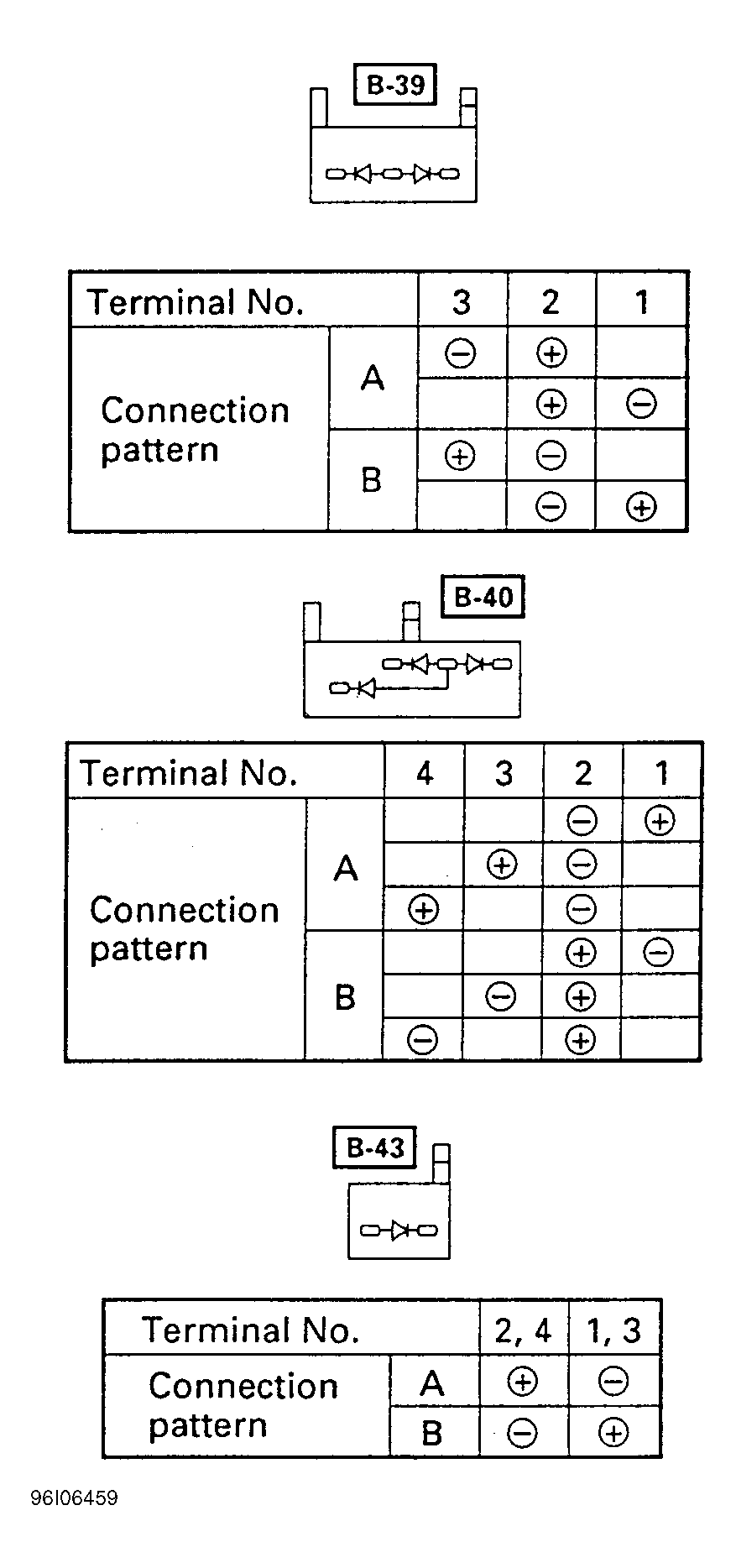

Anti-theft system diodes are located in fuse box, behind left side of instrument panel. Ensure continuity exists in either "A" or "B" when diode tester is connected to diode terminals. SeeFig 1 . Replace diode(s) as necessary.
