Cruise Control Module
WARNING: This page is about a different car, the 1997 Acura SLX. However, it is still accessible from the selected car via links, so may be relevant.

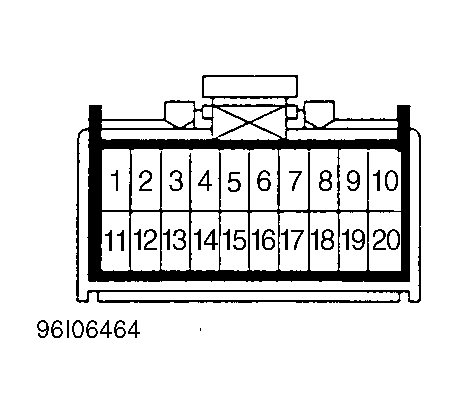

Disconnect cruise control module connector. Perform all circuit tests at cruise control module wiring harness connector. See Fig 1 . Ensure ignition and cruise control main switch are on. Unless told otherwise, check circuit between specified terminal and ground. See appropriate table:
CRUISE CONTROL MODULE HARNESS CONNECTOR TERMINAL (1)
| Between | Circuit | Test Condition | Specification | ||
|---|---|---|---|---|---|
| 1 & Ground | PCM | Ignition & Main Switch On | Continuity | ||
| 2 & Ground | Main Switch | - | Continuity To Ground | ||
| 3 & Ground | Cruise Indicator Light | Ignition Switch On | 0 Volts | ||
| 4 & Ground | Clutch Switch (M/T) | Clutch Pedal Depressed | 12 Volts | ||
| 4 & Ground | Clutch Switch (M/T) | Clutch Depressed | 12 Volts | ||
| 4 & Ground | Mode Switch (A/T) | Gear Selector In P R & N | 0 Volts | ||
| 4 & Ground | Mode Switch (A/T) | Gear Selector In D 3 2 & L | 12 Volts | ||
| 5 & Ground | Vent Valve | See CRUISE CONTROL ACTUATOR Test | 62-72 Ohms | ||
| 6 & Ground | Ground | - | Continuity To Ground | ||
| 7 & Ground | Vacuum Pump | See CRUISE CONTROL ACTUATOR Test | 2 Amps Maximum | ||
| 9 & 2 | Resume Switch | Resume Switch On | Continuity | ||
| 10 & 2 | Set Switch | Set Switch On | Continuity | ||
| 12 & Ground | Starter | Ignition Switch In Start Position | 12 Volts | ||
| 14 & Ground | Safety Valve | See CRUISE CONTROL ACTUATOR Test | 62-72 Ohms | ||
| 15 & Ground | Main Switch | Ignition Switch In Start Position | 12 Volts | ||
| 16 & 2 | Brakelight Switch | Pedal Depressed | No Continuity | ||
| 16 & 2 | Brakelight Switch | Pedal Released | Continuity | ||
| 19 & Ground | Vehicle Speed Sensor | - | 13.5K Ohms To Infinite | ||
| 20 & Ground | Brakelight Switch | Pedal Released/ Depressed | 0 Volts/12 Volts | ||
|
|||||
