Main Switch

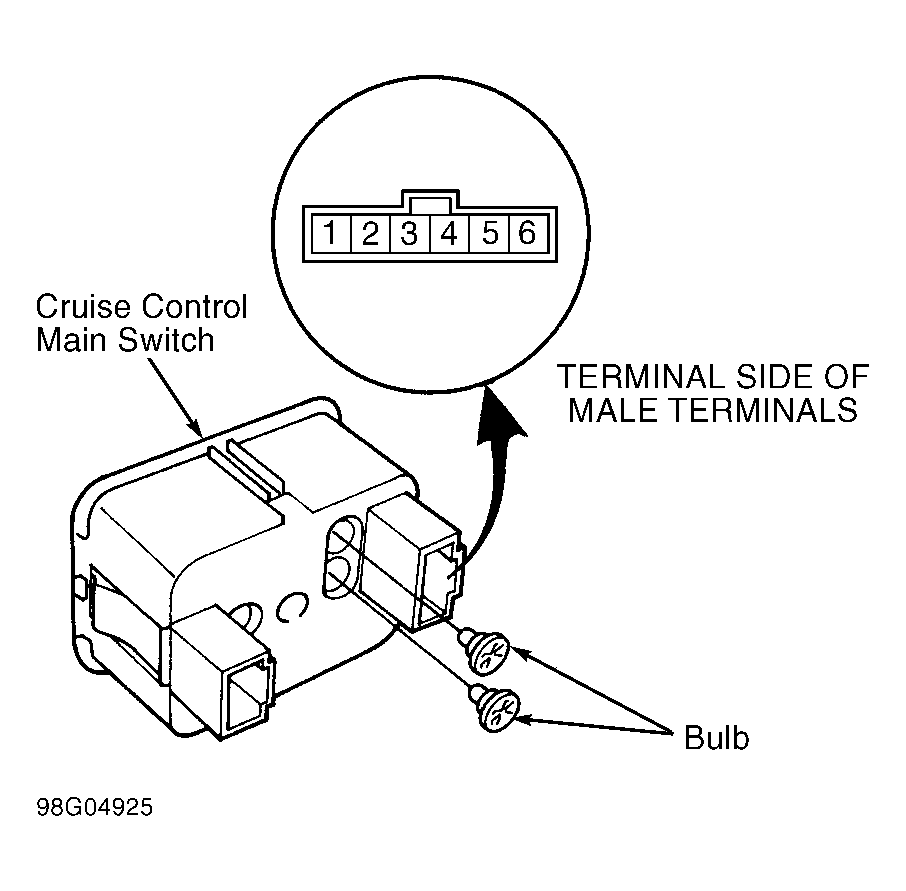

Turn ignition off. Remove and disconnect main switch. Ensure main switch is off. Using a DVOM, check for continuity between specified main switch terminals, with switch in appropriate position. See MAIN SWITCH CONTINUITY TEST table. See Fig 1 . If continuity is not as specified, replace main switch.
MAIN SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Off | 1 & 2; 5 & 6 |
| On | 2, 3 & 4; 5 & 6 |
