Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/T Reverse Diode | Behind dash, right of steering column, taped to harness. |
| Auxiliary Fuse Holder | On left side of underdash fuse/relay box. |
| Foglight In-Line Fuse | On right front of engine compartment, on battery bracket. |
| Rear Blower Motor In-Line Fuse | On underside of ceiling, right side of rear A/C unit. |

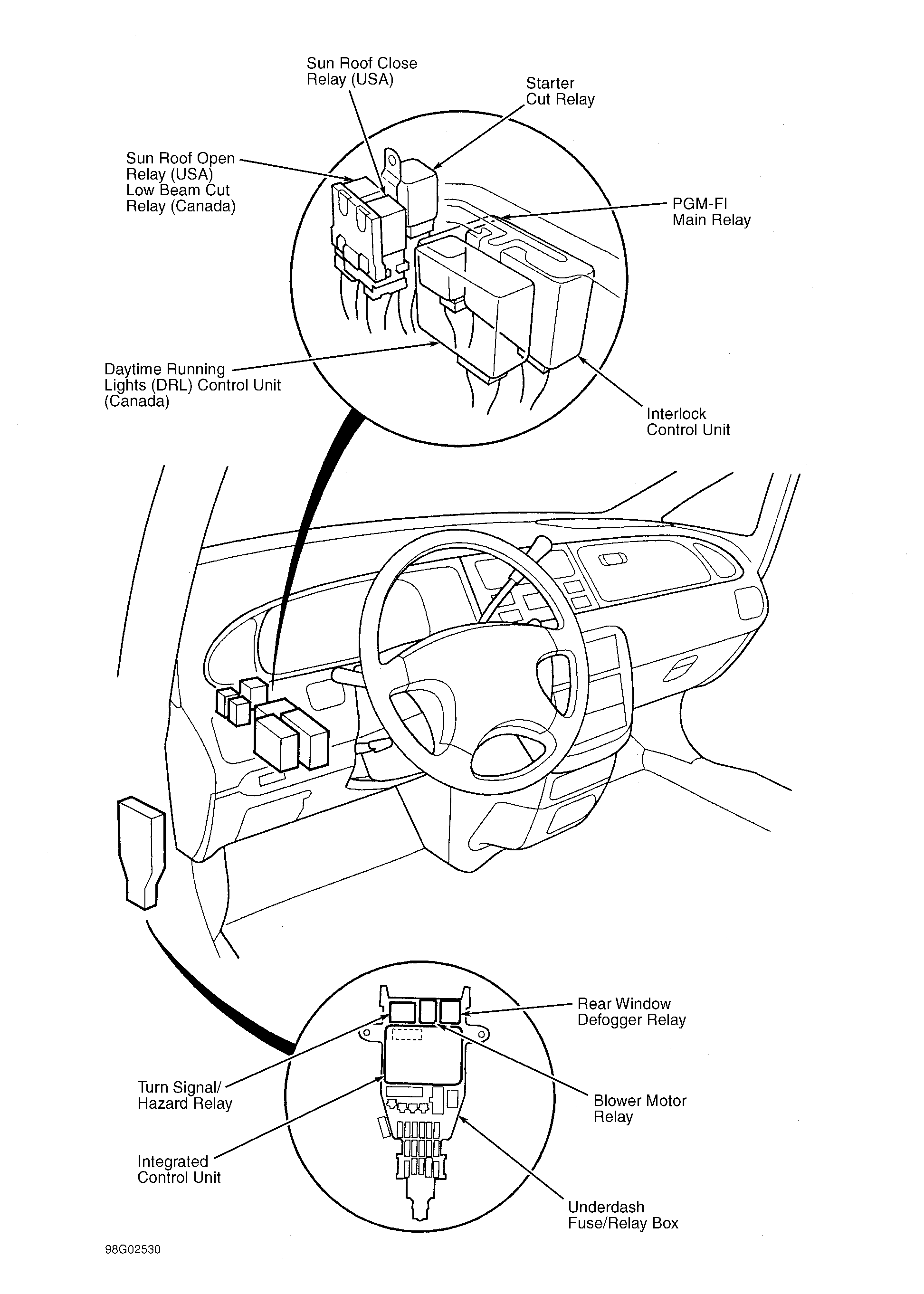

| Underdash Fuse/Relay Box | Behind left kick panel. See Figure . |

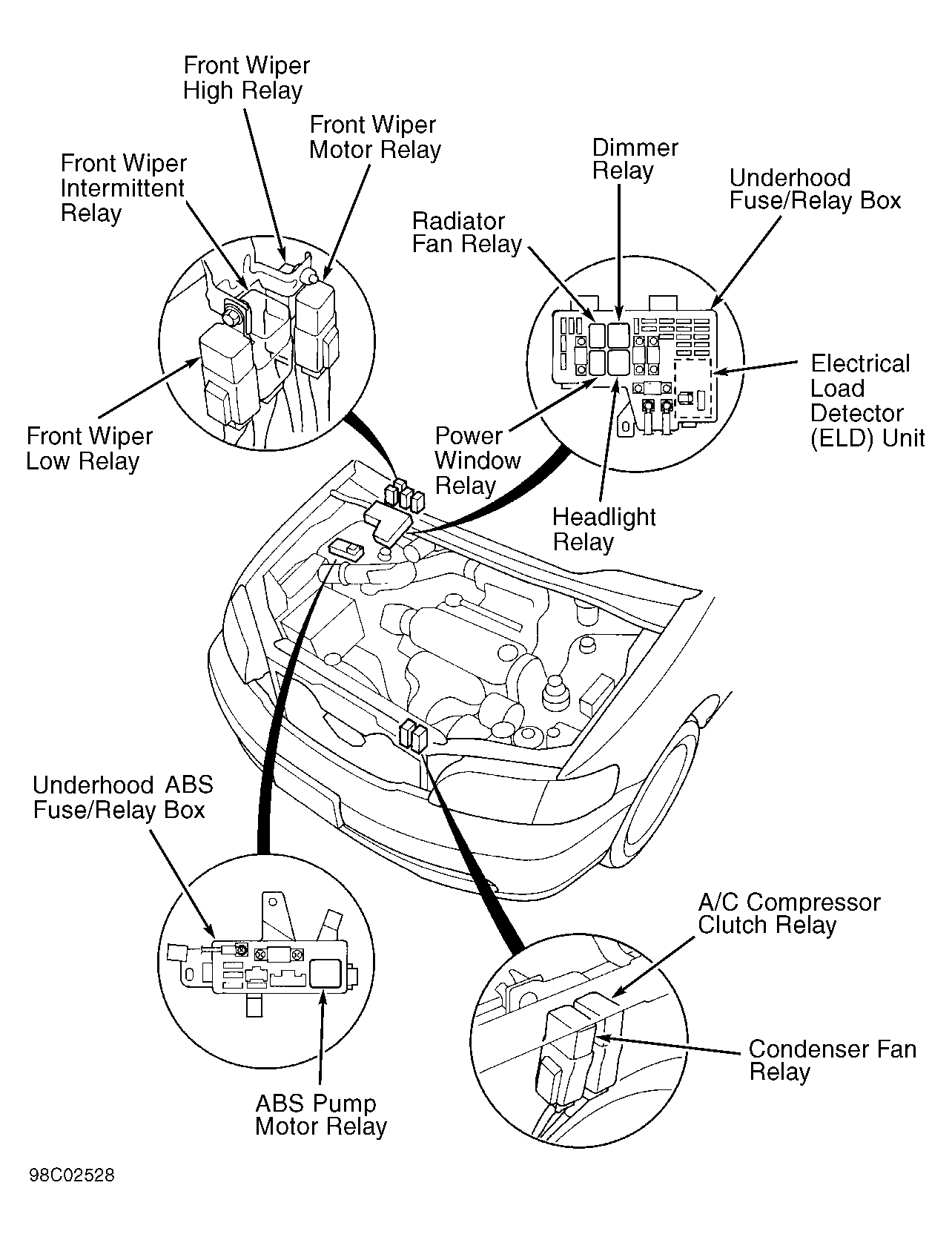

| Underhood ABS Fuse/Relay Box | On right rear of engine compartment. See Figure . |
| Underhood Fuse/Relay Box | On right rear corner of engine compartment. See Figure . |
