Actuator/Solenoid/Cable Replacement: Removal/Installation

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 4P connector (A) from the actuator.

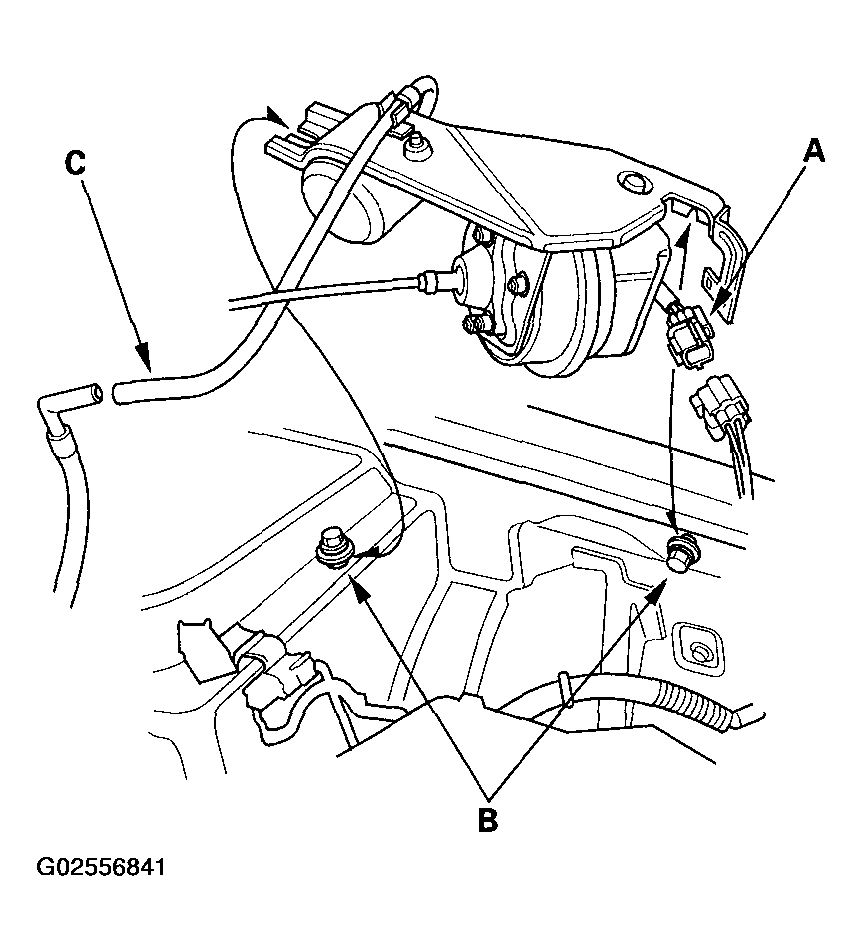

Fig 1: Disconnect The 4P Connector From The Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the two mounting bolts (B), and remove the actuator with the bracket.
Disconnect the vacuum hose (C).
Remove the three nuts (A).

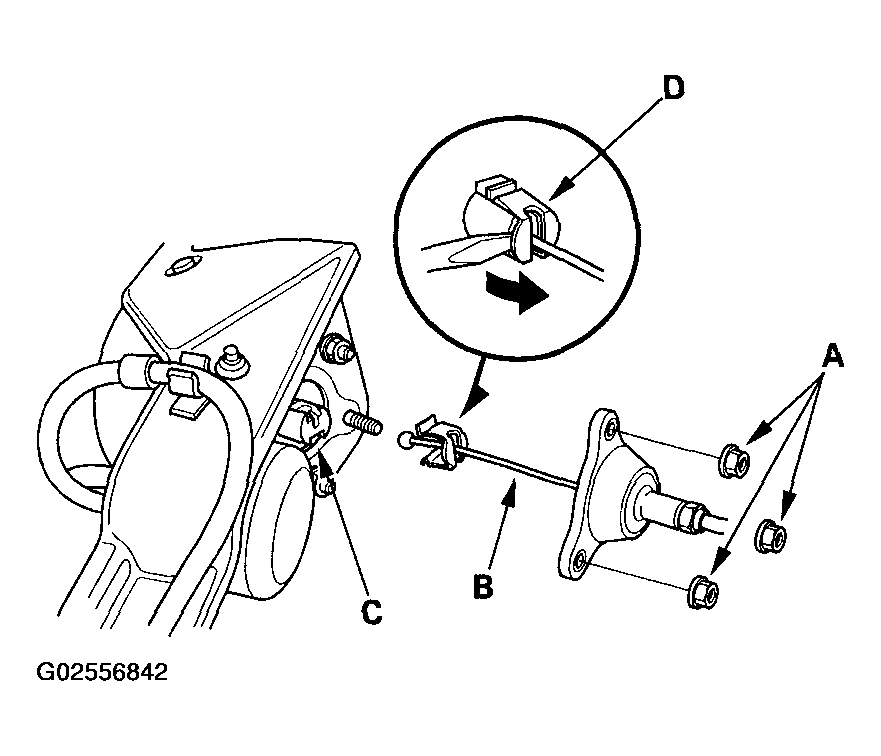

Fig 2: Removing Three Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the actuator cable (B) from the actuator rod (C) by releasing the clip (D) from the rod with a screwdriver.
Loosen the locknut (A), then disconnect the actuator cable (B) from the throttle linkage (C).

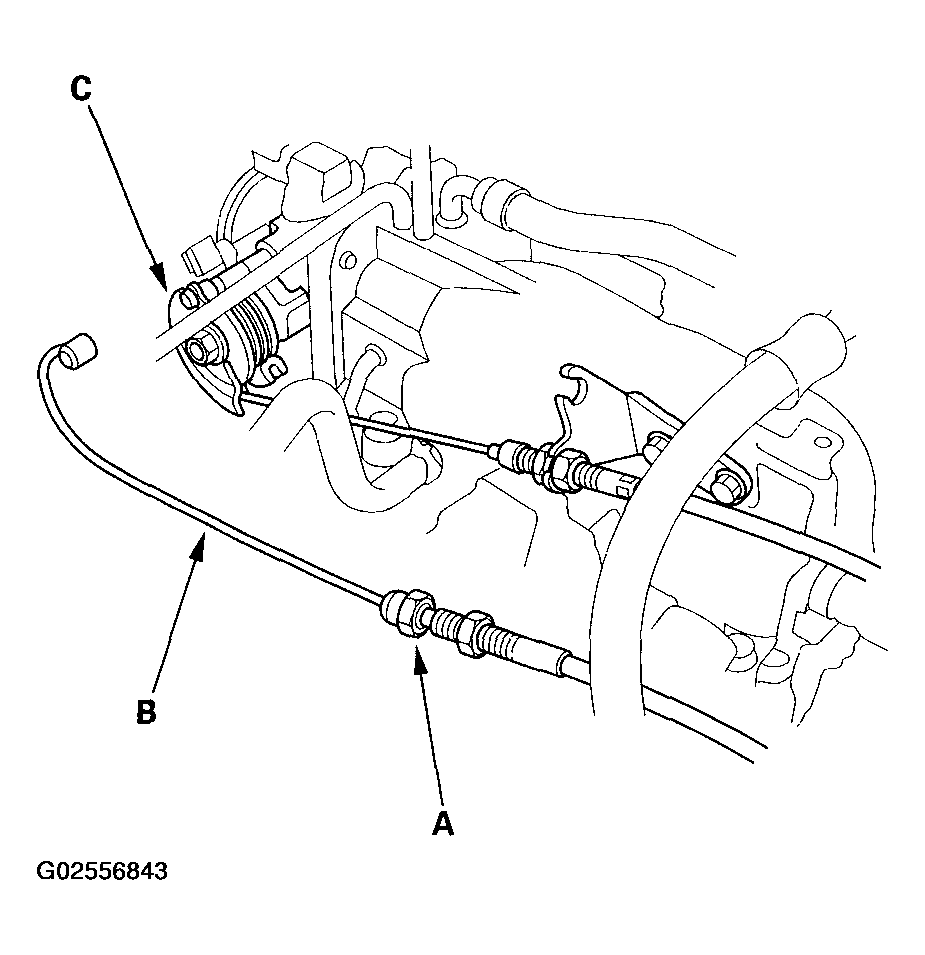

Fig 3: Disconnecting Actuator Cable From Throttle Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
