Driver's Multiplex Control Unit
WARNING: This page is about a different car, the 1998 Honda Prelude. However, it is still accessible from the selected car via links, so may be relevant.

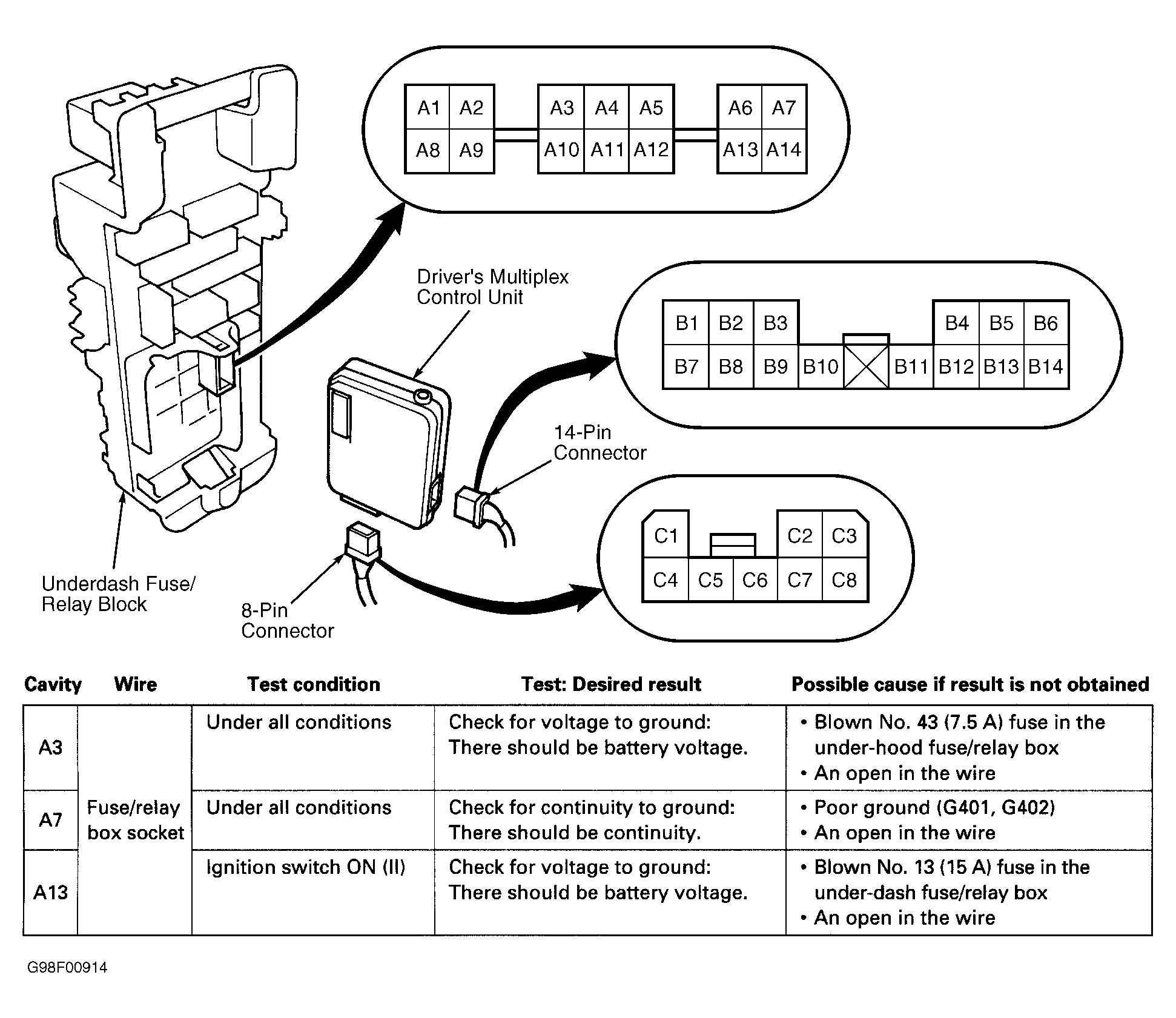

Turn ignition off. Remove driver's multiplex control unit from fuse/relay block behind left kick panel. See Fig 1 . Check terminals and contacts. Repair as necessary and retest system. If terminals and contacts are okay, perform input tests. See Fig 1 . If test results are as specified, replace driver's multiplex control unit (mounted on fuse/relay block). See REMOVAL & INSTALLATION .
