Runout Limit

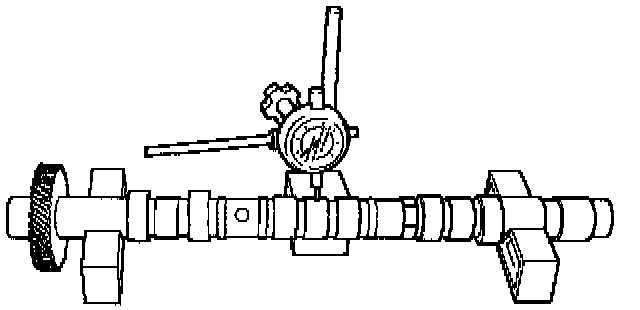

Place the camshaft on V-blocks. Slowly rotate the camshaft and measure the runout with a dial indicator. Replace the camshaft if the runout exceeds the specified limit.

Runout Limit 0.1 mm (0.0039 inch)
