Shift Speed Chart





SHIFT SPEED CHART

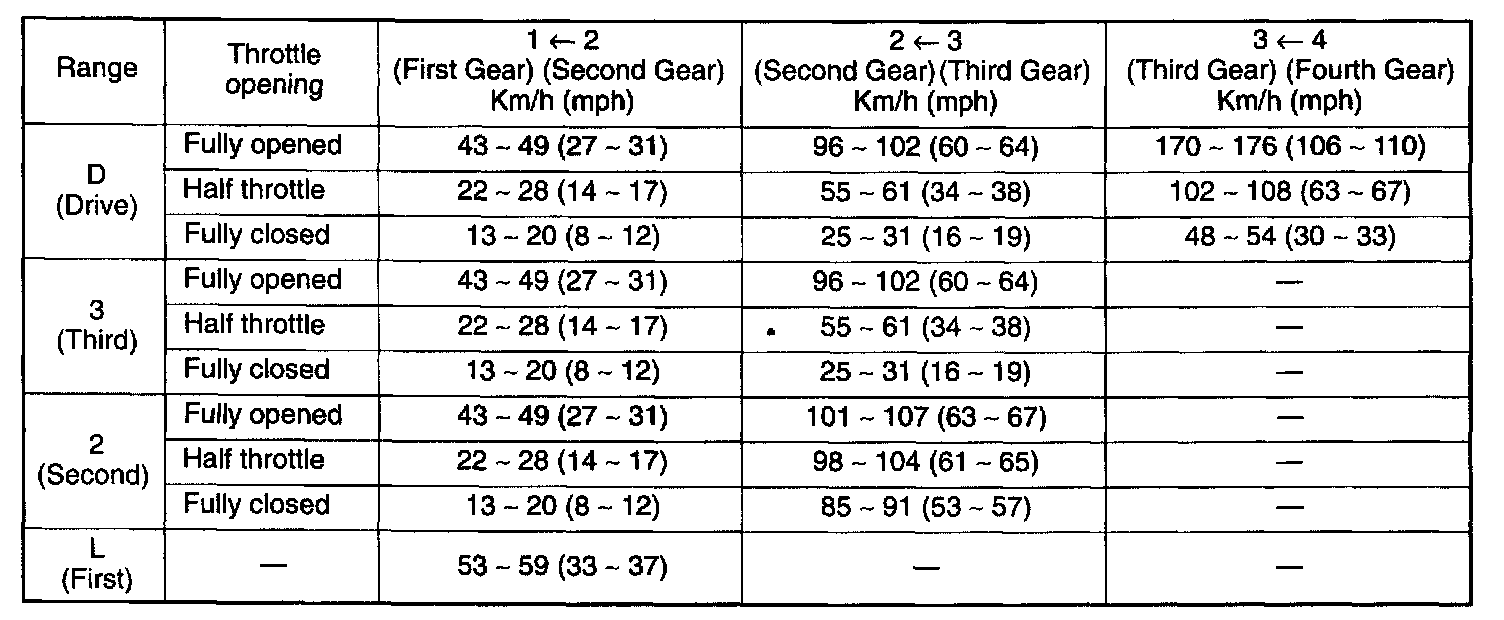

"Normal Mode"
Upshift





Downshift

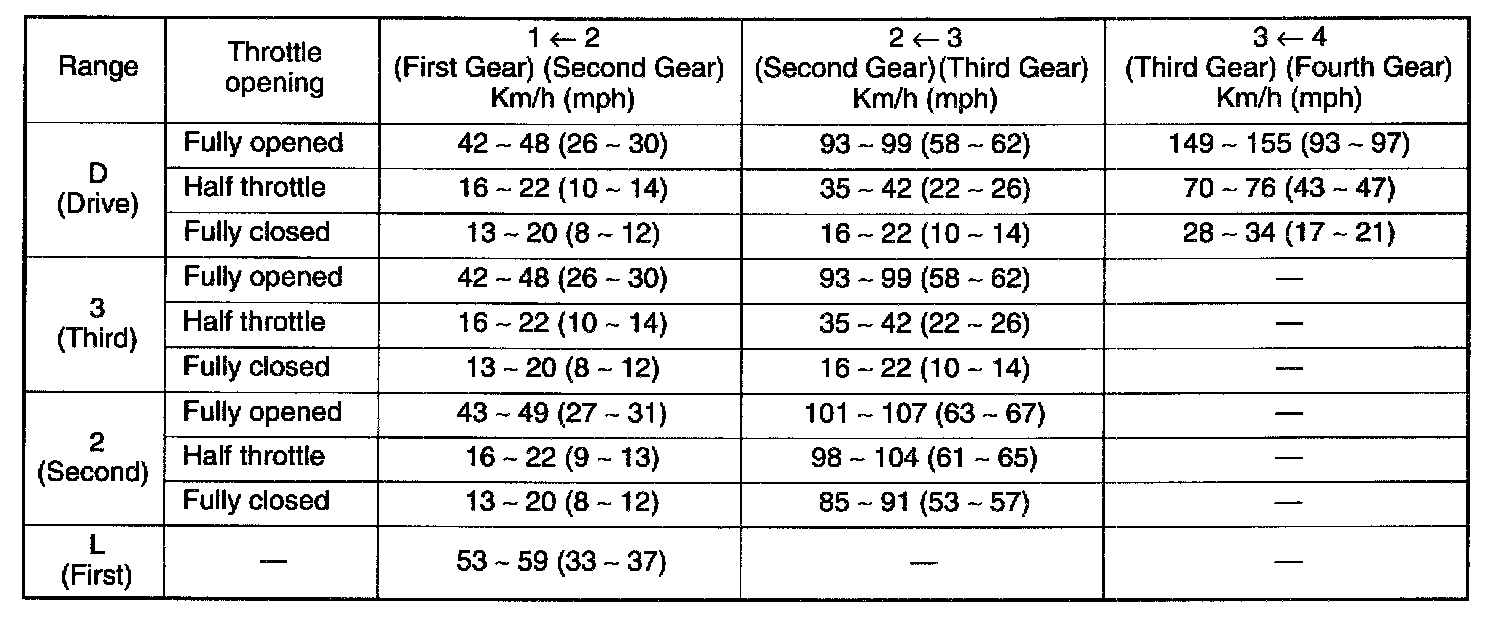

"Power Mode"





Upshift





Downshift





"Winter Mode"
