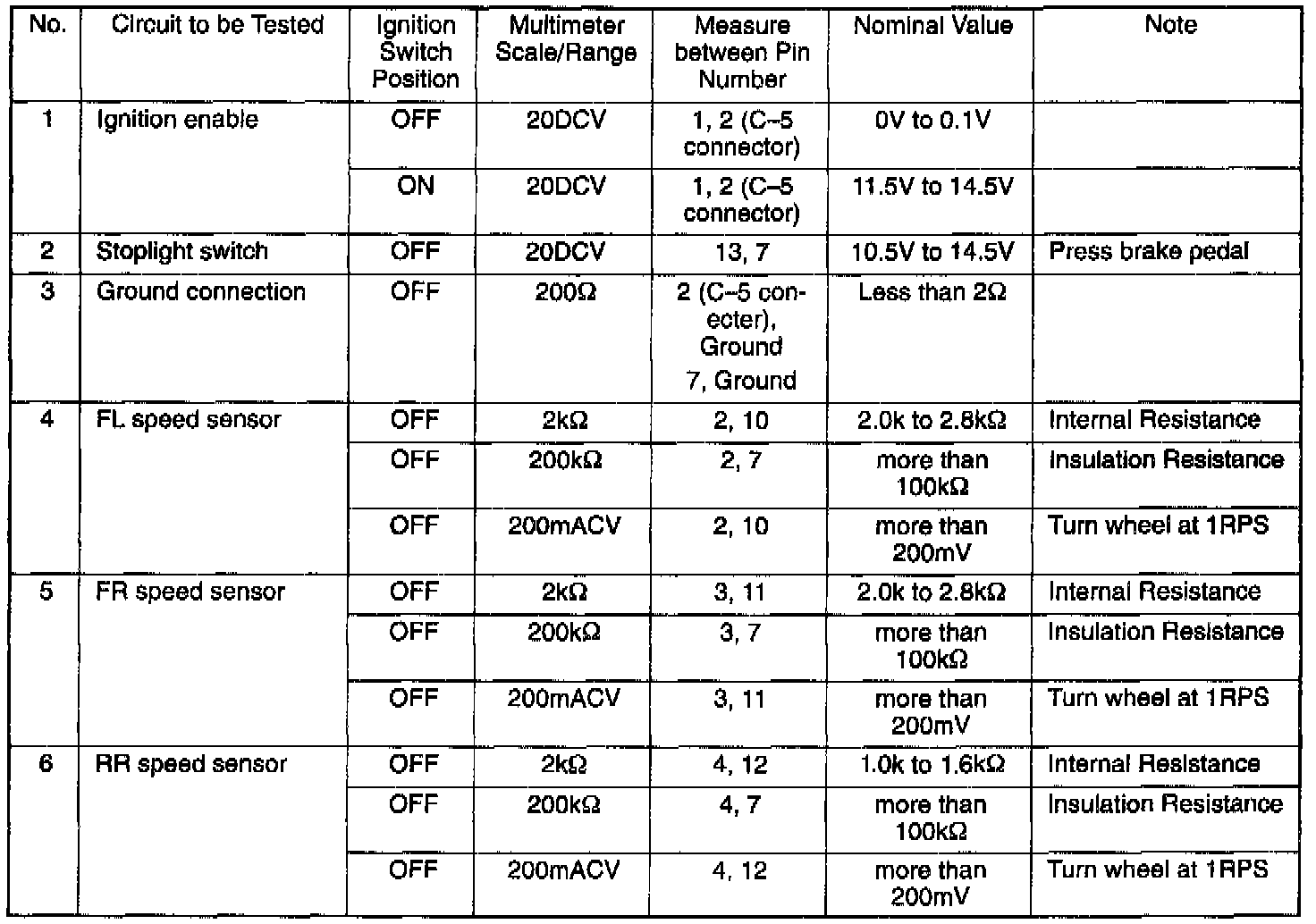

Electronic Brake Control Module: Testing and Inspection





- Disconnect Electronic Hydraulic Control Module.
- Perform checks with high impedance digital multimeter J-39200 or equivalent.
