Pinout Values and Diagnostic Parameters

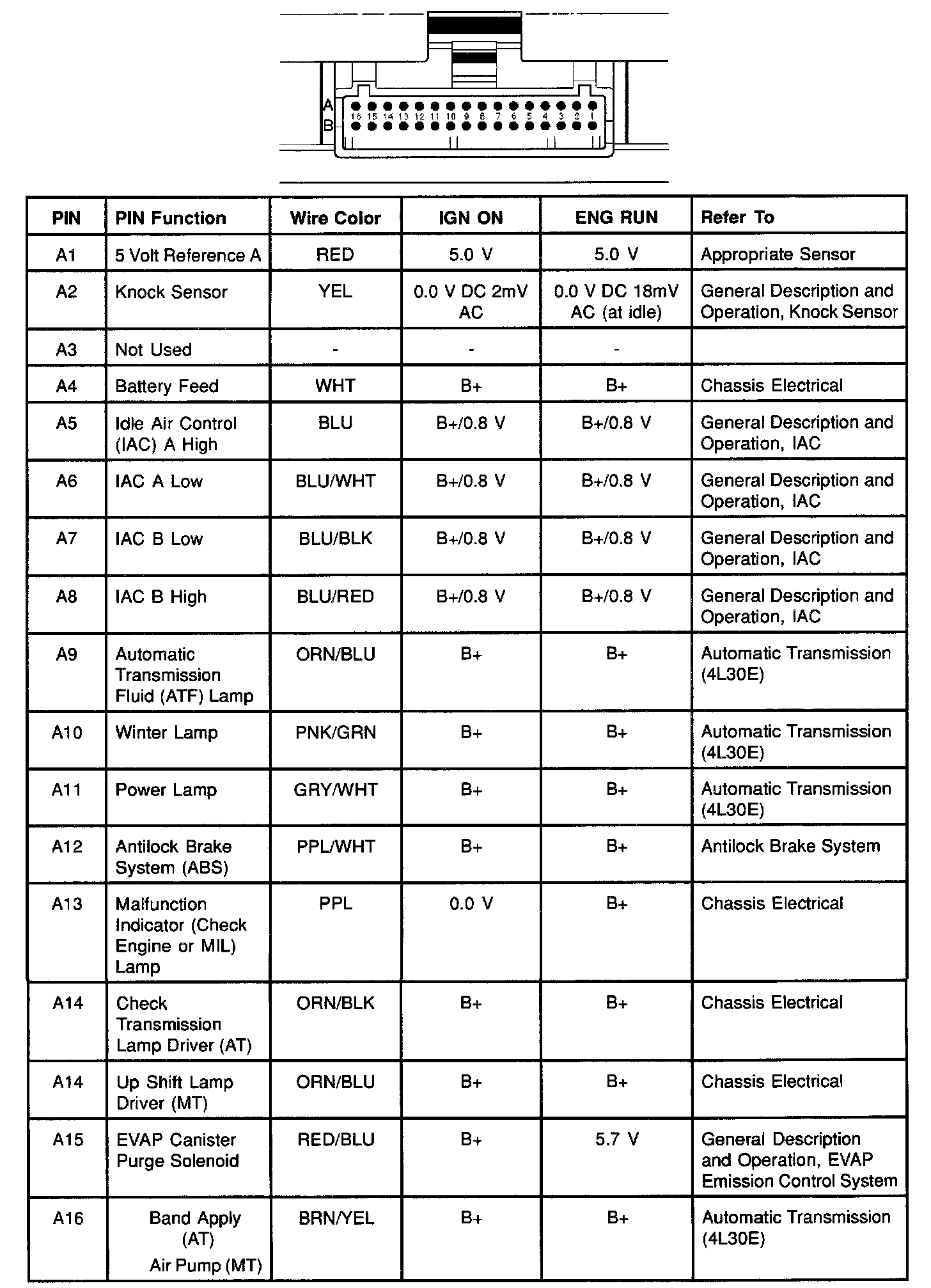

PCM 32-Way Red Connector - Row A:

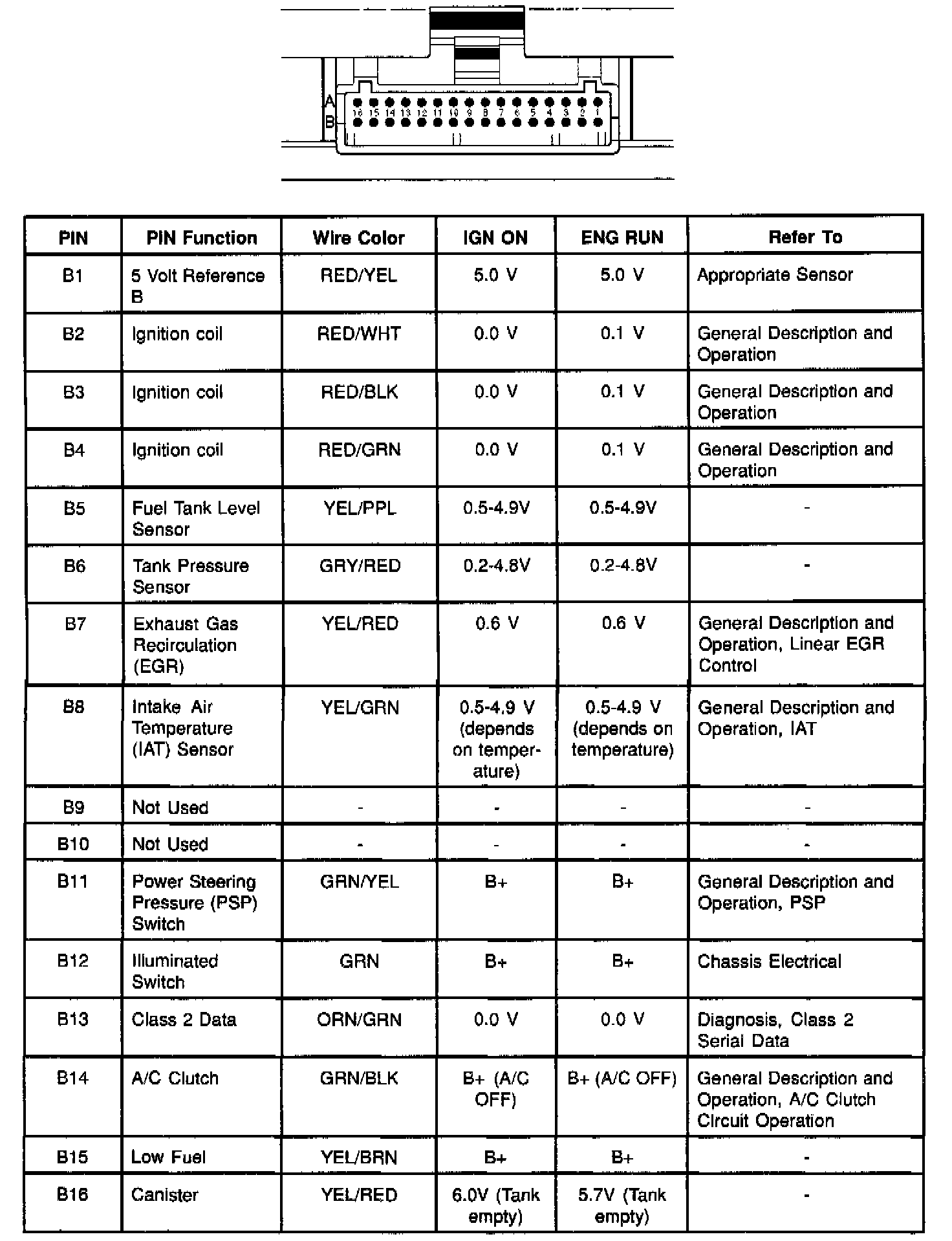

PCM 32-Way Red Connector - Row B:

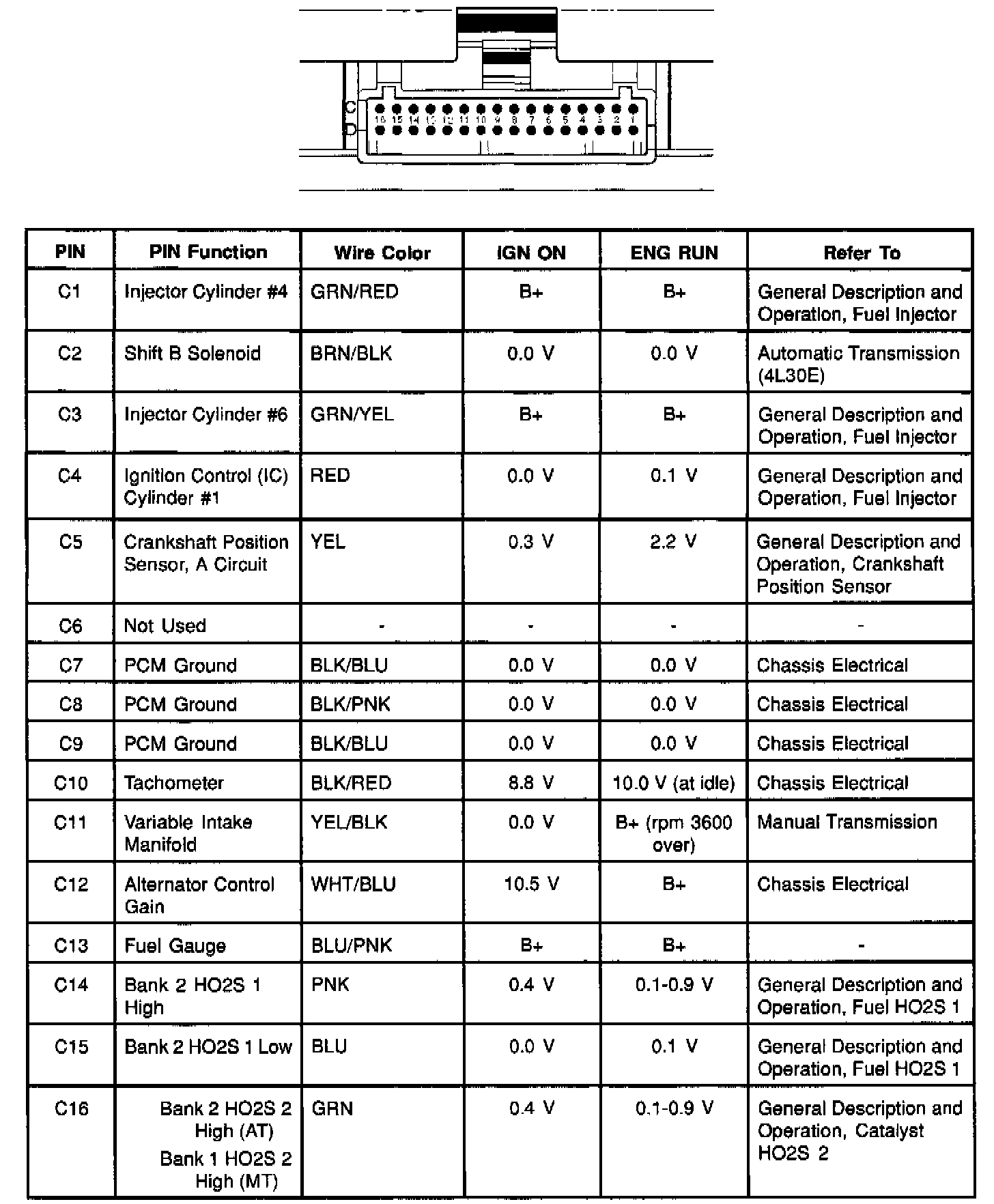

PCM 32-Way White Connector - Row C:

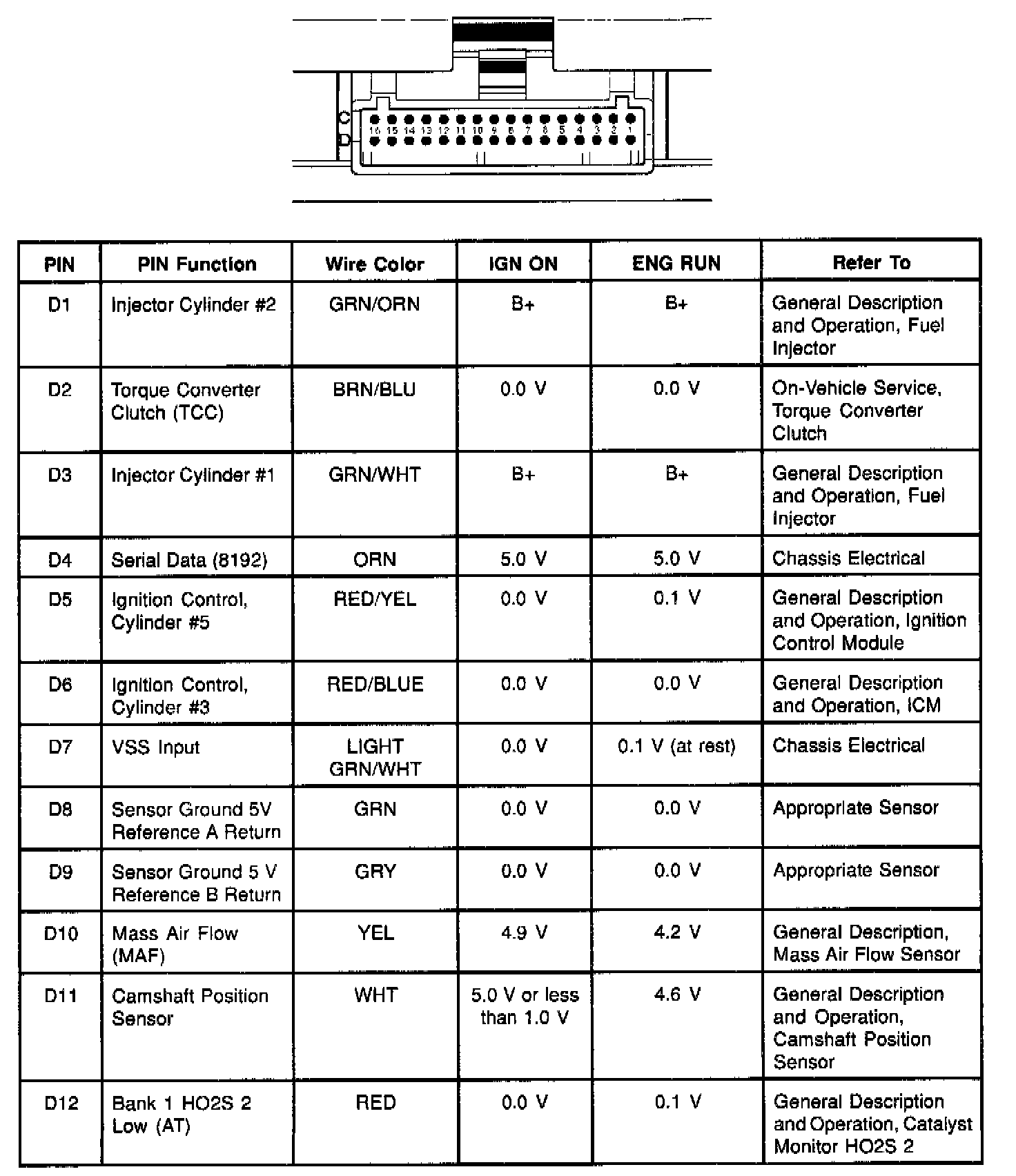

PCM 32-Way White Connector - Row D (Part 1 Of 2):




PCM 32-Way White Connector - Row D (Part 2 Of 2):

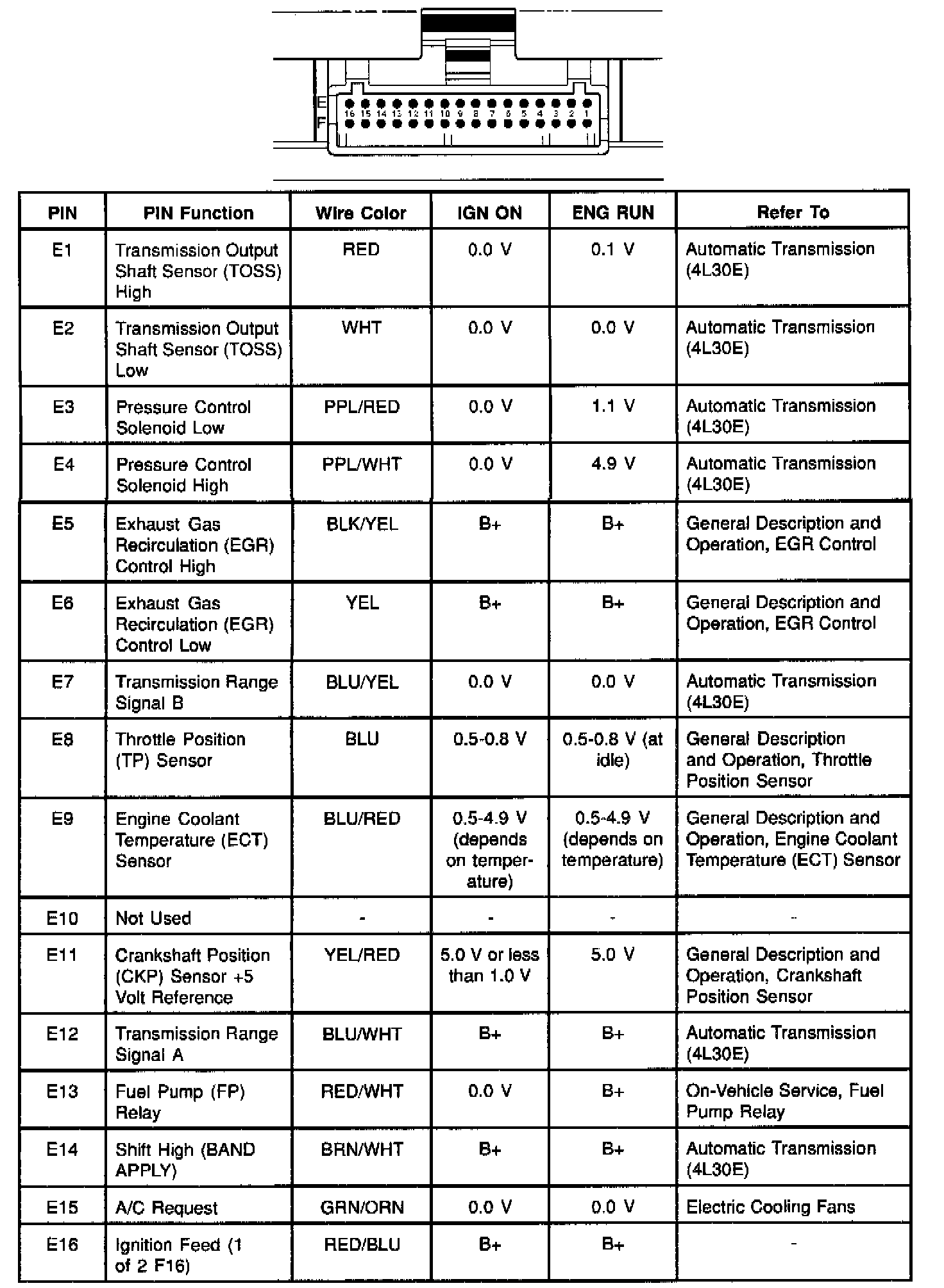

PCM 32-Way Blue Connector - Row E:

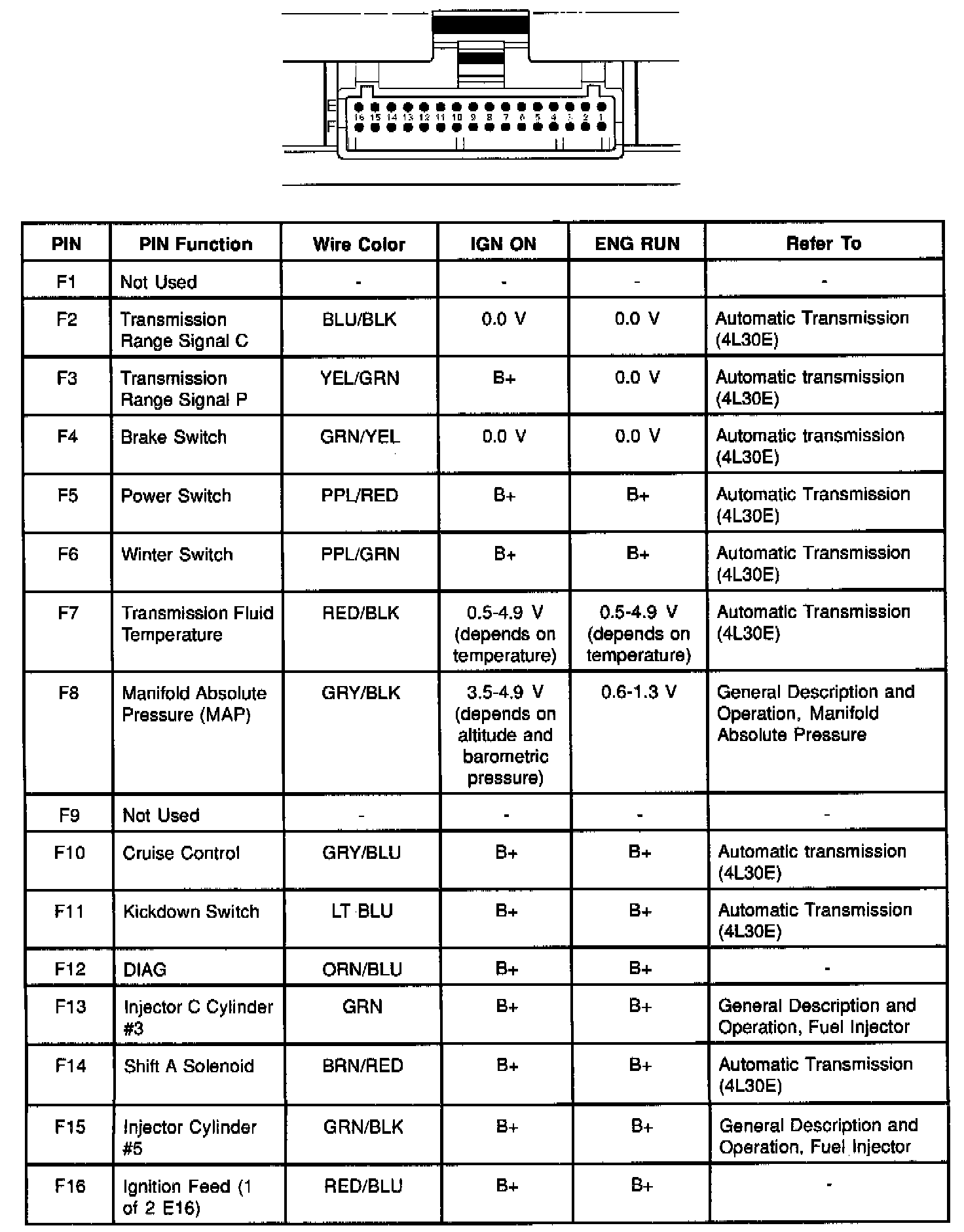

PCM 32-Way Blue Connector - Row F:
