Crankshaft

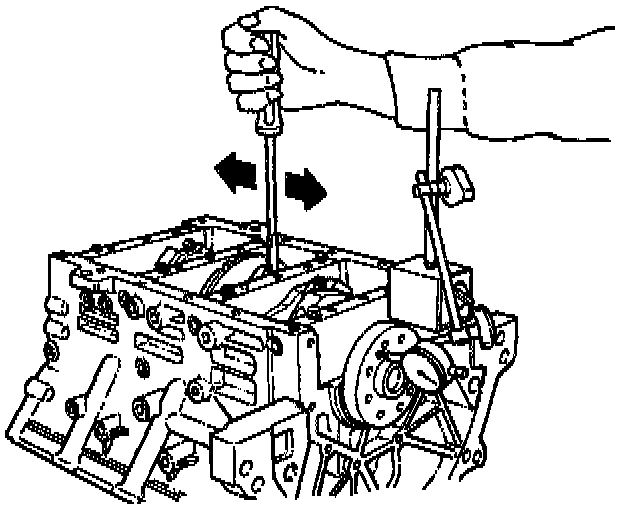

CRANKSHAFT THRUST CLEARANCE:
Standard 0.06 mm - 24 mm (0.0024 inch - 0.0094 inch)
Limit 0.30 mm (0.0118 inch)

NOTE: If the thrust clearance exceeds the specified limit, replace the thrust bearings as a set.

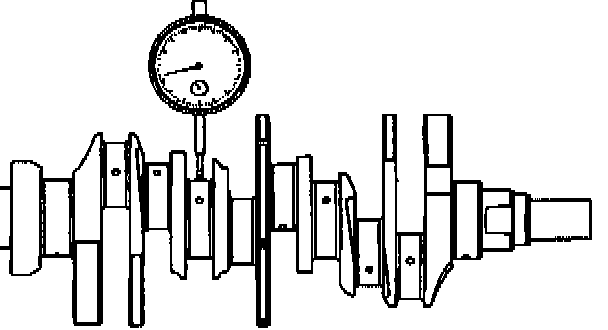

CRANKSHAFT RUNOUT 0.04 mm (0.0016 inch)


NOTE: If the crankshaft runout exceeds the specified limit, the crankshaft must be replaced.


MAIN JOURNAL
DIAMETER 63.918 mm - 63.933 mm (2.5165 inch - 2.5170 inch)

CRANK PIN
DIAMETER 53.922 mm - 53.937 mm (2.1229 inch - 2.1235 inch)

UNEVEN WEAR
LIMIT 0.005 mm (0.0002 inch)
