Warpage

Torque:
Temporary 29 Nm (21 ft. lbs.)
Final 64 Nm (47 ft. lbs.)

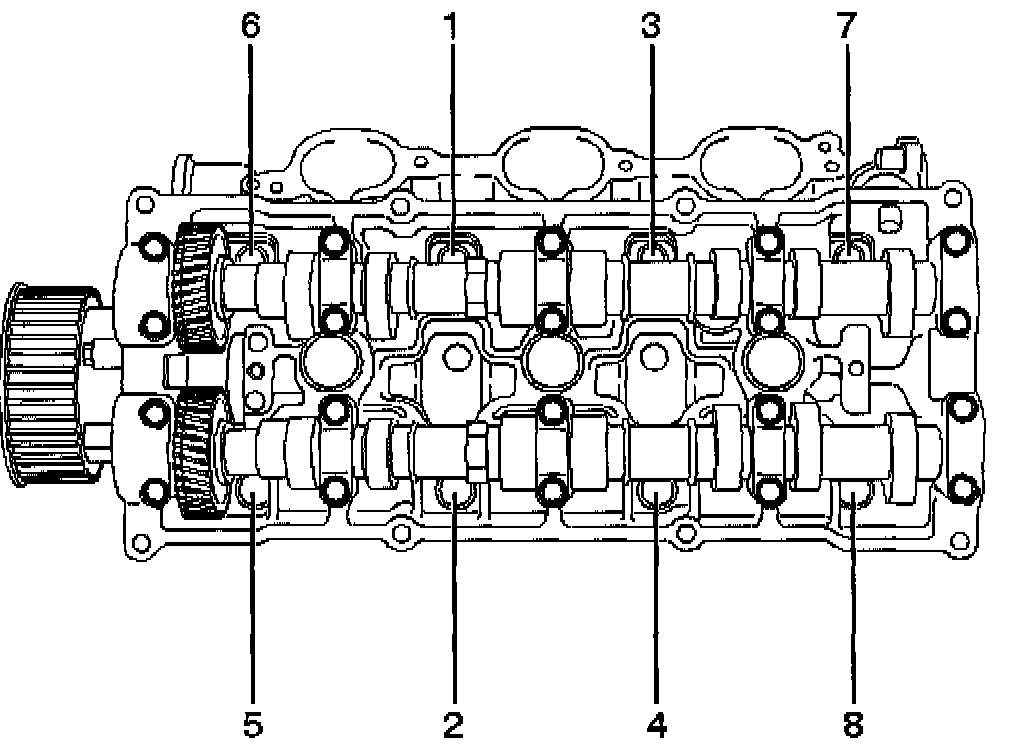

NOTE: Tighten bolts in numerical order as shown in the illustration to the specified torque.

NOTE: Do not reuse cylinder head bolts. Do not apply any lubricant to the cylinder head bolts.
