Engine Control Module

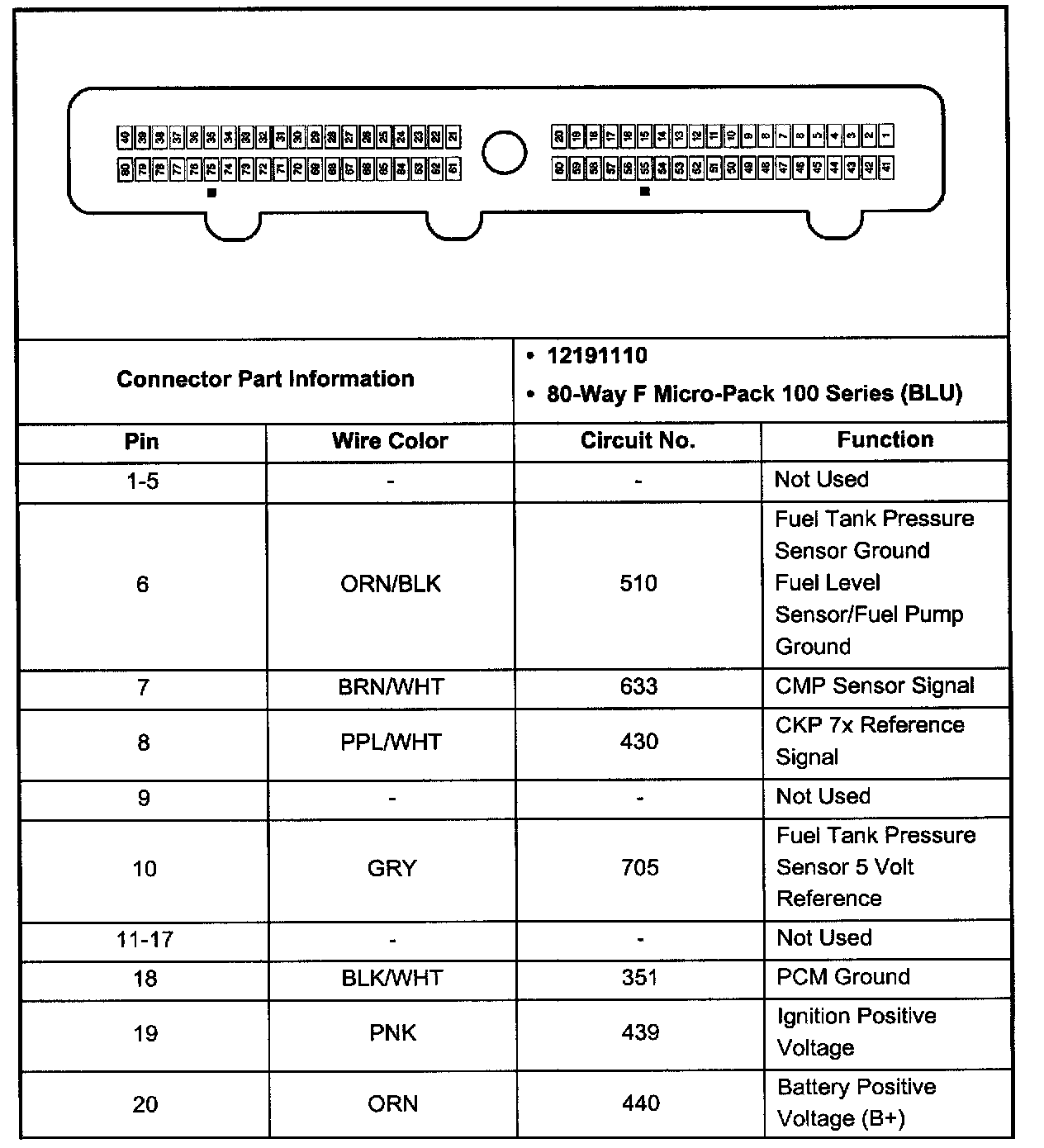

Powertrain Control Module (PCM) Connector C1 (Pin 1 - 20):

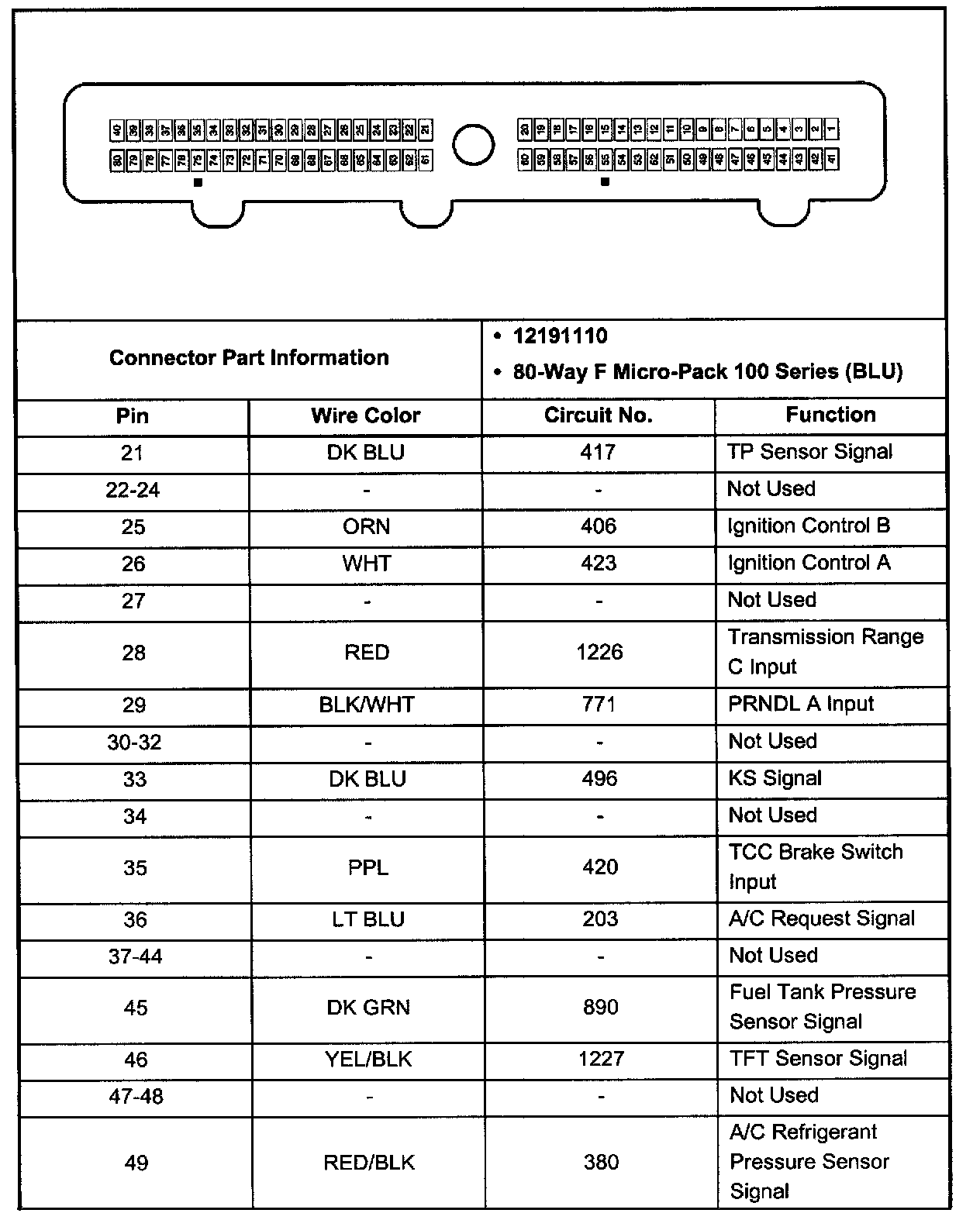

Powertrain Control Module (PCM) Connector C1 (Pin 21 - 49):

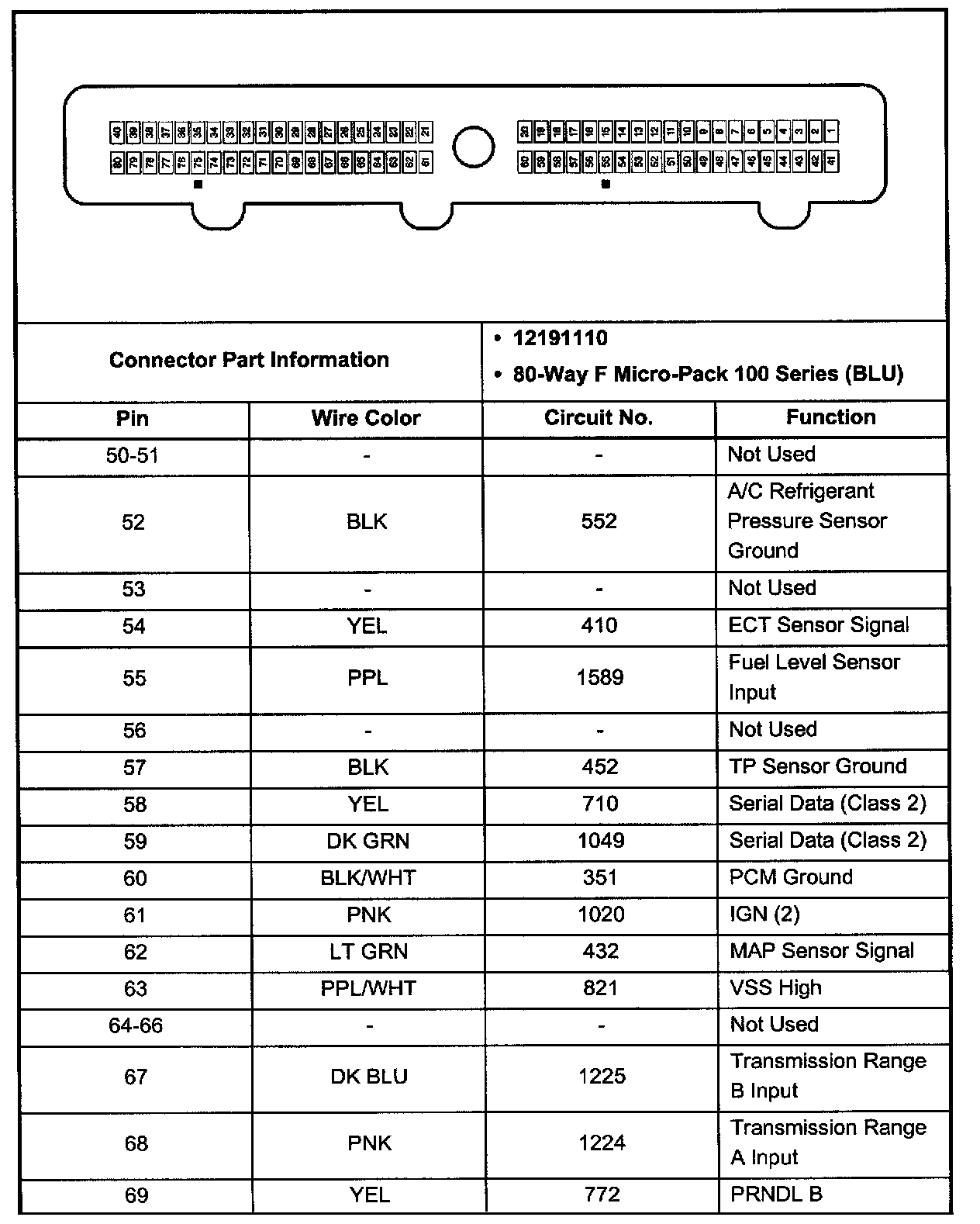

Powertrain Control Module (PCM) Connector C1 (Pin 50 - 69):

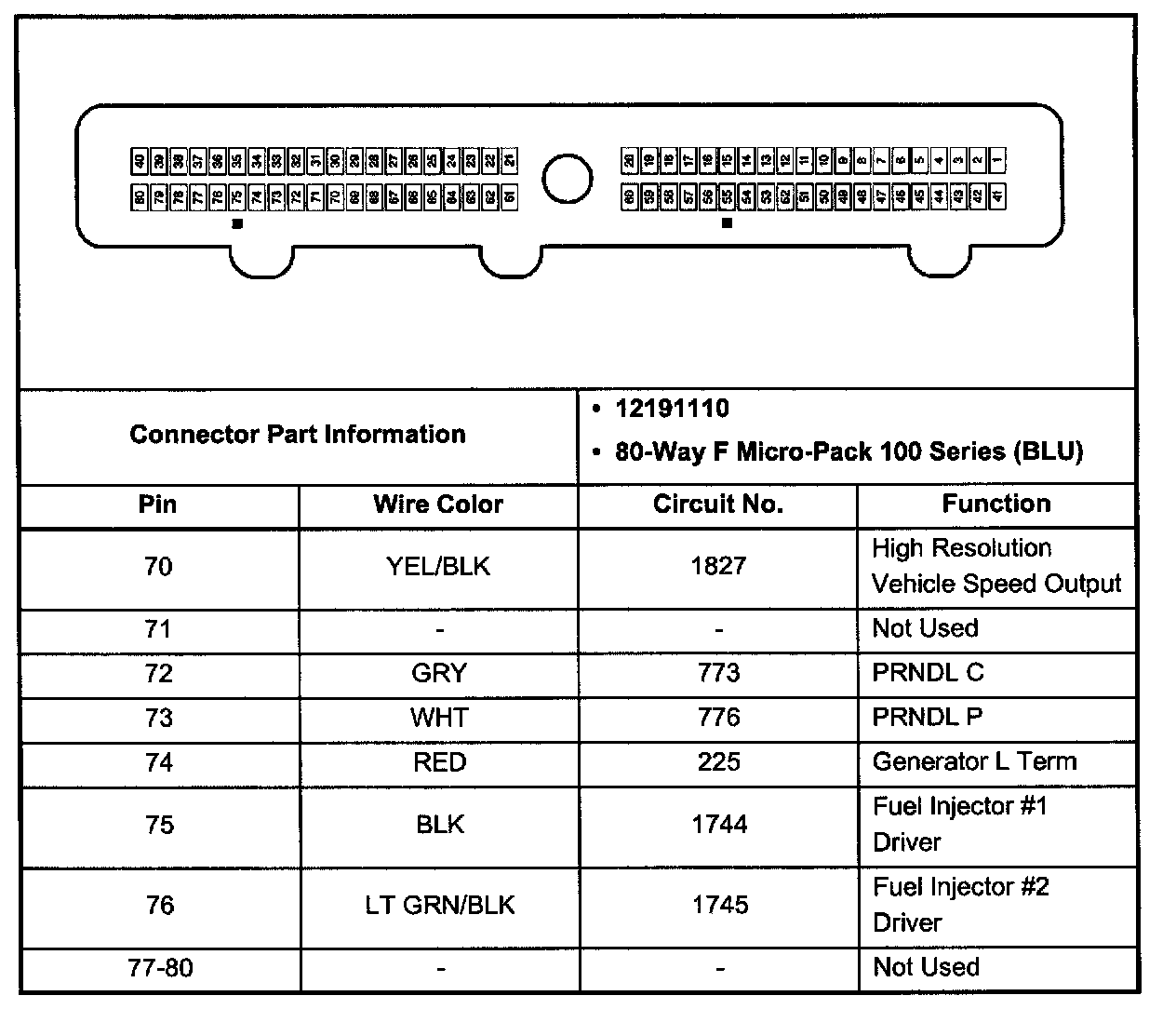

Powertrain Control Module (PCM) Connector C1 (Pin 70 - 80):

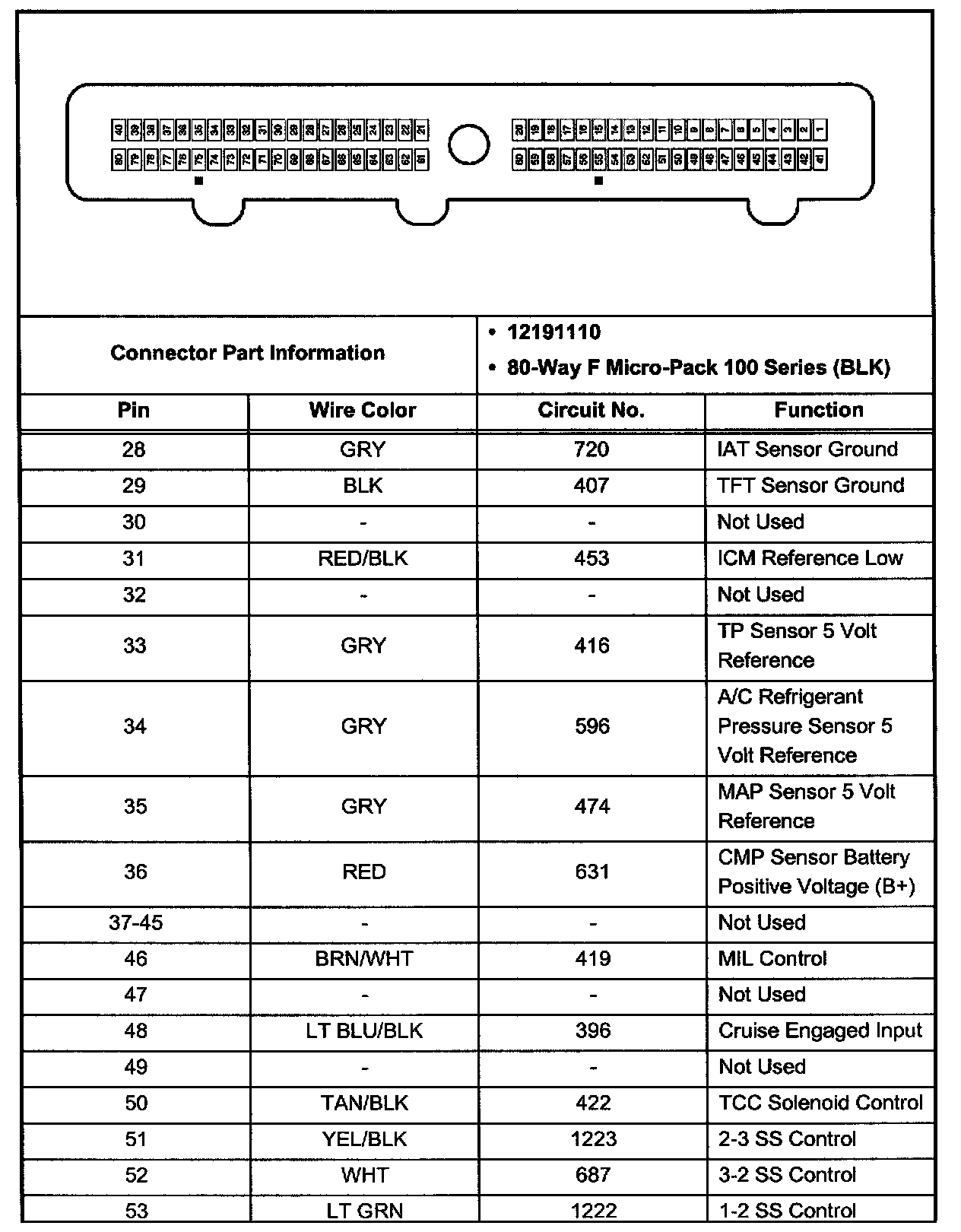

Powertrain Control Module (PCM) Connector C2 (Pin 28 - 53):

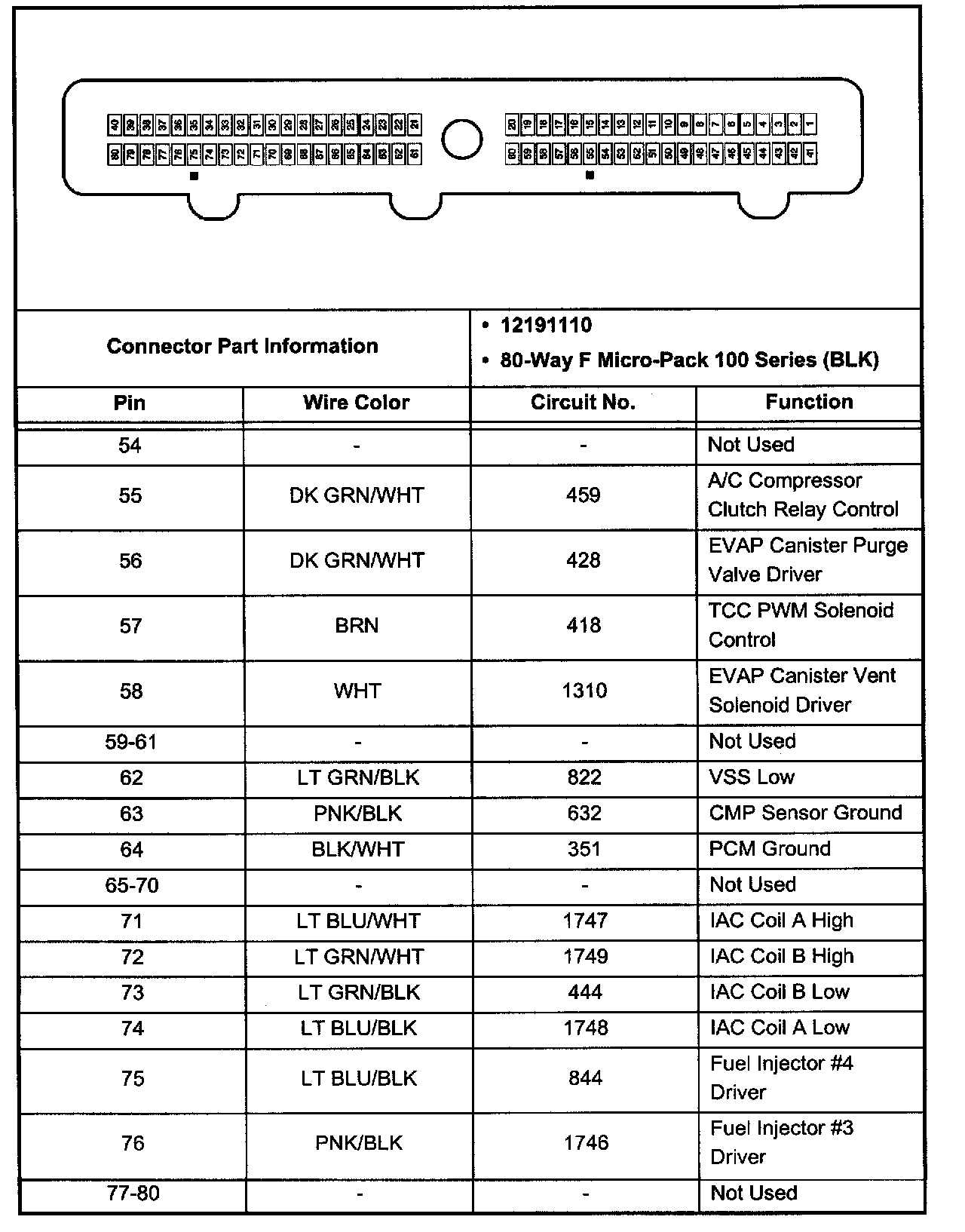

Powertrain Control Module (PCM) Connector C2 (Pin 54 - 80):
