Connector Locations

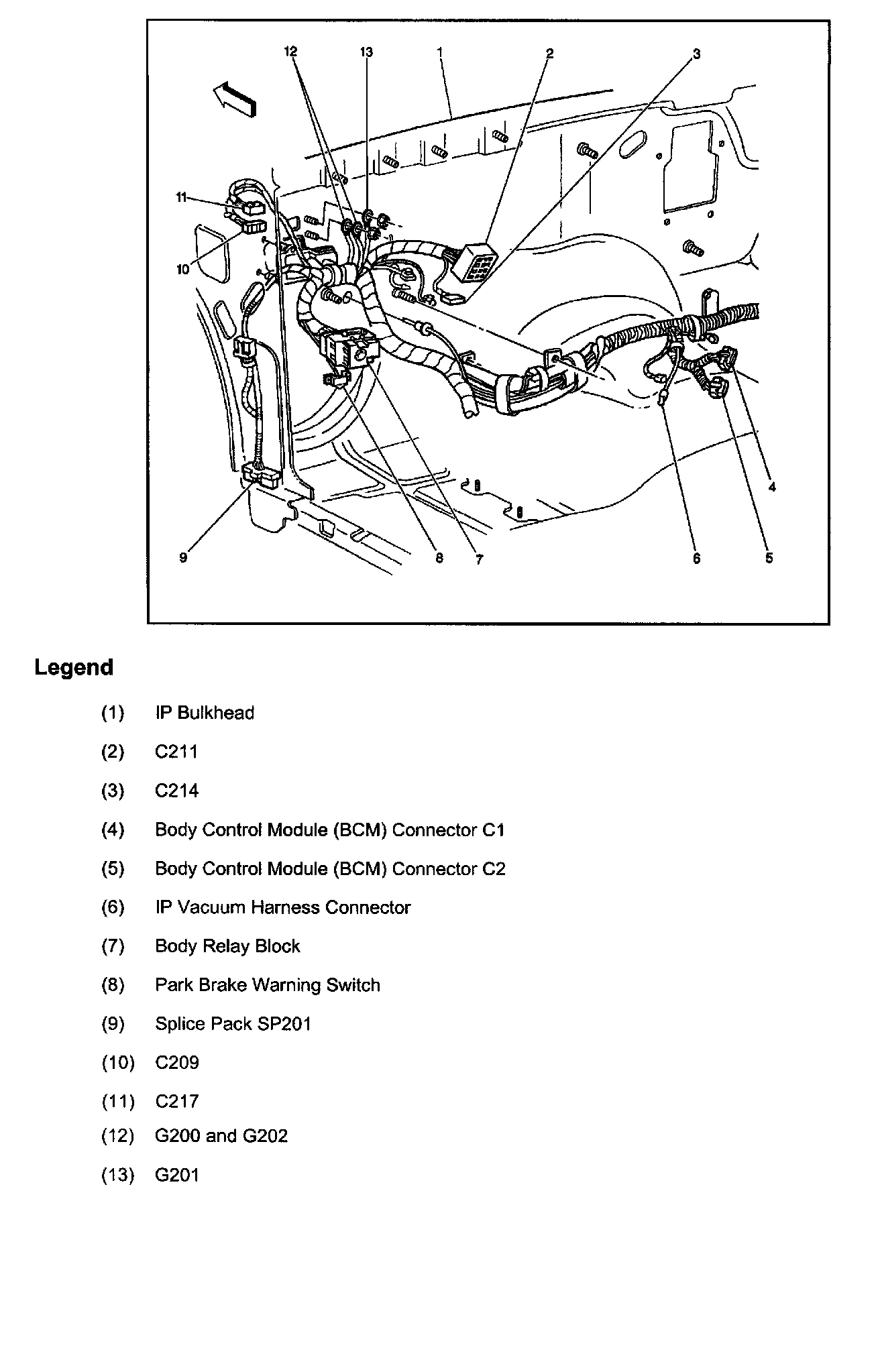

Instrument Panel, LF:



Instrument Panel Details, RH:

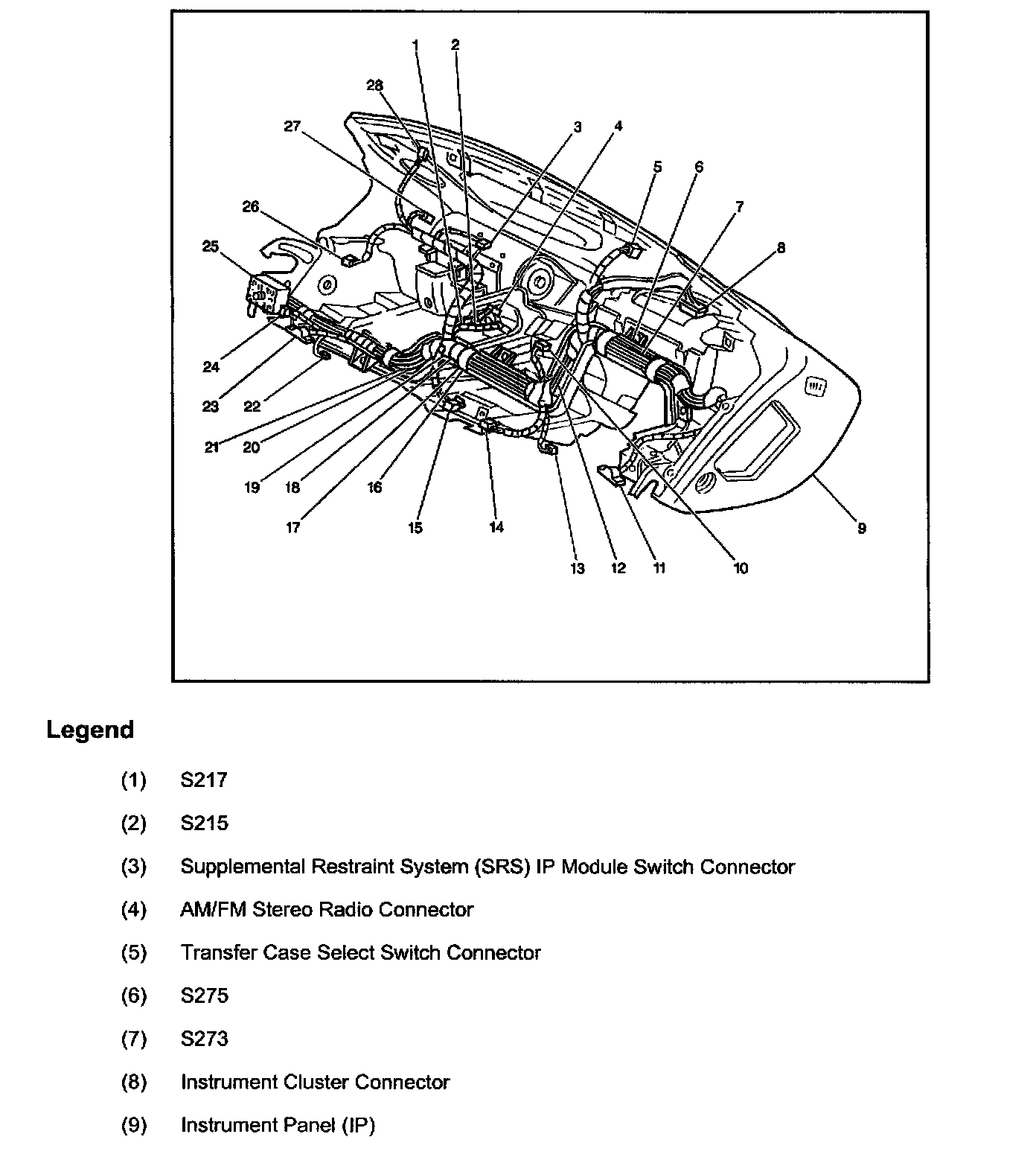

IP Harness Composite View (w/o Auto A/C) Part 1 Of 2:

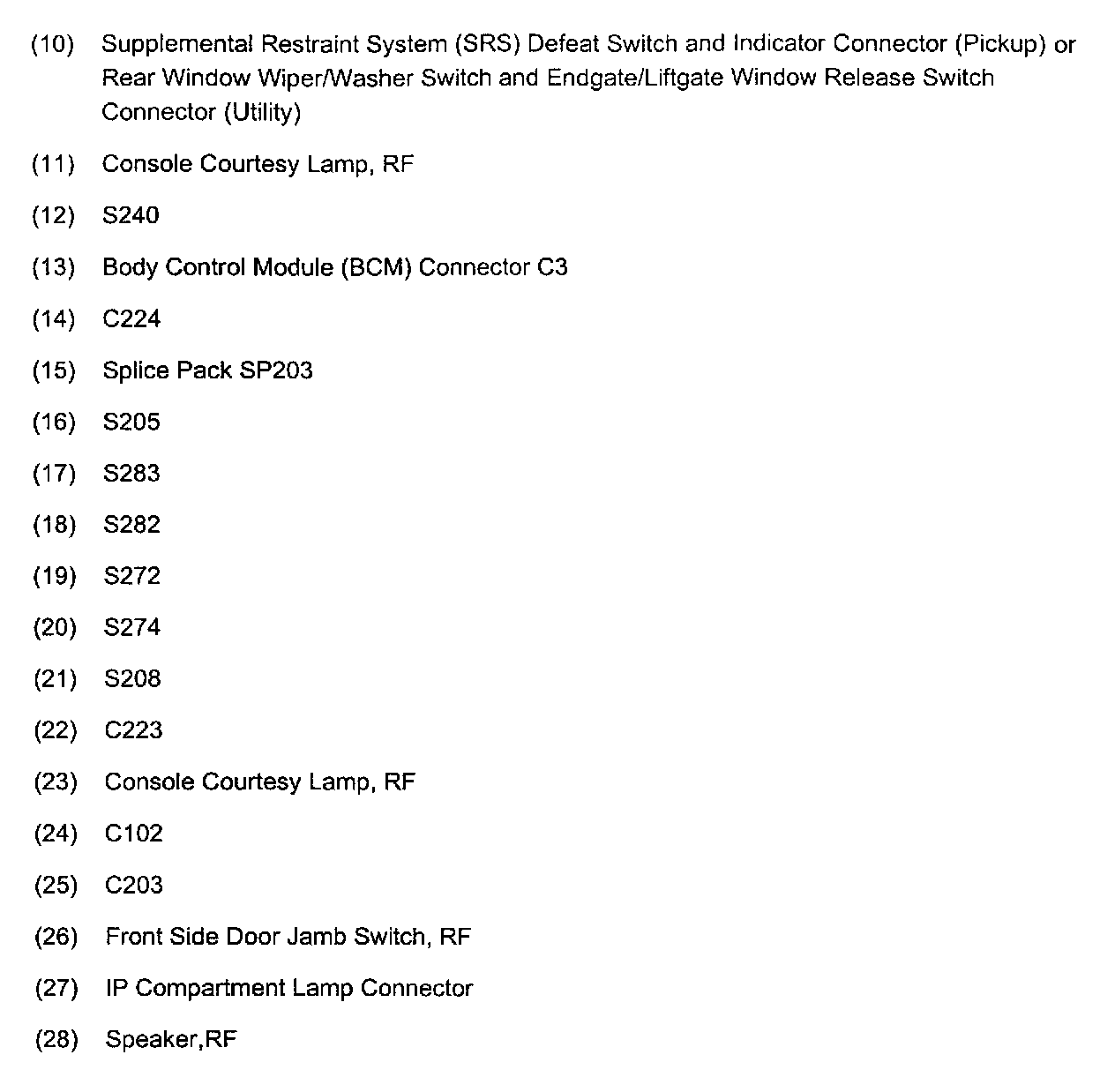

IP Harness Composite View (w/o Auto A/C) Part 2 Of 2:
