Transfer Shift Arm Assembly: Disassembly

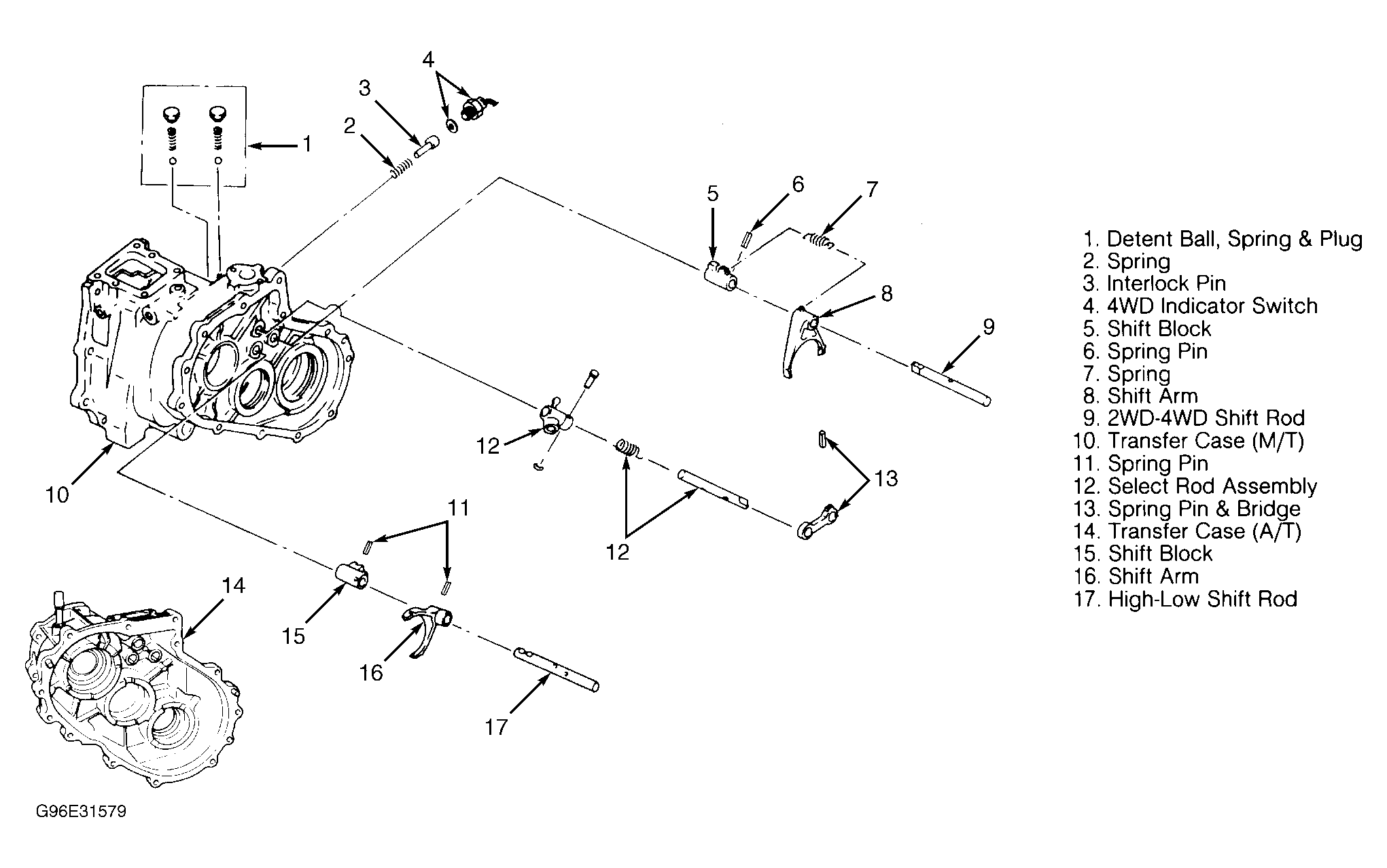

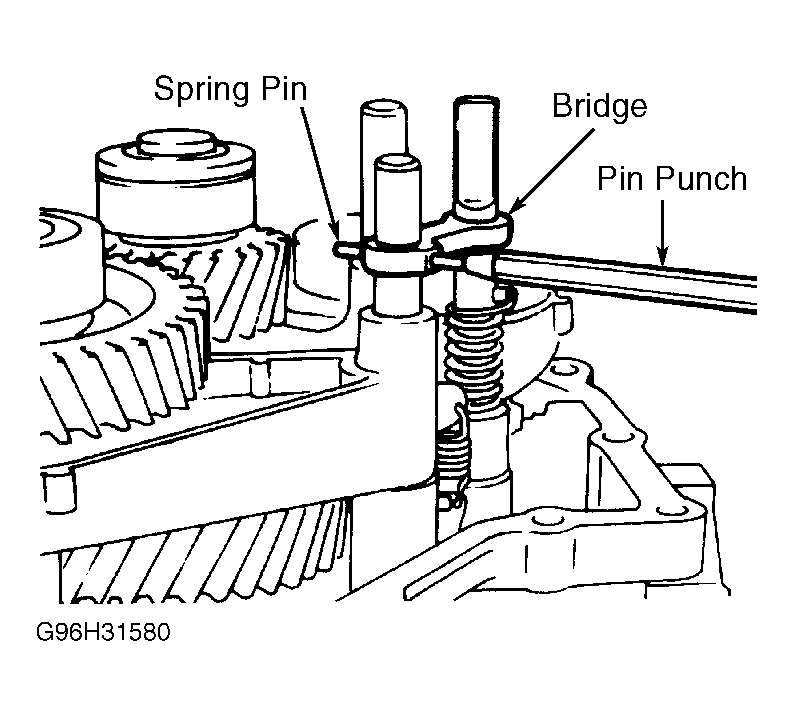

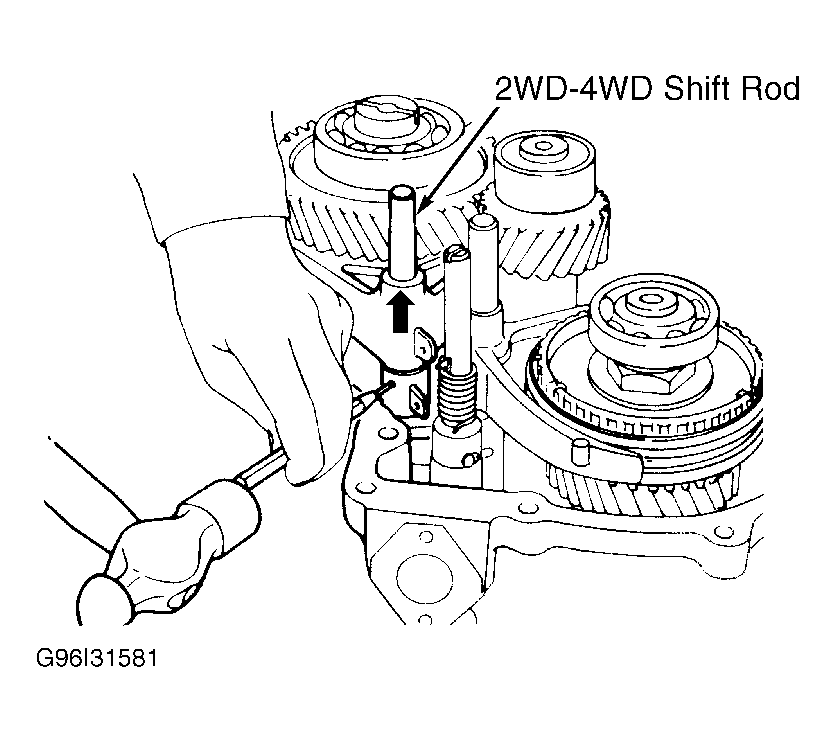

  1. Remove plugs, springs and detent balls. See Figure. Use pin punch to remove spring pin from bridge. Remove bridge. See Figure. Engage 2WD-4WD sleeve with front output gear. Remove spring pin and 2WD-4WD shift rod and shift arm. See Figure.

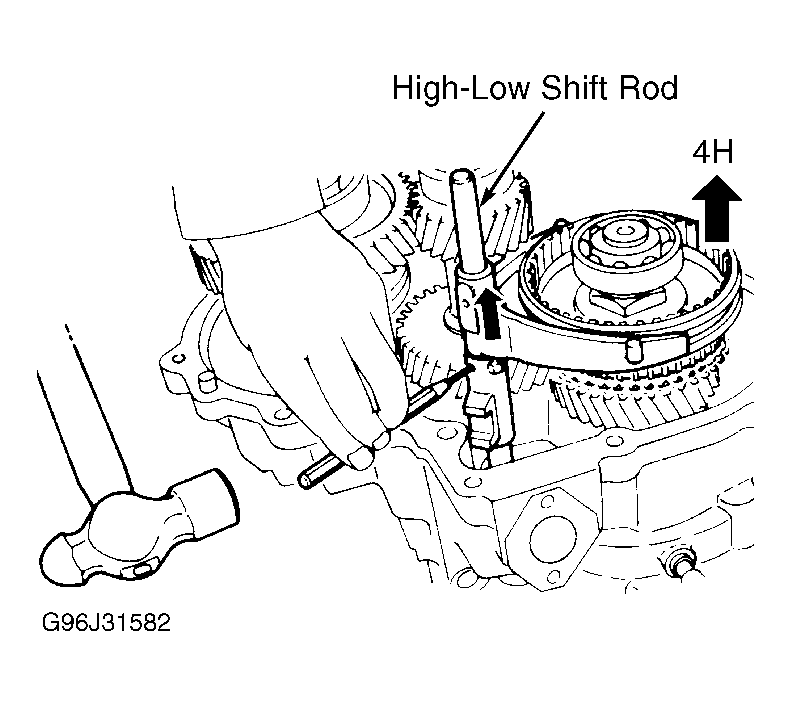

  2. Remove shift arm and block. Remove 4WD indicator switch. Remove interlock pin and spring with magnetic tool. Remove select rod assembly. Using pin punch, remove pin from shift arm and shift block. Remove high-low shift rod from transfer case. See Figure. Remove shift arm, shift block from transfer case.
