Transfer Shift Arm Assembly: Reassembly

  1. Place shift block in transfer case. Install shift blocks and arm onto high-low shift rod. Engage high-low sleeve with 4H side facing upward and install spring pin into shift block. See Fig 4.
  2. Engage hi-low sleeve with 4H side. Install spring pin into shift block and shift arm. See Fig 5. Install select rod assembly. Install spring. Engage hi-low sleeve with 4H side and install interlock pin in proper direction. Install shift rod with interlock pin pushed in.
  3. Install 4WD indicator switch. Tighten to specification. See TORQUE SPECIFICATIONS . Install shift block, shift arm, 2WD-4WD shift rod, and spring. Engage 2WD-4WD sleeve with 4WD side and install spring pin with punch. Install remaining spring pin and bridge. Install detent ball, spring and plug. Tighten plug to specification. See TORQUE SPECIFICATIONS .
Fig 1: Exploded View Of Transfer Shift Arm Assembly
G96E31579Courtesy of ISUZU MOTOR CO.
Fig 2: Removing Spring Pin & Bridge
G96H31580Courtesy of ISUZU MOTOR CO.
Fig 3: Removing & Installing 2WD-4WD Shift Rod
G96I31581Courtesy of ISUZU MOTOR CO.
Fig 4: Removing & Installing High-Low Shift Rod
G96J31582Courtesy of ISUZU MOTOR CO.

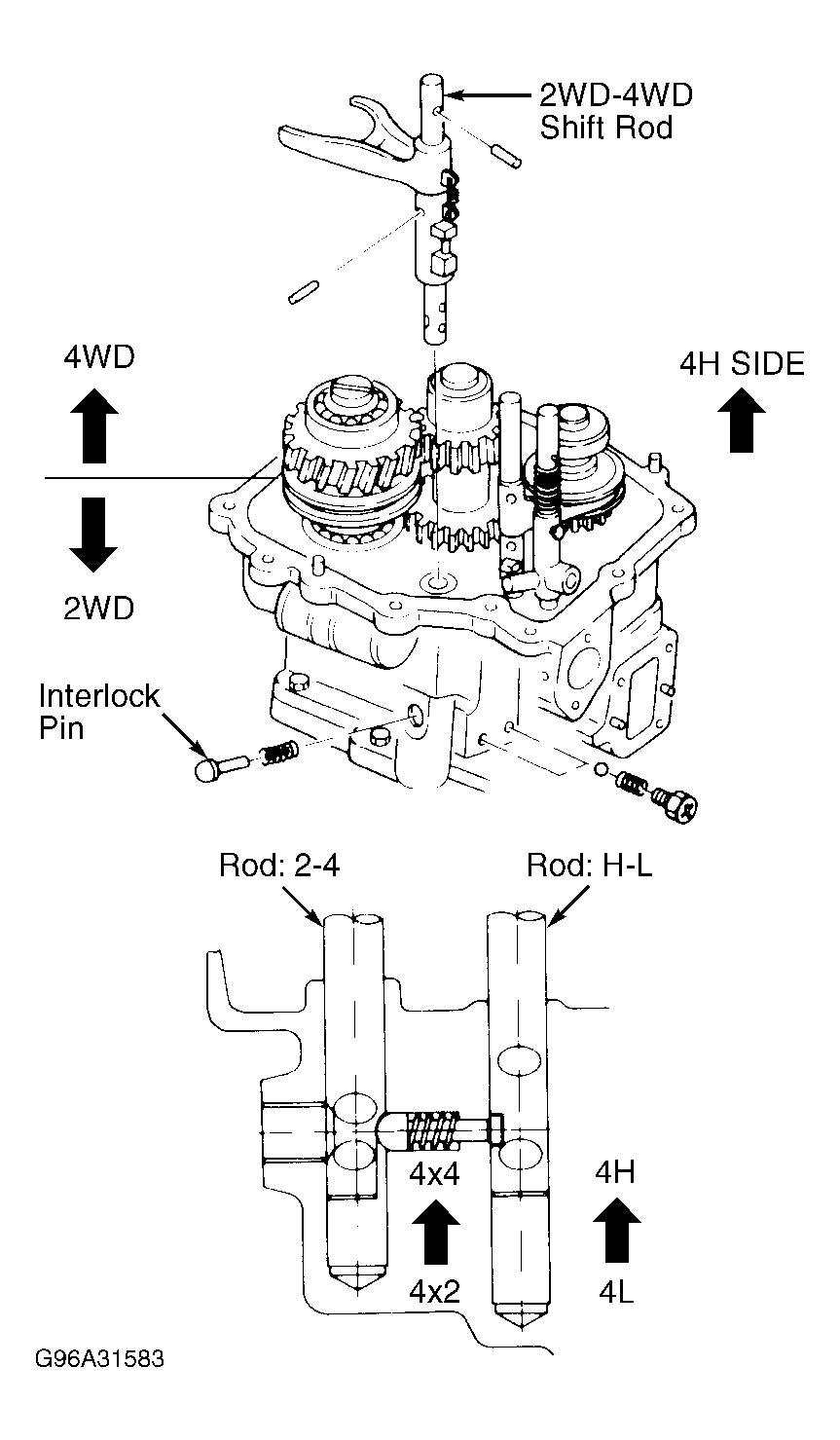

Fig 5: Installing 2WD-4WD Sleeve Spring Pin
G96A31583Courtesy of ISUZU MOTOR CO.
