Windows

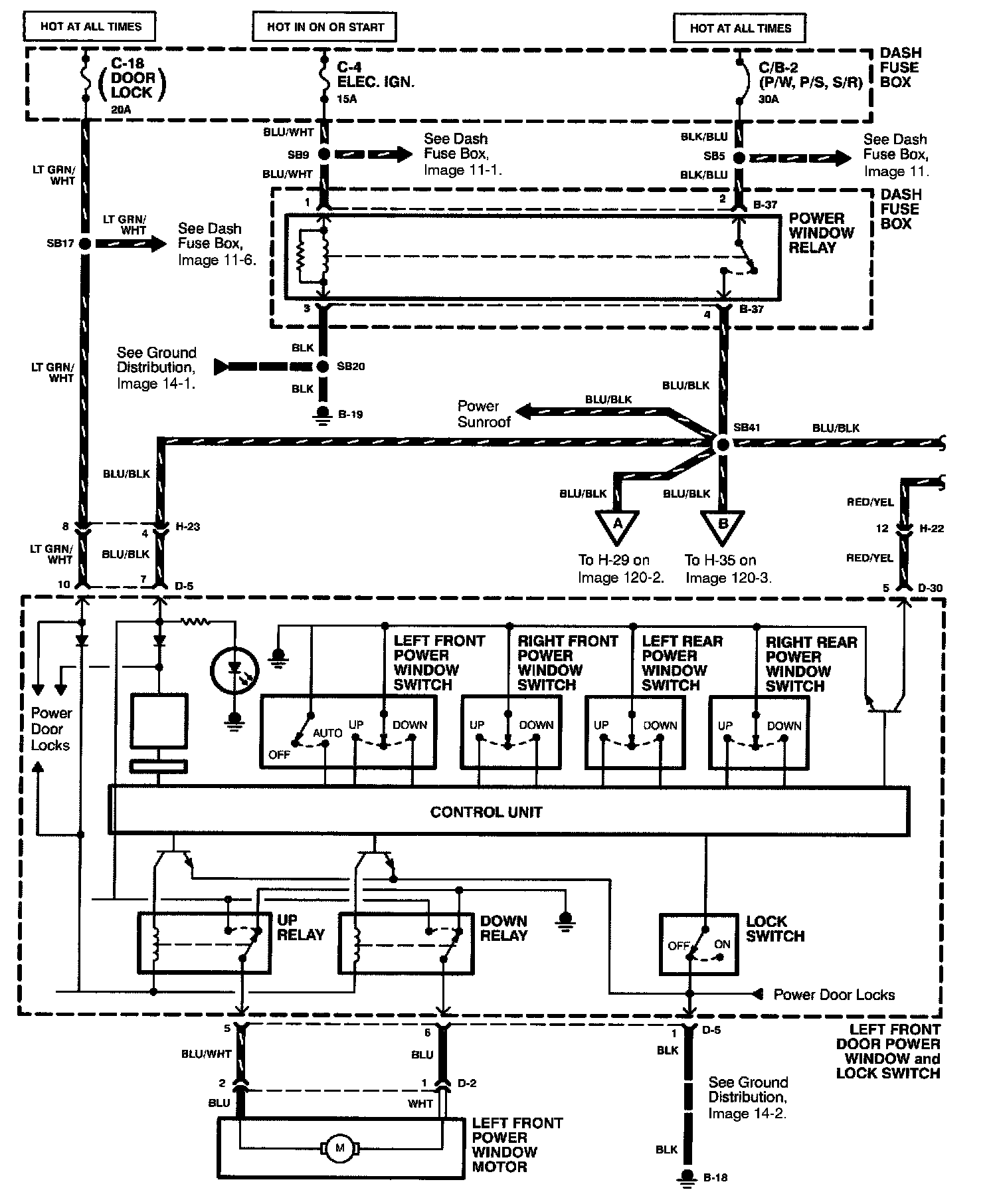

Power Windows (1 Of 4) Image 120:

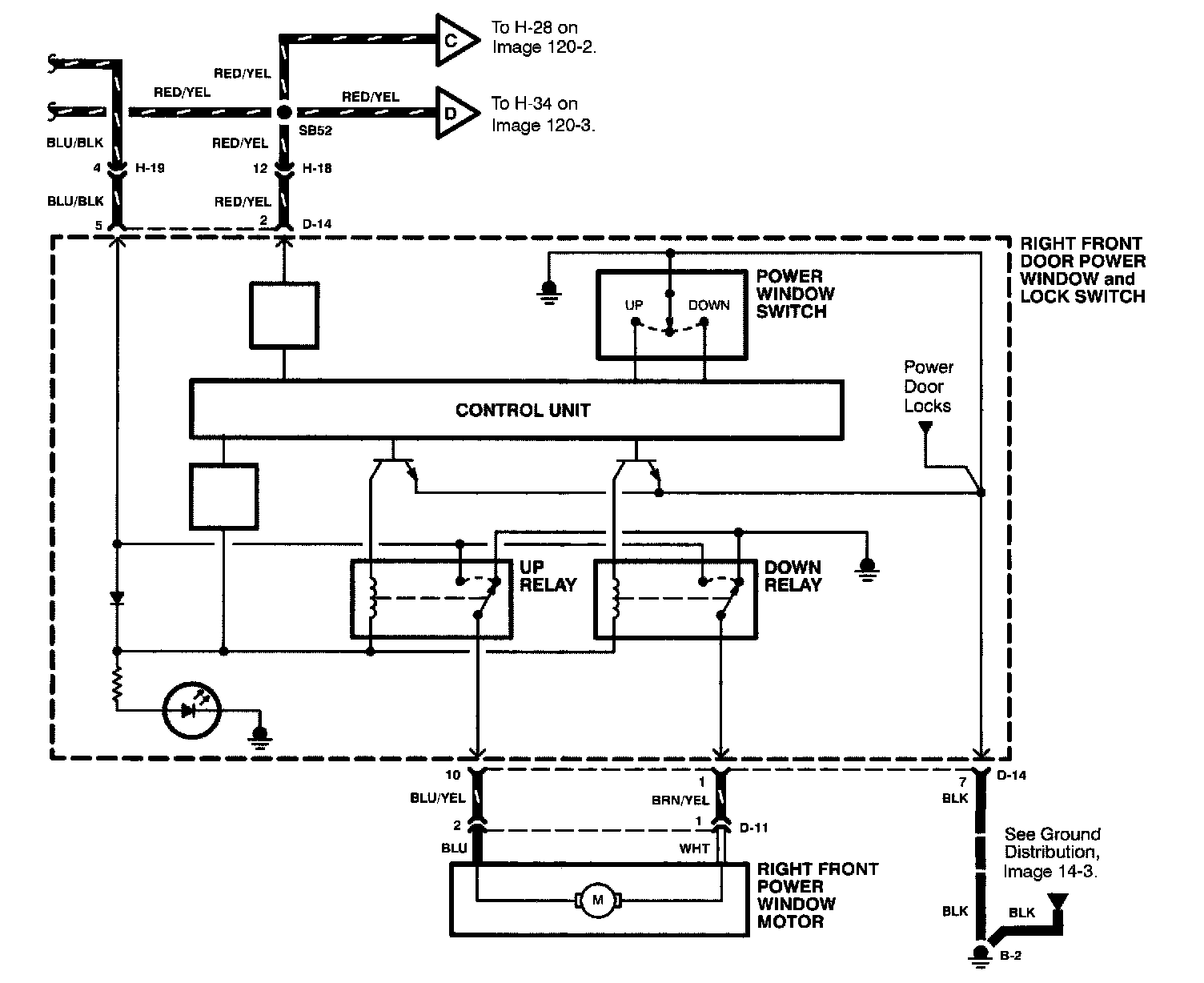

Power Windows (2 Of 4) Image 120-1:

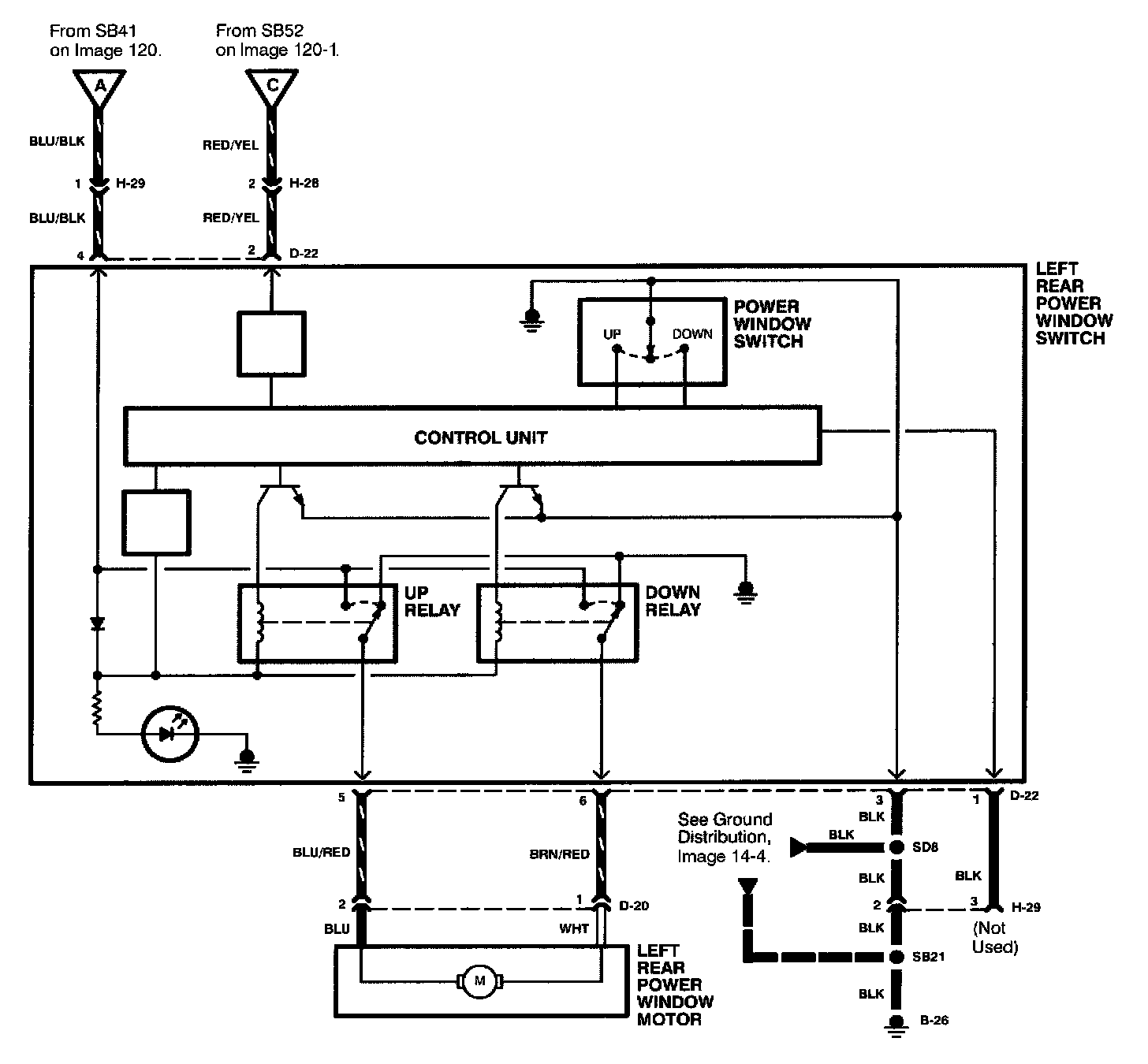

Power Windows (3 Of 4) Image 120-2:

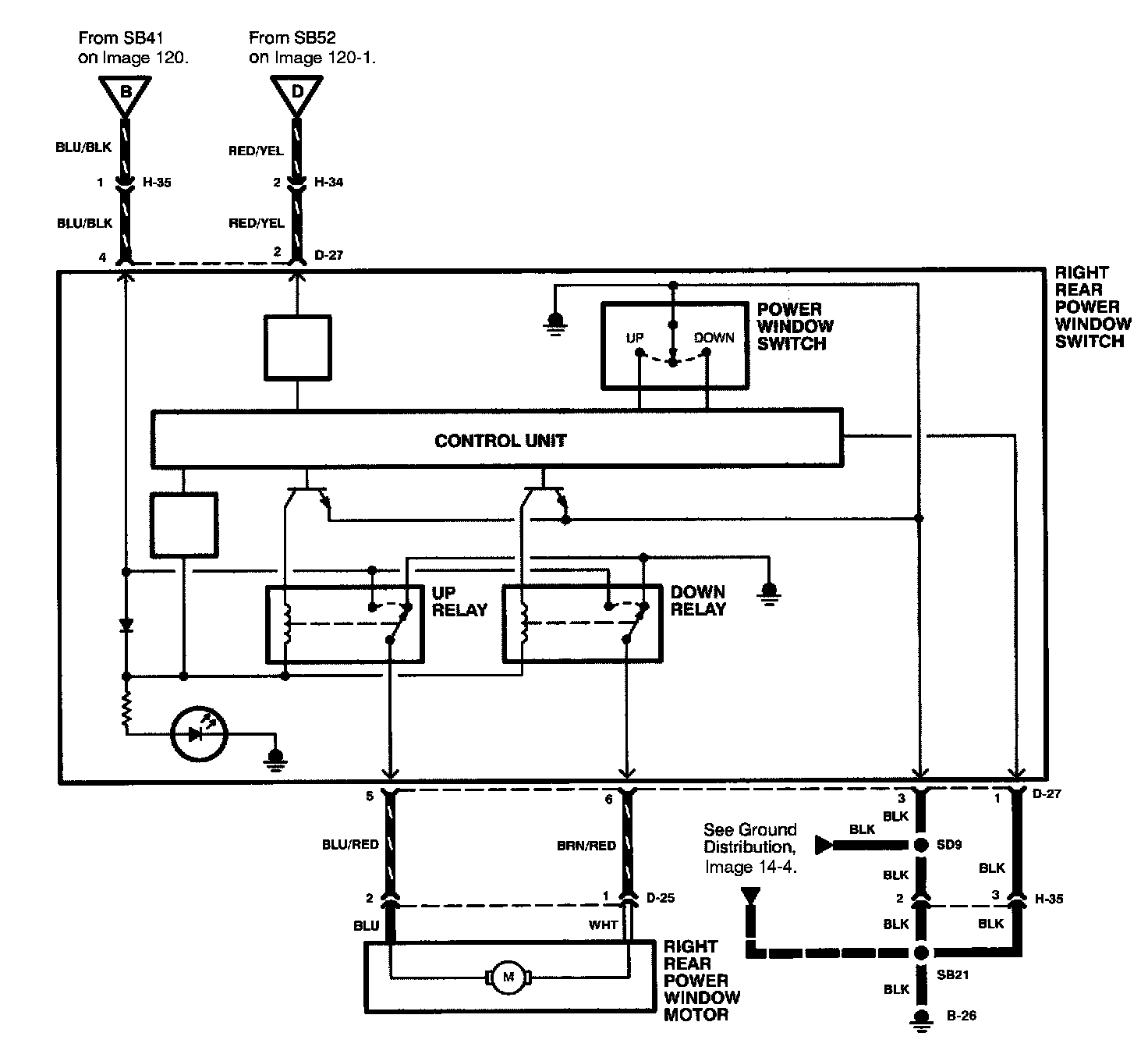

Power Windows (4 Of 4) Image 120-3:
