Diode: Locations

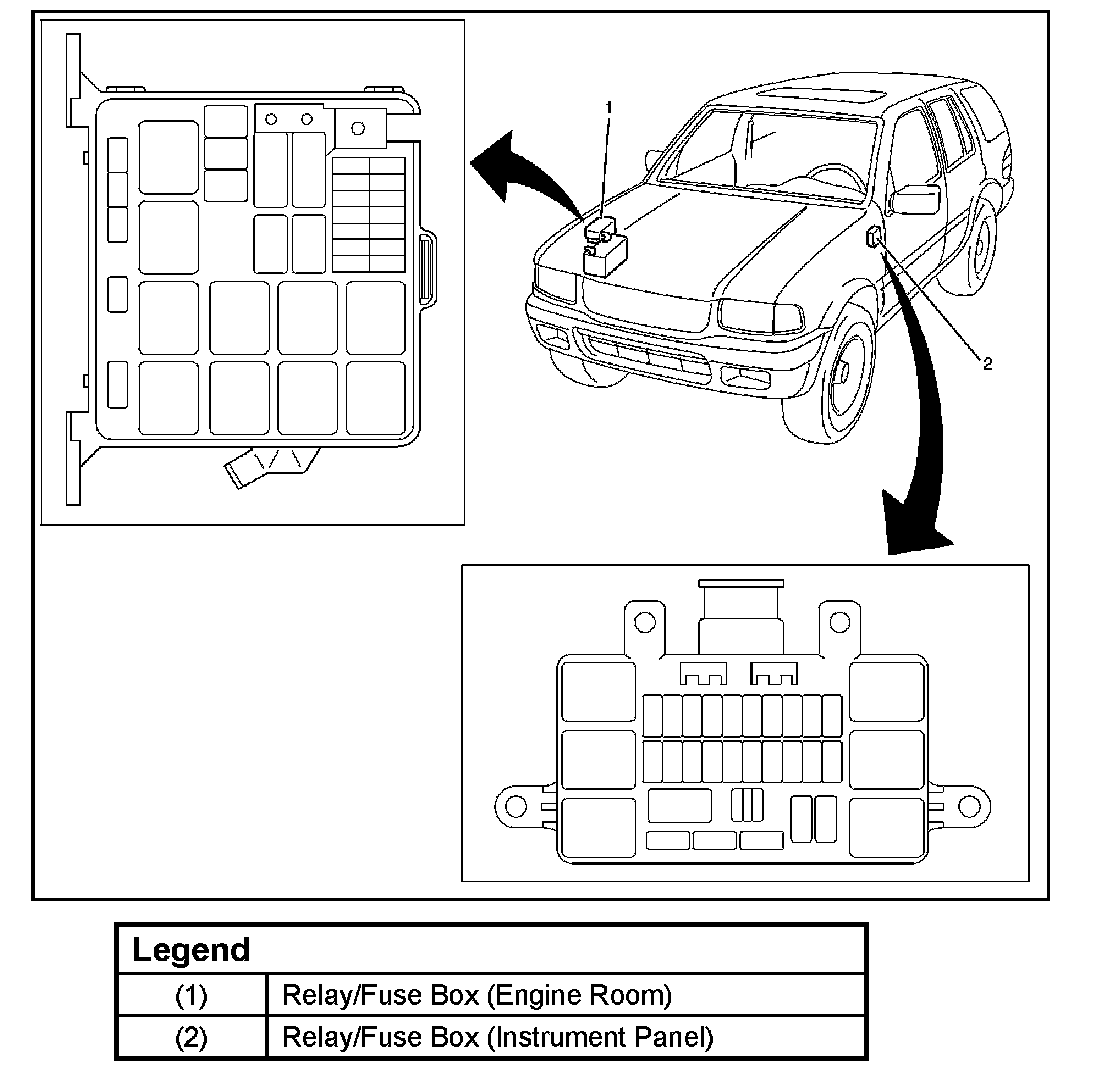

Relay/Fuse Box:

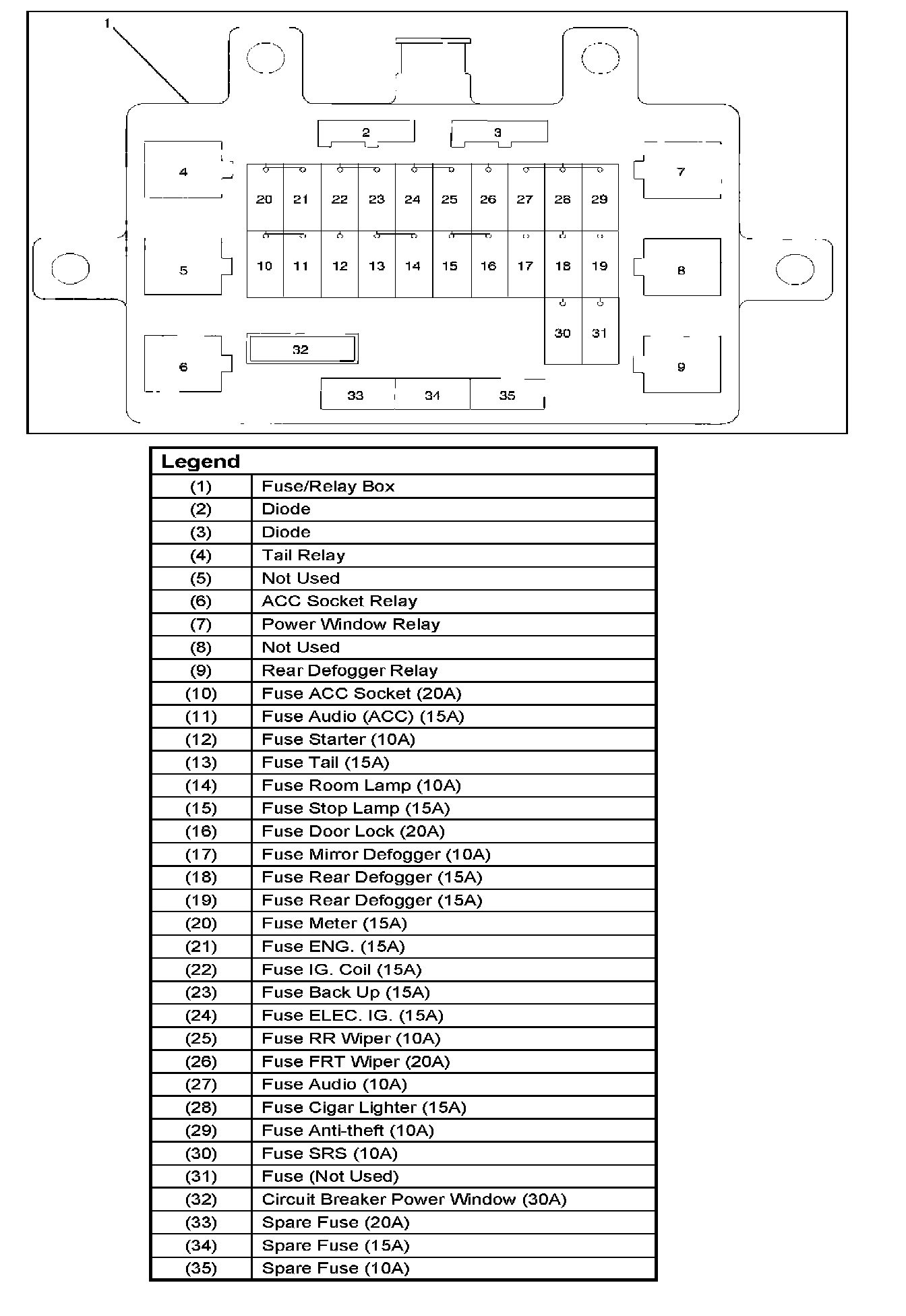

Relay/Fuse Box (Instrument Panel):

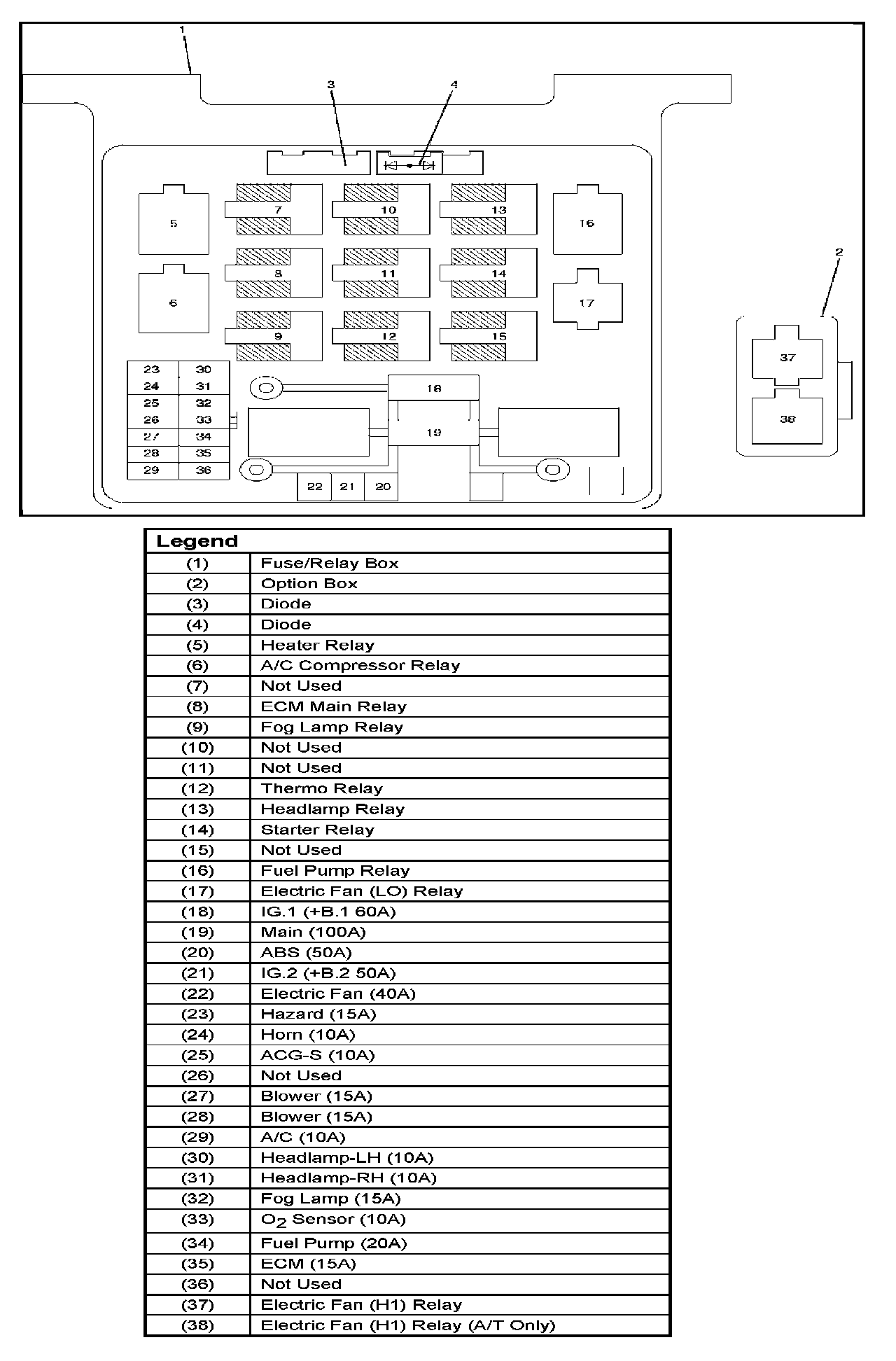

Relay/Fuse Box (L4 Engine Room):

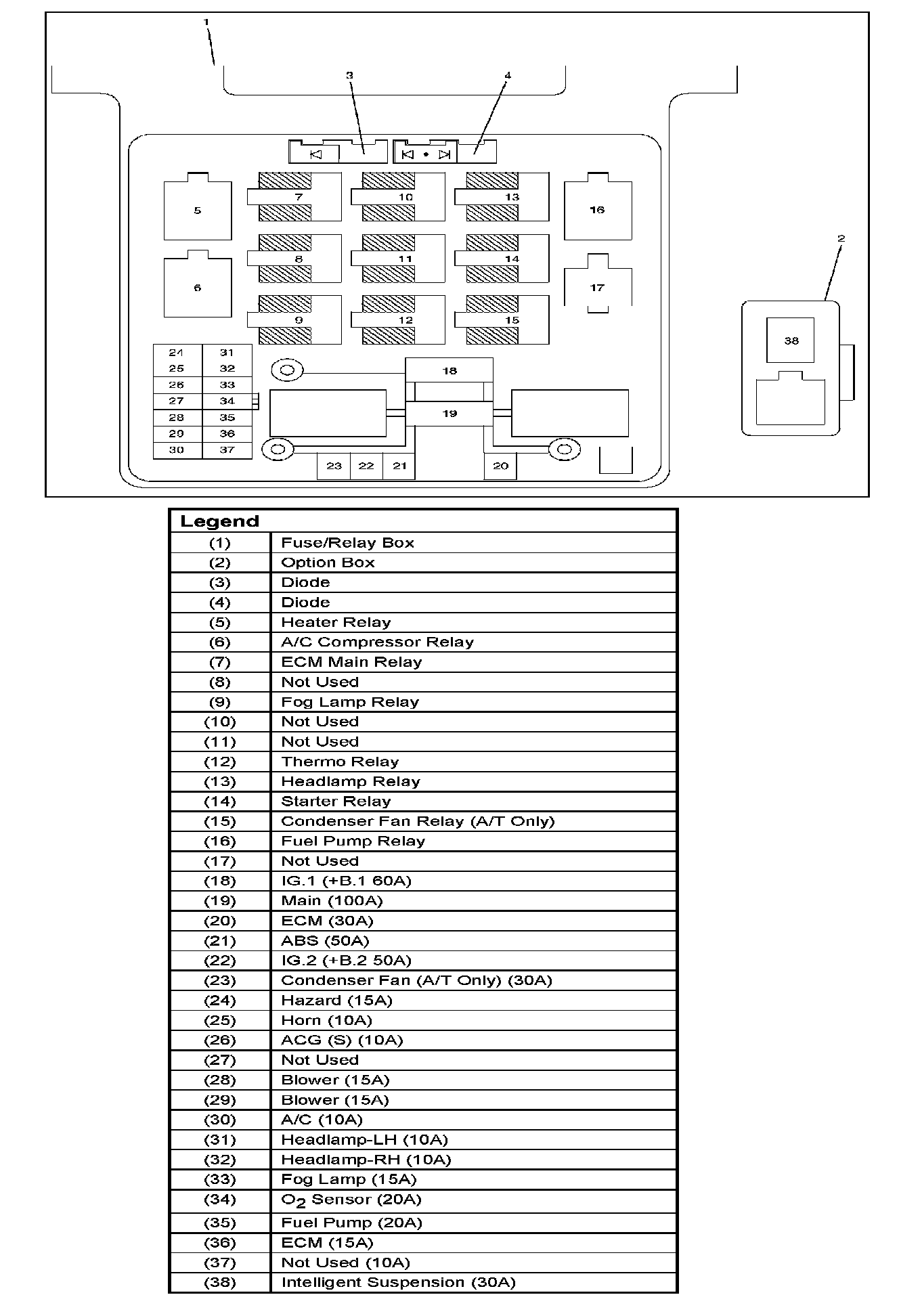

Relay/Fuse Box (V6 Engine Room):

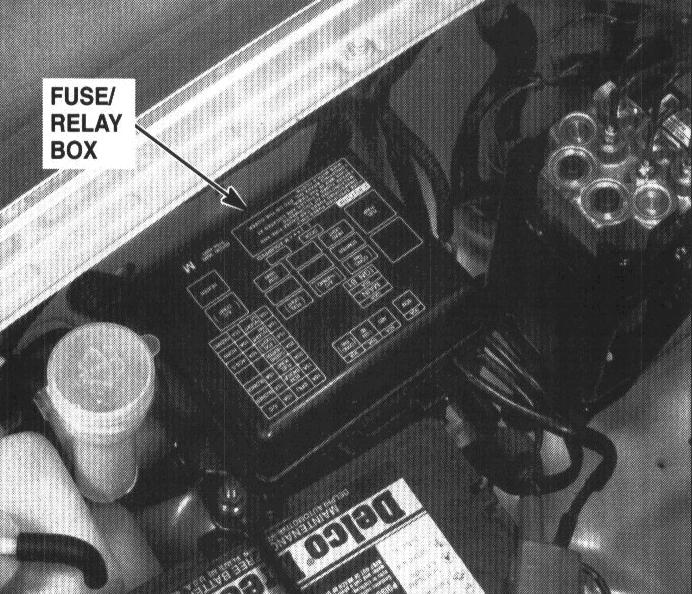

14 - Right Side Of Engine 3.2L Compartment:
